Transfer Drive Case (8 Speed Auto Trans Zf 8Hp70 4Wd, With 1 Speed Transfer Case, 8 Speed Auto...

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Transfer Drive Case (8 Speed Auto Trans ZF 8HP70 4WD, With 1 Speed Transfer Case, 8 Speed Auto...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106126 BOLT $0.52 IN STOCK
Photo Part No Description Price (each) Stock
TYC500140 CLIP $1.42 To Order
Photo Part No Description Price (each) Stock
FT110356 SCREW $2.41 To Order
Photo Part No Description Price (each) Stock
LR050773 TRANSFER BOX $4,314.44 To Order
LR078932 TRANSFER BOX $5,280.90 To Order
LR089529 TRANSFER BOX $5,177.32 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR042384 TUBE - TRANSMISSION VENTILATION $45.49 To Order
LR080753 TUBE - TRANSMISSION VENTILATION $66.83 To Order
Photo Part No Description Price (each) Stock
LR010763 TUBE - TRANSMISSION VENTILATION $38.26 To Order
View All

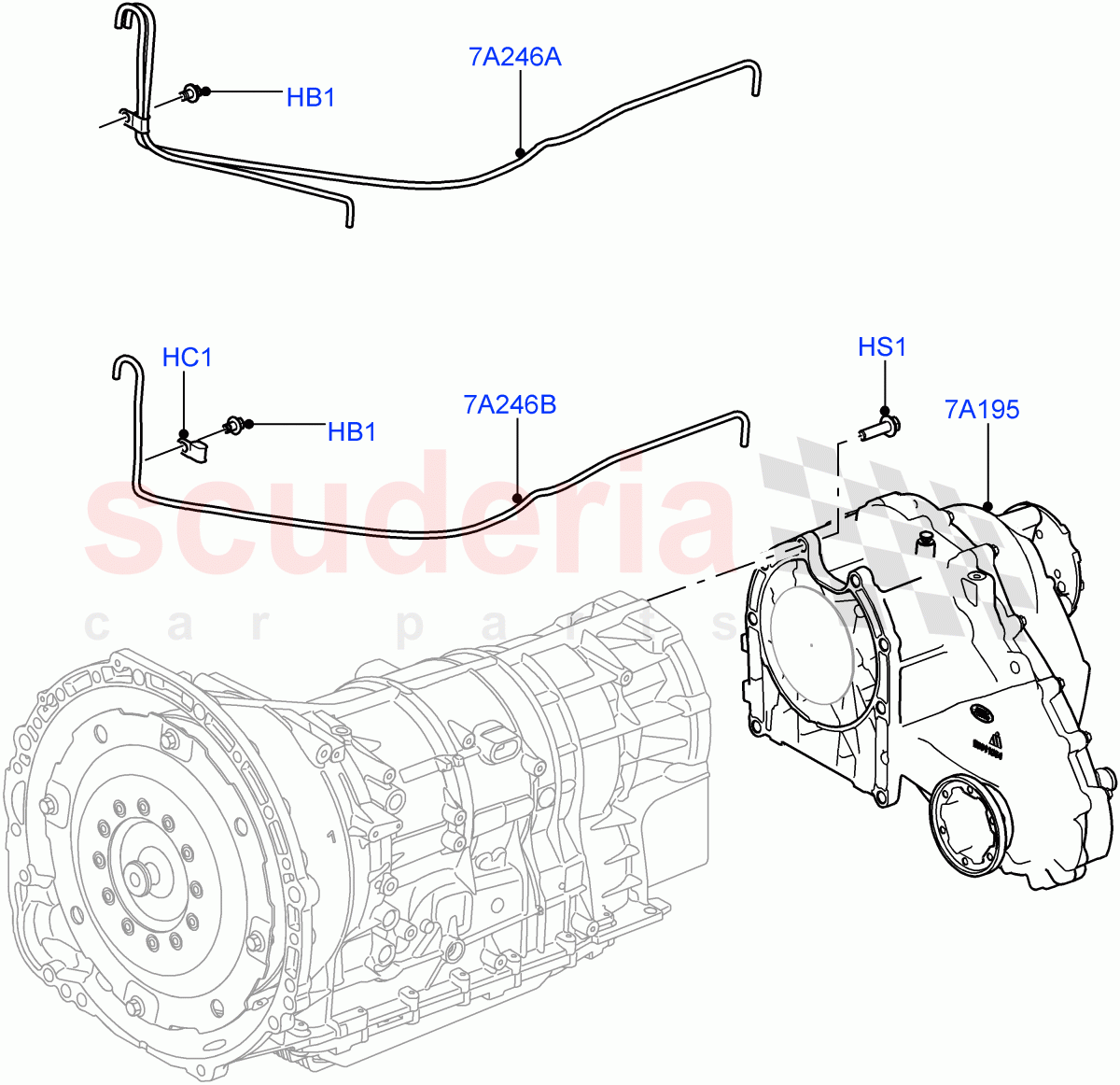

Transfer Drive Case (8 Speed Auto Trans ZF 8HP70 4WD, With 1 Speed Transfer Case, 8 Speed Auto Trans ZF 8HP45) ((V) FROMEA000001, (V) TOGA999999) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS106126
BOLT
Hexagonal Head, M6 x 12MM / From: EA000001
IN STOCK 		$0.52 1
HC1 TYC500140
CLIP
3.0L DOHC GDI SC V6 PETROL / Breather Pipe / From: EA000001 		$1.42 1
HS1 FT110356
SCREW
Hexagonal Head, M10 x 35MM / From: EA000001 		$2.41 8
7A195 LR050773
TRANSFER BOX
From: EA000001 / To: GA786413 		$4,314.44 1
7A195 LR078932
TRANSFER BOX
From: GA786414 / To: GA842910 		$5,280.90 1
7A195 LR089529
TRANSFER BOX
From: GA842911 / To: GA842912 		$5,177.32 1
7A195 LR117533
TRANSFER BOX
From: GA842913 		$4,500.03 1
7A246A LR042384
TUBE - TRANSMISSION VENTILATION
3.0 V6 Diesel / Gearbox, Includes Bracket, Transfer Box / From: EA000001 / To: GA833368 		$45.49 1
7A246A LR080753
TUBE - TRANSMISSION VENTILATION
3.0 V6 Diesel / Gearbox, Includes Bracket, Transfer Box / From: GA833369 		$66.83 1
7A246B LR010763
TUBE - TRANSMISSION VENTILATION
3.0L DOHC GDI SC V6 PETROL / Transfer Box / From: EA000001 		$38.26 1
