Name: Rear Exhaust System (3.0 V6 Diesel, Proconve L6 Emissions, Stage V Plus DPF, L6 Diesel Emissions) ((V) FROMAA000001)
Rating: 4.6 (1 reviews)

Rear Exhaust System (3.0 V6 Diesel, Proconve L6 Emissions, Stage V Plus DPF, L6 Diesel Emissions) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Rear Exhaust System (3.0 V6 Diesel, Proconve L6 Emissions, Stage V Plus DPF, L6 Diesel Emissions)...

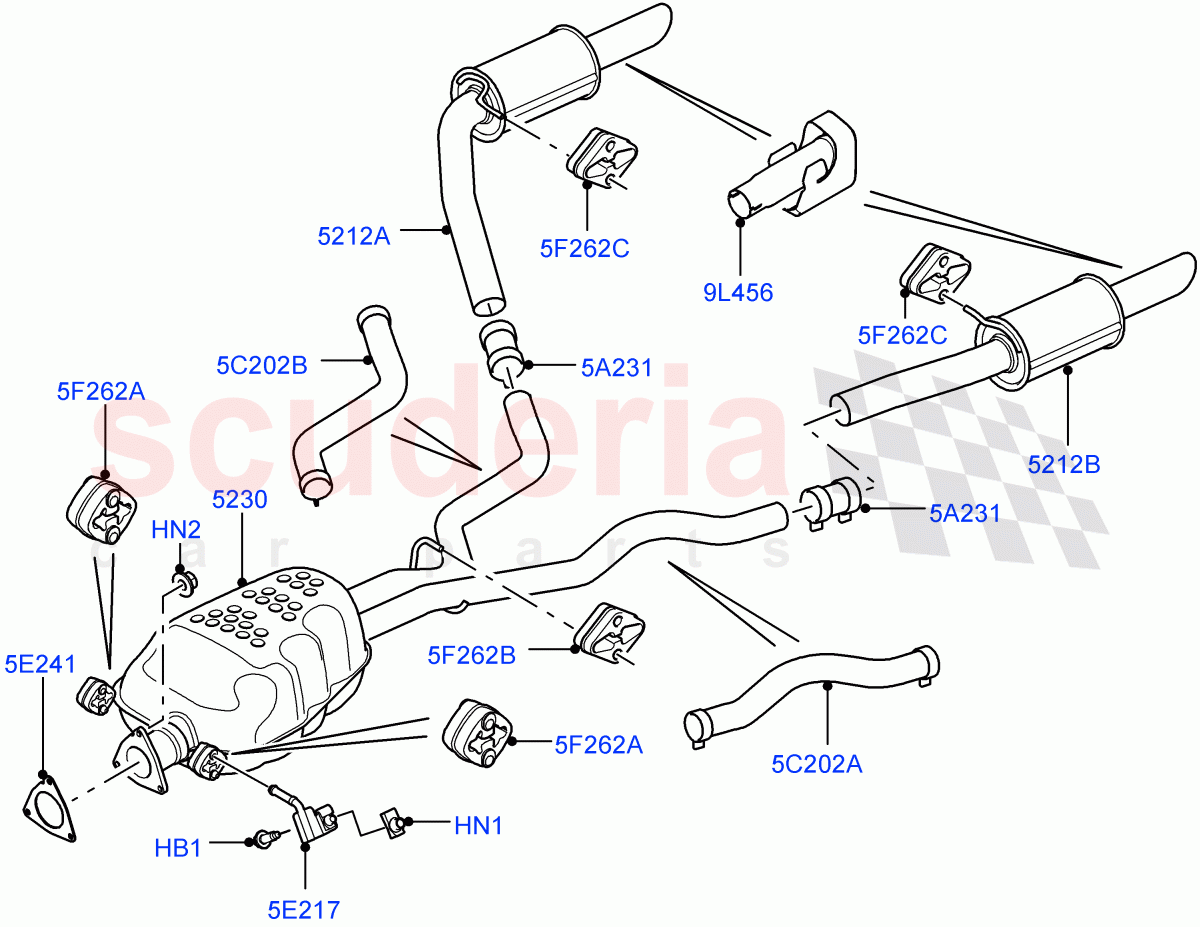

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYH500170	M8 NUT CLIP	$2.01	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FX108046	NUT - LOCKING	$0.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR015856	MUFFLER - FRONT	$1,041.13	To Order
	LR039887	MUFFLER - FRONT	$1,201.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015922	SILENCER	$521.11	To Order
	LR039880	SILENCER	$607.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015923	SILENCER	$521.11	To Order
	LR039885	SILENCER	$607.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015372	CLAMP - EXHAUST	$82.85	To Order
	LR048120	CLAMP - EXHAUST	$153.37	To Order
	LR048121	CLAMP - EXHAUST	$153.37	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	KVU500320	BRACKET - EXHAUST PIPE MOUNTING	$20.77	To Order

Photo	Part No	Description	Price (each)	Stock
	WCM500120	GASKET - EXHAUST PIPE	$12.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR050947	PIPE - EXHAUST	$615.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050948	PIPE - EXHAUST	$562.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017444	INSULATOR - RUBBER	$26.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014155	INSULATOR - RUBBER	$37.80	To Order

Photo	Part No	Description	Price (each)	Stock
	WCS000150	INSULATOR - RUBBER	$24.00	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM / From: AA000001 IN STOCK	$2.29	1
HN1	RYH500170	M8 NUT CLIP IN STOCK	RYH500170 M8 NUT CLIP M8 X 1.25, Nut "U" Spring / From: AA000001 IN STOCK	$2.01	1
HN2	FX108046	NUT - LOCKING IN STOCK	FX108046 NUT - LOCKING Centre, M8 / From: AA000001 IN STOCK	$0.40	3
5A231	LR015372	CLAMP - EXHAUST	LR015372 CLAMP - EXHAUST 60MM, Rear / From: AA000001 / To: CA631107	$82.85	2
5A231	LR048120	CLAMP - EXHAUST	LR048120 CLAMP - EXHAUST LH, 55-60MM Adaptor / From: AA000001 / To: CA631107	$153.37	1
5A231	LR048121	CLAMP - EXHAUST	LR048121 CLAMP - EXHAUST RH, 55-60MM Adaptor / From: AA000001 / To: CA631107	$153.37	1
5A231	LR015370	CLAMP	LR015370 CLAMP 55MM, Rear / From: CA631108	$105.12	2
5C202A	LR050947	PIPE - EXHAUST	LR050947 PIPE - EXHAUST LH, 55-60MM Adaptor / From: AA000001	$615.43	1
5C202B	LR050948	PIPE - EXHAUST	LR050948 PIPE - EXHAUST RH, 55-60MM Adaptor / From: AA000001	$562.22	1
5E217	KVU500320	BRACKET - EXHAUST PIPE MOUNTING	KVU500320 BRACKET - EXHAUST PIPE MOUNTING Centre / From: AA000001	$20.77	1
5E241	WCM500120	GASKET - EXHAUST PIPE IN STOCK	WCM500120 GASKET - EXHAUST PIPE Centre / From: AA000001 IN STOCK	$12.57	1
5F262A	LR017444	INSULATOR - RUBBER	LR017444 INSULATOR - RUBBER Centre / From: AA000001	$26.10	2
5F262B	LR014155	INSULATOR - RUBBER	LR014155 INSULATOR - RUBBER From: AA000001	$37.80	1
5F262C	WCS000150	INSULATOR - RUBBER	WCS000150 INSULATOR - RUBBER Rear / From: AA000001	$24.00	2
5212A	LR015922	SILENCER	LR015922 SILENCER RH, 60MM, Rear / From: AA000001 / To: CA631106	$521.11	1
5212A	LR039880	SILENCER	LR039880 SILENCER RH, 55MM, Rear / From: CA631107	$607.42	1
5212B	LR015923	SILENCER	LR015923 SILENCER LH, 60MM, Rear / From: AA000001 / To: CA631106	$521.11	1
5212B	LR039885	SILENCER	LR039885 SILENCER LH, 55MM, Rear / From: CA631107	$607.42	1
5230	LR015856	MUFFLER - FRONT	LR015856 MUFFLER - FRONT 60MM, Centre / From: AA000001 / To: CA631107	$1,041.13	1
5230	LR039887	MUFFLER - FRONT	LR039887 MUFFLER - FRONT 55MM, Centre / From: CA631108	$1,201.17	1

Rear Exhaust System (3.0 V6 Diesel, Proconve L6 Emissions, Stage V Plus Dpf, L6 Diesel Emissions)...

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Rear Exhaust System (3.0 V6 Diesel, Proconve L6 Emissions, Stage V Plus DPF, L6 Diesel Emissions)...
