Name: Front Exhaust System (3.0 V6 Diesel, Proconve L6 Emissions, Stage V Plus DPF, L6 Diesel Emissions) ((V) FROMAA000001)
Rating: 5.0 (1 reviews)

Front Exhaust System (3.0 V6 Diesel, Proconve L6 Emissions, Stage V Plus DPF, L6 Diesel Emissions) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Front Exhaust System (3.0 V6 Diesel, Proconve L6 Emissions, Stage V Plus DPF, L6 Diesel Emissions)...

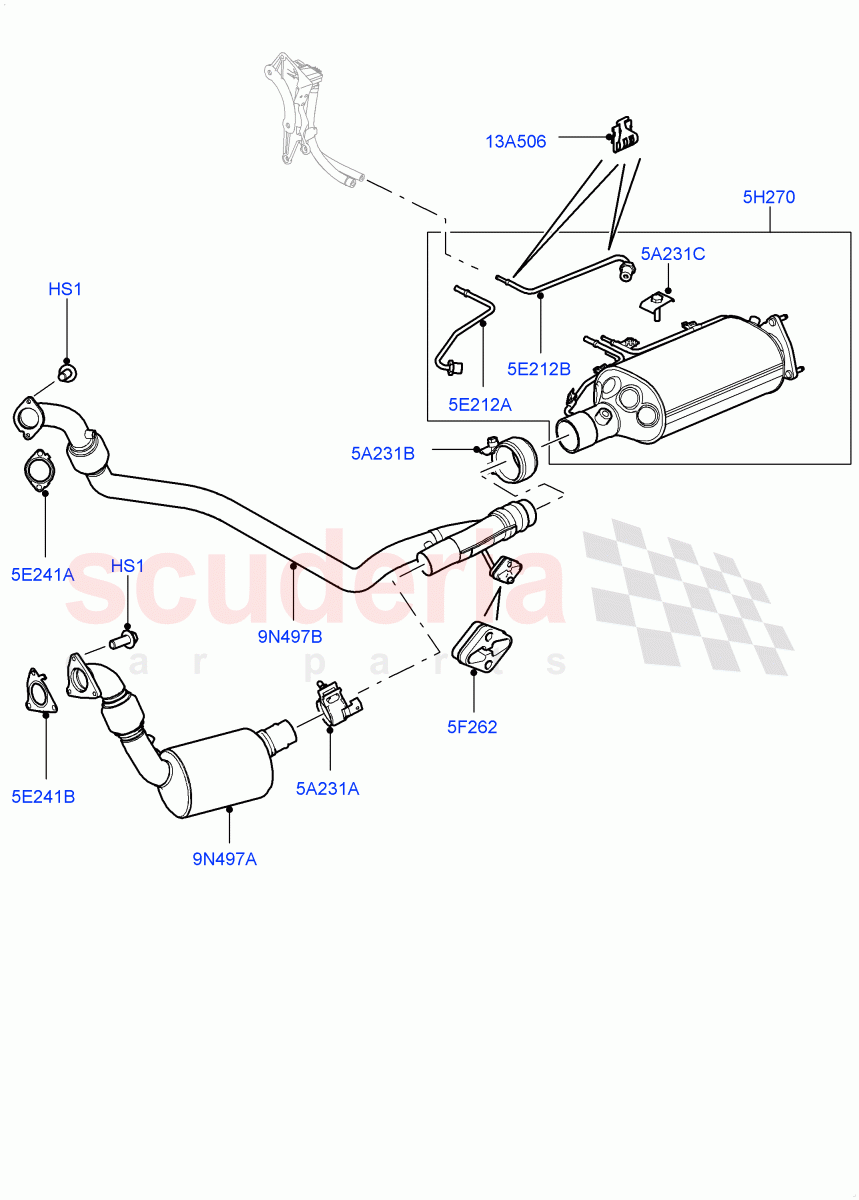

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	WYP000025	SCREW	$2.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014155	INSULATOR - RUBBER	$37.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013742	FILTER - DIESEL PARTICLE	$4,165.34	To Order
	LR056206	FILTER - DIESEL PARTICLE	$4,143.42	To Order

Photo	Part No	Description	Price (each)	Stock
	YQR000050	CLIP - WIRING	$0.79	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR009430	CLAMP	$38.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007465	CLAMP	$49.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017445	CLIP - SPECIAL	$26.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015400	CATALYTIC CONVERTER	$64.33	To Order
	LR056207	FILTER - DIESEL PARTICLE	$70.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016232	FILTER - DIESEL PARTICLE	$62.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016621	GASKET - EXHAUST PIPE	$20.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016619	GASKET - EXHAUST PIPE	$21.99	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR013739	PIPE - EXHAUST	$6,093.42	To Order
	LR030330	PIPE - EXHAUST	$2,013.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013738	PIPE - EXHAUST	$476.01	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	WYP000025	SCREW	WYP000025 SCREW Front, Hexagonal Head, M8 X 20MM / From: AA000001	$2.95	5
5A231A	LR009430	CLAMP	LR009430 CLAMP 55MM, Front / From: AA000001	$38.65	1
5A231B	LR007465	CLAMP	LR007465 CLAMP 60MM, Centre / From: AA000001	$49.68	1
5A231C	LR017445	CLIP - SPECIAL	LR017445 CLIP - SPECIAL From: AA000001	$26.49	1
5E212A	LR015400	CATALYTIC CONVERTER	LR015400 CATALYTIC CONVERTER Inlet, Pipe, Pressure / From: AA000001 / To: DA999999	$64.33	1
5E212A	LR056207	FILTER - DIESEL PARTICLE	LR056207 FILTER - DIESEL PARTICLE Inlet, Pipe, Pressure / From: EA000001	$70.92	1
5E212B	LR016232	FILTER - DIESEL PARTICLE	LR016232 FILTER - DIESEL PARTICLE Long, Outlet, Pipe, Pressure / From: AA000001	$62.25	1
5E241A	LR016621	GASKET - EXHAUST PIPE	LR016621 GASKET - EXHAUST PIPE RH, Exhaust pipe / From: AA000001	$20.64	1
5E241B	LR016619	GASKET - EXHAUST PIPE IN STOCK	LR016619 GASKET - EXHAUST PIPE LH, Exhaust pipe / From: AA000001 IN STOCK	$21.99	1
5F262	LR014155	INSULATOR - RUBBER	LR014155 INSULATOR - RUBBER From: AA000001	$37.73	1
5H270	LR013742	FILTER - DIESEL PARTICLE	LR013742 FILTER - DIESEL PARTICLE From: AA000001 / To: DA999999	$4,165.34	1
5H270	LR056206	FILTER - DIESEL PARTICLE	LR056206 FILTER - DIESEL PARTICLE From: EA000001	$4,143.42	1
9N497A	LR013739	PIPE - EXHAUST	LR013739 PIPE - EXHAUST LH, With Catalyst / From: AA000001 / To: BA999999	$6,093.42	1
9N497A	LR030330	PIPE - EXHAUST	LR030330 PIPE - EXHAUST LH, With Catalyst / From: CA000001	$2,013.98	1
9N497B	LR013738	PIPE - EXHAUST	LR013738 PIPE - EXHAUST RH / From: AA000001	$476.01	1
13A506	YQR000050	CLIP - WIRING IN STOCK	YQR000050 CLIP - WIRING From: AA000001 IN STOCK	$0.79	2
