Vacuum Control And Air Injection (3.0 V6 Diesel, Rhd) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Vacuum Control And Air Injection (3.0 V6 Diesel, RHD) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR006708 BOLT $0.66 To Order
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. $1.97 To Order
Photo Part No Description Price (each) Stock
4364422 SCREW $1.36 To Order
Photo Part No Description Price (each) Stock
1331241 STUD $1.10 To Order
Photo Part No Description Price (each) Stock
LR018327 HOSE - VACUUM $23.65 To Order
LR041269 HOSE - VACUUM $21.98 To Order
LR051575 HOSE - VACUUM $21.98 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR015439 BRACKET - HOSE $30.68 To Order
LR073587 BRACKET - HOSE $30.53 To Order
Photo Part No Description Price (each) Stock
LR096061 PUMP - VACUUM $571.83 To Order
LR023936 PUMP - VACUUM $1,059.39 To Order
LR077857 PUMP - VACUUM $521.16 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR013619 GASKET - VACUUM PUMP $47.80 To Order
LR096060 GASKET - VACUUM PUMP $14.72 IN STOCK
LR096060 GASKET - VACUUM PUMP $14.72 IN STOCK
Photo Part No Description Price (each) Stock
LR116598 SOLENOID - CSOV $288.89 To Order
Photo Part No Description Price (each) Stock
LR020186 HOSE AND BRACKET $322.27 To Order
LR027947 HOSE - VACUUM CONTROL HARNESS $541.99 To Order
LR041270 HOSE - VACUUM CONTROL HARNESS $350.88 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR013570 RESERVOIR - VACUUM $40.77 To Order
Photo Part No Description Price (each) Stock
LR029415 CONNECTOR - 3-WAY $16.30 To Order
Photo Part No Description Price (each) Stock
LR116599 SOLENOID - EGR $253.58 To Order
Photo Part No Description Price (each) Stock
LR021929 SOLENOID - TURBO CONTROL $126.94 To Order
LR076235 SOLENOID - TURBO CONTROL $233.33 To Order
LR076235 SOLENOID - TURBO CONTROL $233.33 To Order
Photo Part No Description Price (each) Stock
LR017433 HOSE - VACUUM $49.46 To Order
Photo Part No Description Price (each) Stock
LR052583 HOSE - VACUUM $82.93 To Order
LR071165 HOSE - VACUUM $87.94 To Order
Photo Part No Description Price (each) Stock
LR015536 HOSE - VACUUM $137.07 To Order
LR031682 HOSE - VACUUM $137.61 To Order
LR046113 HOSE - VACUUM $86.02 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR075844 HOSE - VACUUM $27.30 To Order
View All

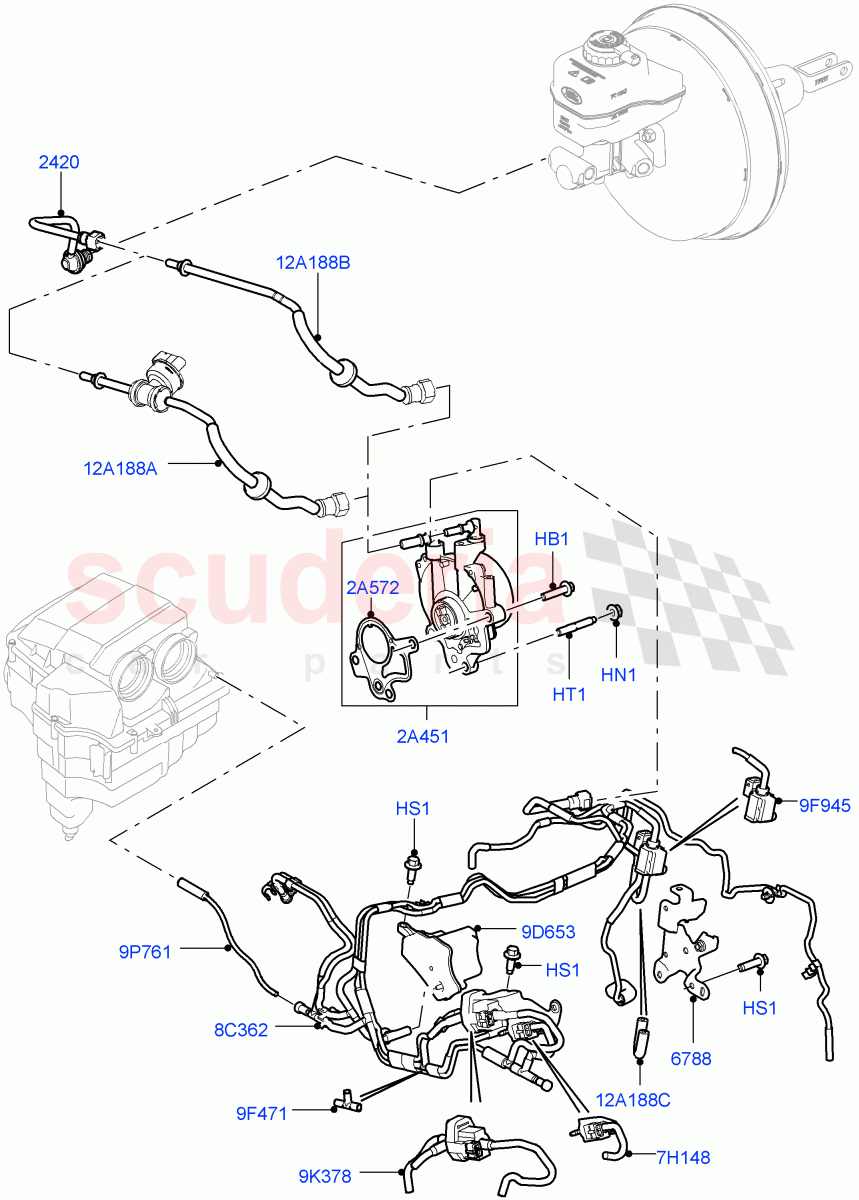

Vacuum Control And Air Injection (3.0 V6 Diesel, RHD) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR006708
BOLT
M8 x 55MM, Pump - Vacuum / From: AA000001 		$0.66 2
HN1 FN108046
NUT - HEX.
Hexagonal Head, M8 / From: AA000001 		$1.97 1
HS1 4364422
SCREW
M6 X 16MM / From: AA000001 		$1.36 6
HT1 1331241
STUD
M8 X 15 + M8 X 35 / From: AA000001 		$1.10 1
2A451 LR096061
PUMP - VACUUM
From: AA000001 / To: BA561113 		$571.83 1
2A451 LR023936
PUMP - VACUUM
From: BA561114 / To: CA646430 		$1,059.39 1
2A451 LR077857
PUMP - VACUUM
From: CA646431 / To: DA655775 		$521.16 1
2A451 LR077839
PUMP - VACUUM
From: EA730191 		$453.85 1
2A451 LR104350
PUMP - VACUUM
From: DA655776 / To: EA730190 		$584.30 1
2A572 LR013619
GASKET - VACUUM PUMP
From: AA000001 / To: FA999999 		$47.80 1
2A572 LR096060
GASKET - VACUUM PUMP
From: GA000001 / To: GA458997
IN STOCK 		$14.72 1
2A572 LR096060
GASKET - VACUUM PUMP
From: GA458998
IN STOCK 		$14.72 1
7H148 LR116598
SOLENOID - CSOV
From: EA730191 		$288.89 1
8C362 LR020186
HOSE AND BRACKET
Engine Emission Control, Includes Valves / From: AA000001 / To: BA558269 		$322.27 1
8C362 LR027947
HOSE - VACUUM CONTROL HARNESS
Includes Valves, Vacuum Control Harness / From: BA558270 / To: CA631925 		$541.99 1
8C362 LR041270
HOSE - VACUUM CONTROL HARNESS
Includes Valves, Vacuum Control Harness / From: CA631926 / To: EA710162 		$350.88 1
8C362 LR061348
HOSE - VACUUM CONTROL HARNESS
Includes Valves, Vacuum Control Harness / From: EA710163 / To: FA999999 		$531.93 1
8C362 LR076236
HOSE - VACUUM CONTROL HARNESS
Includes Valves, Vacuum Control Harness / From: GA000001 		$323.86 1
9D653 LR013570
RESERVOIR - VACUUM
To Vacuum / From: AA000001 		$40.77 1
9F471 LR029415
CONNECTOR - 3-WAY
From: AA000001 		$16.30 1
9F945 LR116599
SOLENOID - EGR
From: EA730191 		$253.58 1
9K378 LR021929
SOLENOID - TURBO CONTROL
From: AA000001 / To: AA546302 		$126.94 1
9K378 LR076235
SOLENOID - TURBO CONTROL
From: AA546303 / To: DA999999 		$233.33 1
9K378 LR076235
SOLENOID - TURBO CONTROL
From: EA000001 		$233.33 1
9P761 LR017433
HOSE - VACUUM
From: AA000001 		$49.46 1
12A188A LR052583
HOSE - VACUUM
Starter - Stop/Start System / Pump To Booster / From: EA000001 / To: FA733328 		$82.93 1
12A188A LR071165
HOSE - VACUUM
Starter - Stop/Start System / Pump To Booster / From: FA733329 		$87.94 1
12A188B LR015536
HOSE - VACUUM
Pump To Booster / From: AA000001 / To: CA999999 		$137.07 1
12A188B LR031682
HOSE - VACUUM
Pump To Booster / From: DA000001 / To: DA653235 		$137.61 1
12A188B LR046113
HOSE - VACUUM
Pump To Booster / From: DA653236 / To: DA999999 		$86.02 1
12A188B LR052585
HOSE - VACUUM
Standard Electric Starter Motor / Pump To Booster / From: EA000001 		$47.61 1
12A188C LR075844
HOSE - VACUUM
U-Type 		$27.30 1
2420 LR018327
HOSE - VACUUM
Brake Vacuum Booster / From: AA000001 / To: CA627995 		$23.65 1
2420 LR041269
HOSE - VACUUM
Brake Vacuum Booster / From: CA627996 / To: DA668050 		$21.98 1
2420 LR051575
HOSE - VACUUM
Brake Vacuum Booster / From: DA668051 / To: DA999999 		$21.98 1
2420 LR052592
HOSE - VACUUM
Standard Electric Starter Motor / Brake Vacuum Booster / From: EA000001 		$44.02 1
2420 LR052591
TUBE - VACUUM
Starter - Stop/Start System / Brake Vacuum Booster / From: EA000001 		$44.02 1
6788 LR015439
BRACKET - HOSE
To Vacuum Hose / From: AA000001 / To: EA999999 		$30.68 1
6788 LR073587
BRACKET - HOSE
To Vacuum Hose / From: FA000001 		$30.53 1
