Exhaust Gas Recirculation (Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo, 3.0 V6 D Low Mt Row,...

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Exhaust Gas Recirculation (Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo, 3.0 V6 D Low MT ROW,...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1316028 BOLT $1.31 To Order
Photo Part No Description Price (each) Stock
LR009529 BOLT $4.03 IN STOCK
Photo Part No Description Price (each) Stock
1225745 BOLT AND WASHER - HEX.HEAD $2.96 IN STOCK
Photo Part No Description Price (each) Stock
LR012201 BOLT $1.16 To Order
Photo Part No Description Price (each) Stock
LR020270 BOLT $0.63 To Order
Photo Part No Description Price (each) Stock
4378449 SCREW $2.08 IN STOCK
Photo Part No Description Price (each) Stock
BYP500170 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
RYP501050 SCREW - PAN - TORX $1.47 To Order
Photo Part No Description Price (each) Stock
1311338 CLAMP - TUBE $3.85 To Order
Photo Part No Description Price (each) Stock
LR020547 TUBE - EGR VALVE TO EXHAUST MANIFLD $97.64 To Order
Photo Part No Description Price (each) Stock
LR020548 TUBE - EGR VALVE TO EXHAUST MANIFLD $117.46 To Order
Photo Part No Description Price (each) Stock
LR075627 GASKET - EXHAUST MANIFOLD $21.10 To Order
LR075627 GASKET - EXHAUST MANIFOLD $21.10 To Order
LR075627 GASKET - EXHAUST MANIFOLD $21.10 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR038333 GASKET - EGR OUTLET $15.34 To Order
LR038333 GASKET - EGR OUTLET $15.34 To Order
Photo Part No Description Price (each) Stock
LR020545 GASKET - EGR INLET $13.49 To Order
Photo Part No Description Price (each) Stock
LR020546 GASKET - EGR INLET $11.22 To Order
Photo Part No Description Price (each) Stock
LR013587 TUBE - EXHAUST GAS RECIRCULATION $94.22 To Order
Photo Part No Description Price (each) Stock
LR013589 TUBE - EXHAUST GAS RECIRCULATION $113.29 To Order
Photo Part No Description Price (each) Stock
LR020551 ACTUATOR - EGR COOLER BYPASS $70.41 To Order
Photo Part No Description Price (each) Stock
LR020552 ACTUATOR - EGR COOLER BYPASS $70.41 To Order
Photo Part No Description Price (each) Stock
LR018752 EGR UNIT $1,022.59 To Order
Photo Part No Description Price (each) Stock
LR018753 EGR UNIT $1,012.82 To Order
View All

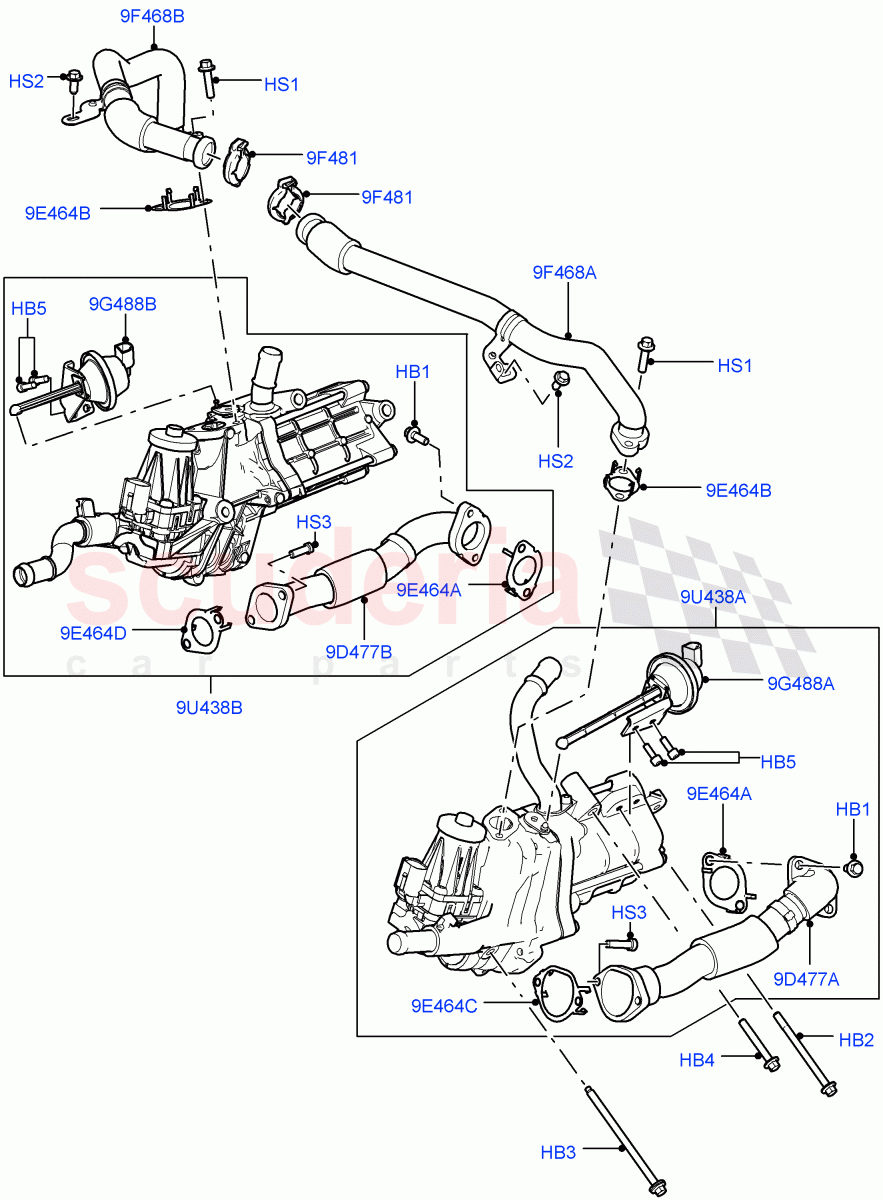

Exhaust Gas Recirculation (Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo, 3.0 V6 D Low MT ROW, 3.0L 24V V6 Turbo Diesel Std Flow, 3.0L 24V DOHC V6 TC Diesel, 3.0 V6 Diesel Electric Hybrid Eng) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 1316028
BOLT
Exhaust Manifold, M6 X 16MM / From: AA000001 		$1.31 4
HB2 LR009529
BOLT
M6 x 80MM / From: AA000001
IN STOCK 		$4.03 2
HB3 1225745
BOLT AND WASHER - HEX.HEAD
Bolt And Washer, M6 X 105MM / From: AA000001
IN STOCK 		$2.96 2
HB4 LR012201
BOLT
Hexagonal Head, M6 x 45MM / From: AA000001 		$1.16 2
HB5 LR020270
BOLT
M5 X 10MM / From: AA000001 		$0.63 4
HS1 4378449
SCREW
EGR Valve, M6 x 25MM / From: AA000001
IN STOCK 		$2.08 4
HS2 BYP500170
SCREW
Hexagonal Head, M6 x 14MM / From: AA000001
IN STOCK 		$1.24 2
HS3 RYP501050
SCREW - PAN - TORX
M6 x 25MM / From: AA000001 		$1.47 4
9D477A LR020547
TUBE - EGR VALVE TO EXHAUST MANIFLD
LH / From: AA000001 		$97.64 1
9D477B LR020548
TUBE - EGR VALVE TO EXHAUST MANIFLD
RH / From: AA000001 		$117.46 1
9E464A LR075627
GASKET - EXHAUST MANIFOLD
Exhaust Manifold / From: AA000001 / To: AA333332 		$21.10 2
9E464A LR075627
GASKET - EXHAUST MANIFOLD
Exhaust Manifold / From: AA333333 / To: BA999999 		$21.10 2
9E464A LR075627
GASKET - EXHAUST MANIFOLD
Exhaust Manifold / From: CA000001 / To: FA999999 		$21.10 2
9E464A LR075627
GASKET - EXHAUST MANIFOLD
Exhaust Manifold / From: GA000001 		$21.10 2
9E464B LR038333
GASKET - EGR OUTLET
EGR Outlet / From: AA000001 / To: CA620737 		$15.34 2
9E464B LR038333
GASKET - EGR OUTLET
EGR Outlet / From: CA620738 		$15.34 2
9E464C LR020545
GASKET - EGR INLET
LH, EGR Inlet / From: AA000001 		$13.49 1
9E464D LR020546
GASKET - EGR INLET
RH, EGR Inlet / From: AA000001 		$11.22 1
9F468A LR013587
TUBE - EXHAUST GAS RECIRCULATION
LH / From: AA000001 		$94.22 1
9F468B LR013589
TUBE - EXHAUST GAS RECIRCULATION
RH / From: AA000001 		$113.29 1
9F481 1311338
CLAMP - TUBE
EGR Tube / From: AA000001 		$3.85 2
9G488A LR020551
ACTUATOR - EGR COOLER BYPASS
LH, Vacuum EGR Cooler Bypass Actuator / From: AA000001 		$70.41 1
9G488B LR020552
ACTUATOR - EGR COOLER BYPASS
RH, Vacuum EGR Cooler Bypass Actuator / From: AA000001 		$70.41 1
9U438A LR018752
EGR UNIT
LH, Includes Valve, Cooler, Bypass Actuator And Tube From Exhaust Manifold / From: AA000001 		$1,022.59 1
9U438B LR018753
EGR UNIT
RH, Includes Valve, Cooler, Bypass Actuator And Tube From Exhaust Manifold / From: AA000001 		$1,012.82 1
