Heater Hoses (3.0L Dohc Gdi Sc V6 Petrol) ((V) Fromea000001)

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Heater Hoses (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR011270 SCREW $1.24 To Order
Photo Part No Description Price (each) Stock
RYG500270 SCREW $2.83 To Order
Photo Part No Description Price (each) Stock
LR061621 BOLT $1.76 To Order
Photo Part No Description Price (each) Stock
LR010793 GASKET - WATER MANIFOLD $9.64 To Order
Photo Part No Description Price (each) Stock
LR031393 HOSE AND BRACKET $122.00 To Order
Photo Part No Description Price (each) Stock
4346360 SENSOR - ENGINE COOLANT TEMPERATURE $59.87 To Order
Photo Part No Description Price (each) Stock
LR122710 MANIFOLD - HEATER $140.04 To Order
LR075991 MANIFOLD - HEATER $92.15 To Order
Photo Part No Description Price (each) Stock
LR050880 HOSE - WATER $341.10 To Order
Photo Part No Description Price (each) Stock
LR050879 HOSE - WATER $204.49 To Order
View All

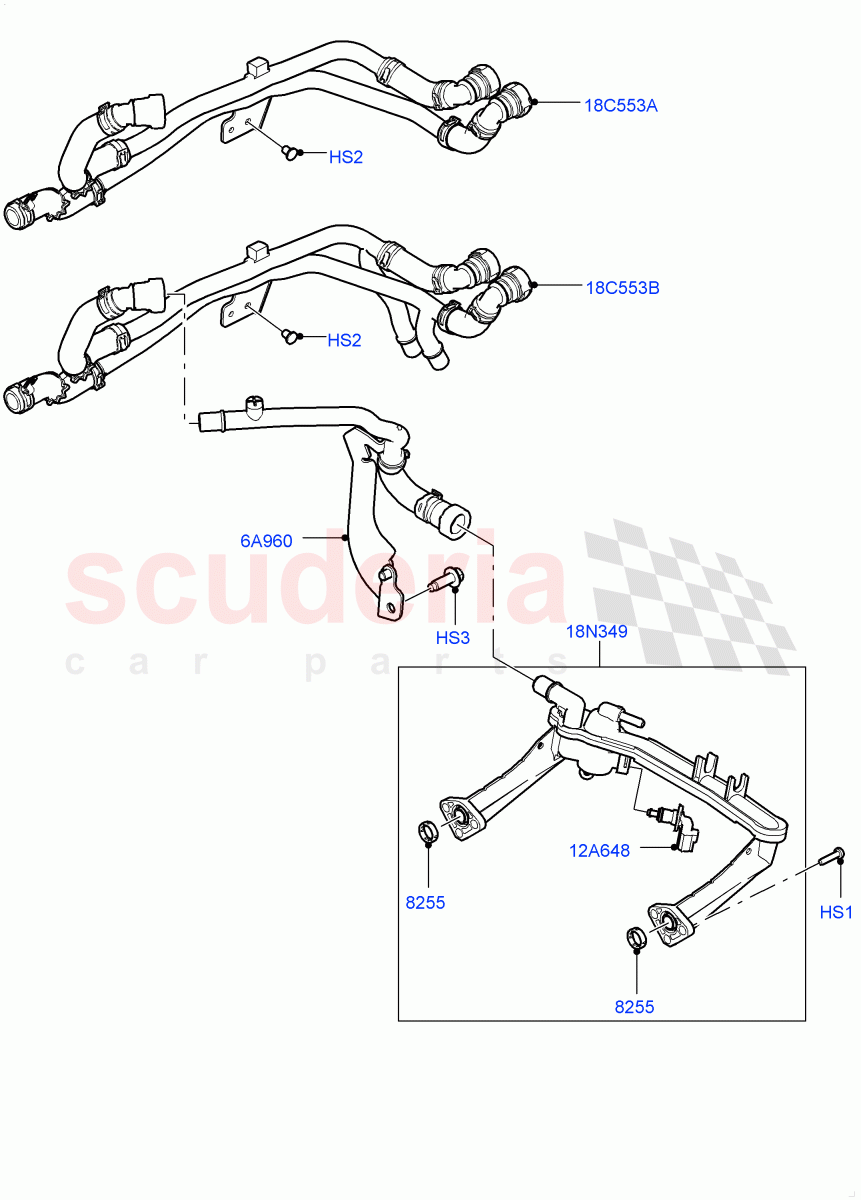

Heater Hoses (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR011270
SCREW
M6 x 25MM, Torx / From: EA000001 		$1.24 6
HS2 RYG500270
SCREW
Hexagonal Head, M10 X 25MM / From: EA000001 		$2.83 1
HS3 LR061621
BOLT
M10 x 16MM / From: EA000001 		$1.76 1
6A960 LR031393
HOSE AND BRACKET
Includes Hose, To Engine, To Heater Hoses / From: EA000001 		$122.00 1
12A648 4346360
SENSOR - ENGINE COOLANT TEMPERATURE
From: EA000001 		$59.87 1
18C553A LR050880
HOSE - WATER
Less Rear Seat Climate Control / To Heater Hoses, To Heater Matrix / From: EA000001 		$341.10 1
18C553B LR050879
HOSE - WATER
With Rear Seat Climate Control / To Heater Hoses, To Heater Matrix / From: EA000001 		$204.49 1
18N349 LR122710
MANIFOLD - HEATER
Heater, Tube From Engine Block To Heater Inlet Hose, With Sensor / From: EA000001 / To: FA999999 		$140.04 1
18N349 LR075991
MANIFOLD - HEATER
Heater, Tube From Engine Block To Heater Inlet Hose, With Sensor / From: GA000001 		$92.15 1
8255 LR010793
GASKET - WATER MANIFOLD
To Engine / From: EA000001 		$9.64 2
