Heater/Air Cond.internal Components (Front) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Heater/Air Cond.Internal Components (Front) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
JYG500011 BOLT $0.77 To Order
Photo Part No Description Price (each) Stock
FYP500240 SCREW $2.07 To Order
Photo Part No Description Price (each) Stock
LR013842 HEATER $1,370.76 To Order
LR013844 HEATER $1,460.84 To Order
LR031671 Heater Enquire To Order
...and 15 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
PCE500010 MODULE-CONTROL $103.60 To Order
LR031677 RESISTOR - HEATER BLOWER MOTOR $169.33 To Order
Photo Part No Description Price (each) Stock
JGC500010 MOTOR AND FAN - BLOWER $252.58 To Order
JGC500050 MOTOR AND FAN - BLOWER $229.60 To Order
Photo Part No Description Price (each) Stock
LR013882 CONTROL - AIR CONDITIONING $294.74 To Order
LR029610 CONTROL - AIR CONDITIONING $323.67 To Order
LR037075 CONTROL - AIR CONDITIONING $344.37 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
JQD500010 VALVE - EVAPORATOR EXPANSION $249.54 To Order
Photo Part No Description Price (each) Stock
LR015350 EVAPORATOR $593.90 To Order
LR066093 EVAPORATOR $593.90 To Order
LR066093 EVAPORATOR $593.90 To Order
Photo Part No Description Price (each) Stock
JEP500010 SEAL $41.38 To Order
Photo Part No Description Price (each) Stock
LR015348 CORE - HEATER $286.78 To Order
LR015349 CORE - HEATER $182.09 To Order
Photo Part No Description Price (each) Stock
LR015346 WIRING $123.07 To Order
LR015347 WIRING $129.91 To Order
Photo Part No Description Price (each) Stock
JEE500030 GROMMET $24.48 To Order
Photo Part No Description Price (each) Stock
LR015491 SENSOR $44.92 To Order
Photo Part No Description Price (each) Stock
JQR500040 CLAMP $149.86 To Order
Photo Part No Description Price (each) Stock
JKR500010 FILTER - POLLEN $85.53 To Order
JKR500020 FILTER - POLLEN $116.10 To Order
LR170345 FILTER - ODOUR AND PARTICLES $79.43 IN STOCK
Photo Part No Description Price (each) Stock
JQS500030 GROMMET $20.69 To Order
Photo Part No Description Price (each) Stock
JNC500040 MOTOR - COOLING BLOWER $143.24 To Order
JNC500050 MOTOR - COOLING BLOWER $88.39 To Order
LR043349 MOTOR - COOLING BLOWER $165.36 To Order
Photo Part No Description Price (each) Stock
JWO500010 MOTOR $52.62 To Order
LR041271 STEPPER MOTOR - HEATER $88.70 To Order
Photo Part No Description Price (each) Stock
JWO500020 MOTOR $111.76 To Order
LR041272 STEPPER MOTOR - HEATER $126.59 To Order
Photo Part No Description Price (each) Stock
JWO500030 MOTOR $112.12 To Order
LR041273 STEPPER MOTOR - HEATER $130.40 To Order
Photo Part No Description Price (each) Stock
JWO500040 MOTOR $78.92 To Order
LR041274 STEPPER MOTOR - HEATER $100.35 To Order
View All

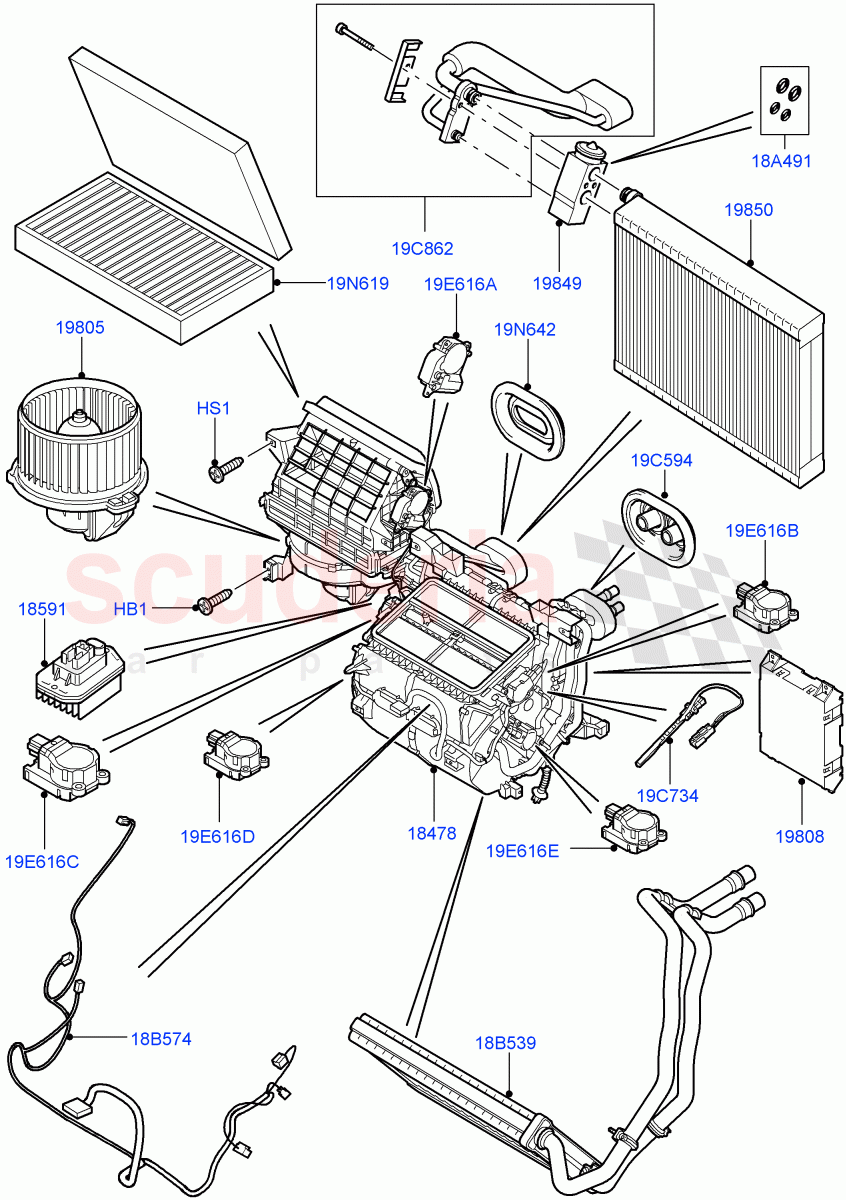

Heater/Air Cond.Internal Components (Front) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 JYG500011
BOLT
M6 X 33 / From: AA000001 		$0.77 2
HS1 FYP500240
SCREW
M6 x 18MM / From: AA000001 		$2.07 6
18A491 JEP500010
SEAL
Attaches To Evaporator, Pack Of Four (4) / From: AA000001 		$41.38 1
18B539 LR015348
CORE - HEATER
LHD / From: AA000001 		$286.78 1
18B539 LR015349
CORE - HEATER
RHD / From: AA000001 		$182.09 1
18B574 LR015346
WIRING
RHD / From: AA000001 		$123.07 1
18B574 LR015347
WIRING
LHD / From: AA000001 		$129.91 1
19C594 JEE500030
GROMMET
RH / From: AA000001 		$24.48 1
19C734 LR015491
SENSOR
From: AA000001 		$44.92 1
19C862 JQR500040
CLAMP
Dual Tube Assy / From: AA000001 		$149.86 1
19E616A JNC500040
MOTOR - COOLING BLOWER
LHD / Recirculation / From: AA000001 		$143.24 1
19E616A JNC500050
MOTOR - COOLING BLOWER
RHD / For The Lever Please Order The Blower Assy, Recirculation / From: AA000001 / To: CA613850 		$88.39 1
19E616A LR043349
MOTOR - COOLING BLOWER
RHD / For The Lever Please Order The Blower Assy, Recirculation / From: CA613851 		$165.36 1
19E616B JWO500010
MOTOR
Defrost Stepper / From: AA000001 / To: CA613850 		$52.62 1
19E616B LR041271
STEPPER MOTOR - HEATER
Defrost Stepper / From: CA613851 		$88.70 1
19E616C JWO500020
MOTOR
Face/Footwell Stepper / From: AA000001 / To: CA613850 		$111.76 1
19E616C LR041272
STEPPER MOTOR - HEATER
Face/Footwell Stepper / From: CA613851 		$126.59 1
19E616D JWO500030
MOTOR
Air Mix Left Stepper / From: AA000001 / To: CA613850 		$112.12 1
19E616D LR041273
STEPPER MOTOR - HEATER
Air Mix Left Stepper / From: CA613851 		$130.40 1
19E616E JWO500040
MOTOR
Air Mix Right Stepper / From: AA000001 / To: CA613850 		$78.92 1
19E616E LR041274
STEPPER MOTOR - HEATER
Air Mix Right Stepper / From: CA613851 		$100.35 1
19N619 JKR500010
FILTER - POLLEN
Air Intake, Production Installed, Standard / From: AA000001 		$85.53 1
19N619 JKR500020
FILTER - POLLEN
Air Intake, Filter - Odour And Particles, Production Replacement, Standard / From: AA000001 / To: AA100000 		$116.10 1
19N619 LR170345
FILTER - ODOUR AND PARTICLES
Air Intake, Filter - Odour And Particles, Production Replacement, Standard / From: AA100001
IN STOCK 		$79.43 1
19N642 JQS500030
GROMMET
LH / From: AA000001 		$20.69 1
18478 LR013842
HEATER
RHD / From: AA000001 / To: BA588388 		$1,370.76 1
18478 LR013844
HEATER
LHD / From: AA000001 / To: BA588388 		$1,460.84 1
18478 LR031671
Heater
RHD / From: BA588389 / To: BA593047 		- 1 Enquire
18478 LR031672
HEATER
LHD / From: BA588389 / To: BA593047 		$1,459.54 1
18478 LR031678
HEATER & EVAPORATOR UNIT
RHD / From: CA000001 / To: CA613850 		$1,737.54 1
18478 LR031679
HEATER & EVAPORATOR UNIT
LHD / From: CA000001 / To: CA613850 		$1,485.17 1
18478 LR032287
HEATER
RHD / From: BA593048 / To: BA999999 		$1,876.61 1
18478 LR032288
HEATER
LHD / From: BA593048 / To: BA999999 		$1,494.42 1
18478 LR041682
HEATER & EVAPORATOR UNIT
RHD / From: CA613851 / To: CA617626 		$1,822.35 1
18478 LR039600
HEATER & EVAPORATOR UNIT
LHD / From: CA613851 / To: CA617626 		$1,634.01 1
18478 LR041683
HEATER & EVAPORATOR UNIT
RHD / From: CA617627 / To: DA999999 		$1,544.88 1
18478 LR039599
HEATER & EVAPORATOR UNIT
LHD / From: CA617627 / To: DA999999 		$1,171.68 1
18478 LR052185
HEATER & EVAPORATOR UNIT
RHD / From: EA000001 / To: EA720950 		$1,233.85 1
18478 LR052186
HEATER & EVAPORATOR UNIT
LHD / From: EA000001 / To: EA720950 		$1,477.29 1
18478 LR065847
HEATER & EVAPORATOR UNIT
RHD / From: FA000001 		$1,732.19 1
18478 LR065848
HEATER & EVAPORATOR UNIT
LHD / From: FA000001 		$1,709.82 1
18478 LR066828
HEATER & EVAPORATOR UNIT
RHD / From: EA720951 / To: EA999999 		$1,766.97 1
18478 LR066829
HEATER & EVAPORATOR UNIT
LHD / From: EA720951 / To: EA999999 		$1,410.28 1
18591 PCE500010
MODULE-CONTROL
From: AA000001 / To: BA584130 		$103.60 1
18591 LR031677
RESISTOR - HEATER BLOWER MOTOR
From: BA584131 		$169.33 1
19805 JGC500010
MOTOR AND FAN - BLOWER
RHD / From: AA000001 		$252.58 1
19805 JGC500050
MOTOR AND FAN - BLOWER
LHD / From: AA000001 		$229.60 1
19808 LR013882
CONTROL - AIR CONDITIONING
From: AA000001 / To: BA591508 		$294.74 1
19808 LR029610
CONTROL - AIR CONDITIONING
From: CA000001 / To: CA612098 		$323.67 1
19808 LR037075
CONTROL - AIR CONDITIONING
From: BA591509 / To: BA999999 		$344.37 1
19808 LR041686
CONTROL - AIR CONDITIONING
From: CA612099 / To: DA999999 		$344.37 1
19808 LR051727
CONTROL - AIR CONDITIONING
From: EA000001 / To: EA731024 		$341.74 1
19808 LR066110
CONTROL - AIR CONDITIONING
From: EA731025 		$359.78 1
19849 JQD500010
VALVE - EVAPORATOR EXPANSION
From: AA000001 		$249.54 1
19850 LR015350
EVAPORATOR
From: AA000001 / To: CA613850 		$593.90 1
19850 LR066093
EVAPORATOR
From: CA613851 / To: DA699649 		$593.90 1
19850 LR066093
EVAPORATOR
From: DA699650 		$593.90 1
