Front Susp.arms/Stabilizer/X-Member (With B6 Level Armouring) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Front Susp.Arms/Stabilizer/X-Member (With B6 Level Armouring) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG000420 BOLT $6.53 IN STOCK
Photo Part No Description Price (each) Stock
RDI000034 BOLT $13.32 IN STOCK
Photo Part No Description Price (each) Stock
LR011926 CLIP - SPECIAL $72.16 To Order
LR011927 CLIP - SPECIAL $72.16 To Order
Photo Part No Description Price (each) Stock
LR012134 CLIP - SPECIAL $56.14 To Order
Photo Part No Description Price (each) Stock
FY112056 NUT - HEX. $1.92 IN STOCK
Photo Part No Description Price (each) Stock
FY114056 NUT - HEX. $1.95 IN STOCK
Photo Part No Description Price (each) Stock
FX116056 NUT - FLANGED $6.12 IN STOCK
Photo Part No Description Price (each) Stock
FX112056 NUT - HEX. $1.30 To Order
Photo Part No Description Price (each) Stock
RYG000440 BOLT $17.10 IN STOCK
Photo Part No Description Price (each) Stock
RYF000203 WASHER $8.55 IN STOCK
Photo Part No Description Price (each) Stock
WA116106 WASHER $3.55 To Order
Photo Part No Description Price (each) Stock
RYF500120 WASHER $1.74 To Order
Photo Part No Description Price (each) Stock
RBX500432 BUSH - FRONT SUSPENSION ARM $24.05 To Order
Photo Part No Description Price (each) Stock
LR011953 BAR - ROLL $935.64 To Order
Photo Part No Description Price (each) Stock
RBU500100 CLAMP - RUBBER BUSH $57.59 To Order
Photo Part No Description Price (each) Stock
RBK500170 JOINT - BALL $79.58 To Order
Photo Part No Description Price (each) Stock
RBK500280 JOINT - BALL $79.58 To Order
Photo Part No Description Price (each) Stock
LR055291 BUSH - FRONT SUSPENSION ARM $113.26 IN STOCK
Photo Part No Description Price (each) Stock
LR011930 BRACKET - SENSOR MOUNTING $262.03 To Order
LR011931 BRACKET - SENSOR MOUNTING $262.03 To Order
Photo Part No Description Price (each) Stock
RBM500140 LINK $53.38 To Order
RBM500150 LINK $53.38 To Order
Photo Part No Description Price (each) Stock
LR011955 BUSH $85.56 To Order
Photo Part No Description Price (each) Stock
LR051625 BUSH - SUSPENSION ARM $18.47 IN STOCK
LR051625 BUSH - SUSPENSION ARM $18.47 IN STOCK
Photo Part No Description Price (each) Stock
RBJ500840 ARM - FRONT SUSPENSION $121.55 To Order
RBJ500850 ARM - FRONT SUSPENSION $177.84 To Order
LR014629 ARM - FRONT SUSPENSION $388.57 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
RBJ501000 ARM - FRONT SUSPENSION $279.25 To Order
RBJ501010 ARM - FRONT SUSPENSION $315.19 To Order
View All

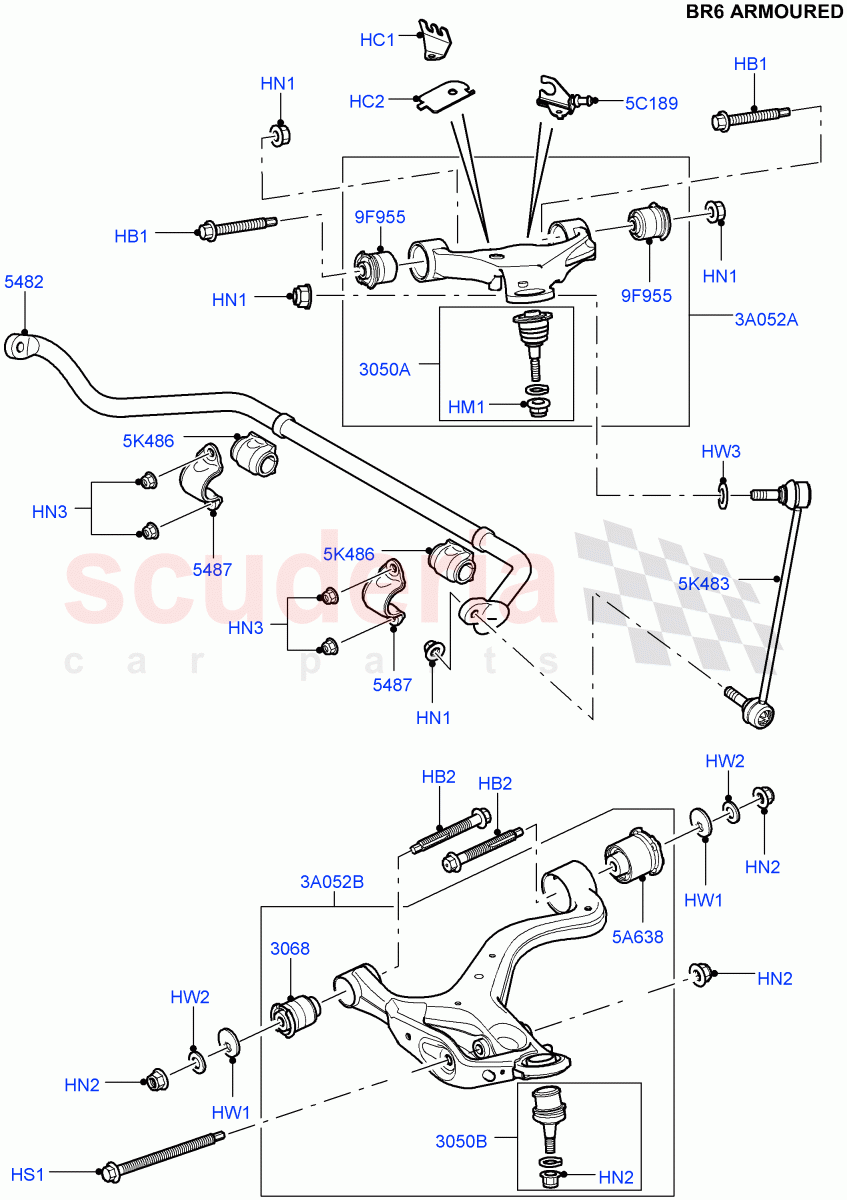

Front Susp.Arms/Stabilizer/X-Member (With B6 Level Armouring) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG000420
BOLT
M14 X 80MM / From: AA000001
IN STOCK 		$6.53 4
HB2 RDI000034
BOLT
M16 X 120MM / From: AA000001
IN STOCK 		$13.32 4
HC1 LR011926
CLIP - SPECIAL
RH / From: AA000001 		$72.16 1
HC1 LR011927
CLIP - SPECIAL
LH / From: AA000001 		$72.16 1
HC2 LR012134
CLIP - SPECIAL
Brake Hose / From: AA000001 		$56.14 2
HM1 FY112056
NUT - HEX.
Hex Nut Type, M12 / From: AA000001
IN STOCK 		$1.92 2
HN1 FY114056
NUT - HEX.
Hexagonal Head, M14 / From: AA000001
IN STOCK 		$1.95 8
HN2 FX116056
NUT - FLANGED
M16 / From: AA000001
IN STOCK 		$6.12 4
HN3 FX112056
NUT - HEX.
HEX Flange, M12 / From: AA000001 		$1.30 4
HS1 RYG000440
BOLT
M16 X 200MM / From: AA000001
IN STOCK 		$17.10 2
HW1 RYF000203
WASHER
Adjusting / From: AA000001
IN STOCK 		$8.55 4
HW2 WA116106
WASHER
17 X 30 X 3 / From: AA000001 		$3.55 4
HW3 RYF500120
WASHER
14.2 X 24 X 2.3 / From: AA000001 		$1.74 2
3A052A RBJ500840
ARM - FRONT SUSPENSION
RH, Upper / From: AA000001 / To: BA999999 		$121.55 1
3A052A RBJ500850
ARM - FRONT SUSPENSION
LH, Upper / From: AA000001 / To: BA999999 		$177.84 1
3A052A LR014629
ARM - FRONT SUSPENSION
LH, Upper / From: CA000001 		$388.57 1
3A052A LR014619
ARM - FRONT SUSPENSION
RH, Upper / From: CA000001 		$404.12 1
3A052B RBJ501000
ARM - FRONT SUSPENSION
RH, Lower / From: AA000001 		$279.25 1
3A052B RBJ501010
ARM - FRONT SUSPENSION
LH, Lower / From: AA000001 		$315.19 1
5A638 LR055291
BUSH - FRONT SUSPENSION ARM
Hydrabush / From: AA000001
IN STOCK 		$113.26 2
5C189 LR011930
BRACKET - SENSOR MOUNTING
RH / From: AA000001 		$262.03 1
5C189 LR011931
BRACKET - SENSOR MOUNTING
LH / From: AA000001 		$262.03 1
5K483 RBM500140
LINK
RH / From: AA000001 		$53.38 1
5K483 RBM500150
LINK
LH / From: AA000001 		$53.38 1
5K486 LR011955
BUSH
From: AA000001 		$85.56 2
9F955 LR051625
BUSH - SUSPENSION ARM
From: AA000001 / To: AA999999
IN STOCK 		$18.47 4
9F955 LR051625
BUSH - SUSPENSION ARM
From: BA000001
IN STOCK 		$18.47 4
3050A RBK500170
JOINT - BALL
Includes Circlip, Upper / From: AA000001 		$79.58 2
3050B RBK500280
JOINT - BALL
35MM Joint Assy - Ball, Includes Circlip, Lower / From: AA000001 		$79.58 1
3068 RBX500432
BUSH - FRONT SUSPENSION ARM
Front / From: AA000001 		$24.05 2
5482 LR011953
BAR - ROLL
From: AA000001 		$935.64 1
5487 RBU500100
CLAMP - RUBBER BUSH
From: AA000001 		$57.59 2
