Name: Air Suspension Compressor And Lines (Compressor Assy, 'Hitachi' Compressor) (With Four Corner Air Suspension) ((V) FROMAA000001, (V) TOBA589827)
Rating: 4.1 (1 reviews)

Air Suspension Compressor And Lines (Compressor Assy, 'Hitachi' Compressor) (With Four Corner Air Suspension) ((V) FROMAA000001, (V) TOBA589827) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

View All

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Air Suspension Compressor And Lines (Compressor Assy, 'Hitachi' Compressor) (With Four Corner Air...

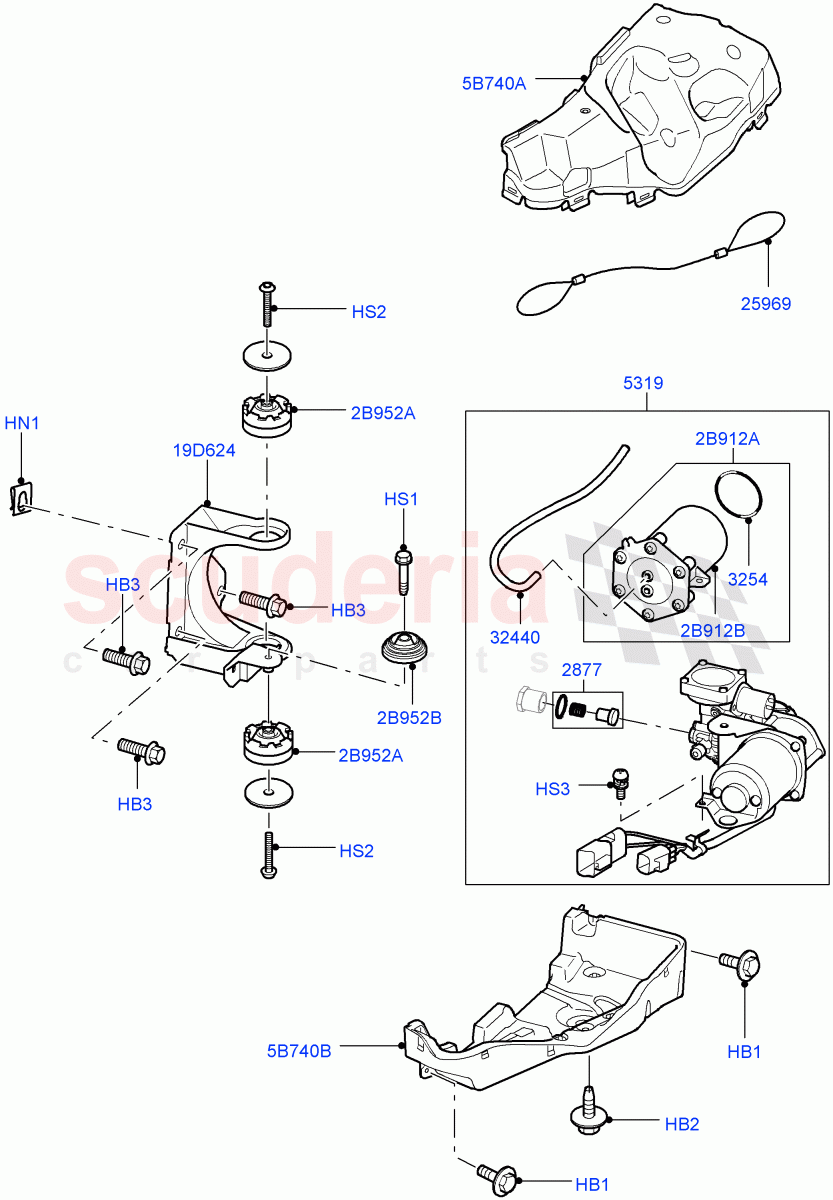

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	JPC6539L	BOLT	$1.22	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP501100	BOLT	$1.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FS108256	BOLT	$3.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYH500170	M8 NUT CLIP	$2.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR019943	SCREW	$1.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019942	SCREW	$1.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019941	SCREW	$2.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020590	KIT - COMPRESSOR OVERHAUL	$38.83	To Order

Photo	Part No	Description	Price (each)	Stock
	RYX500060	RING - SEALING	$10.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023964	COMPRESSOR - SUSPENSION LEVELLING	$1,223.92	To Order

Photo	Part No	Description	Price (each)	Stock
	RQD500020	STRAP - MOUNTING	$4.43	To Order

Photo	Part No	Description	Price (each)	Stock
	RQB500491	PIPE - LEVELLING COMPRESSOR	$24.18	To Order

Photo	Part No	Description	Price (each)	Stock
	RQU500064	BRACKET - COMPRESSOR	$270.68	To Order

Photo	Part No	Description	Price (each)	Stock
	VUB504700	DRYER - COMPRESSOR AIR	$235.91	To Order

Photo	Part No	Description	Price (each)	Stock
	RQQ500020	DRYER - COMPRESSOR AIR	$187.76	To Order

Photo	Part No	Description	Price (each)	Stock
	RVL500014	MOUNTING - RUBBER	$79.15	To Order

Photo	Part No	Description	Price (each)	Stock
	RVL500022	MOUNTING - RUBBER	$23.39	To Order

Photo	Part No	Description	Price (each)	Stock
	RVC500020	COVER - AIR SUSPENSION COMPRESSOR	$81.06	To Order

Photo	Part No	Description	Price (each)	Stock
	RVC500010	COVER - AIR SUSPENSION COMPRESSOR	$96.38	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	JPC6539L	BOLT	JPC6539L BOLT M6 X 20MM / From: AA000001	$1.22	2
HB2	RYP501100	BOLT IN STOCK	RYP501100 BOLT M6 X 23MM / From: AA000001 IN STOCK	$1.63	1
HB3	FS108256	BOLT IN STOCK	FS108256 BOLT Hexagonal Head, M8 X 25MM / From: AA000001 IN STOCK	$3.58	3
HN1	RYH500170	M8 NUT CLIP IN STOCK	RYH500170 M8 NUT CLIP M8 X 1.25, Nut "U" Spring / From: AA000001 IN STOCK	$2.02	3
HS1	LR019943	SCREW	LR019943 SCREW 5 x 28MM / From: AA000001	$1.79	1
HS2	LR019942	SCREW	LR019942 SCREW M6 x 35MM / From: AA000001	$1.63	2
HS3	LR019941	SCREW	LR019941 SCREW M5 X 12MM / From: AA000001	$2.94	1
2B912A	VUB504700	DRYER - COMPRESSOR AIR	VUB504700 DRYER - COMPRESSOR AIR From: AA000001	$235.91	1
2B912B	RQQ500020	DRYER - COMPRESSOR AIR	RQQ500020 DRYER - COMPRESSOR AIR From: AA000001	$187.76	1
2B952A	RVL500014	MOUNTING - RUBBER	RVL500014 MOUNTING - RUBBER From: AA000001	$79.15	2
2B952B	RVL500022	MOUNTING - RUBBER	RVL500022 MOUNTING - RUBBER From: AA000001	$23.39	1
5B740A	RVC500020	COVER - AIR SUSPENSION COMPRESSOR	RVC500020 COVER - AIR SUSPENSION COMPRESSOR Compressor Assy, Upper / From: AA000001	$81.06	1
5B740B	RVC500010	COVER - AIR SUSPENSION COMPRESSOR	RVC500010 COVER - AIR SUSPENSION COMPRESSOR Compressor Assy, Lower / From: AA000001	$96.38	1
19D624	RQU500064	BRACKET - COMPRESSOR	RQU500064 BRACKET - COMPRESSOR From: AA000001	$270.68	1
2877	LR020590	KIT - COMPRESSOR OVERHAUL	LR020590 KIT - COMPRESSOR OVERHAUL Delivery Valve Kit / From: AA000001	$38.83	1
3254	RYX500060	RING - SEALING	RYX500060 RING - SEALING 10MM / From: AA000001	$10.22	1
5319	LR023964	COMPRESSOR - SUSPENSION LEVELLING	LR023964 COMPRESSOR - SUSPENSION LEVELLING Air Compressor Relay - YWB500220, Air Compressor Relay Must Be Replaced Simultaneously With Air Compressor Change / From: AA000001	$1,223.92	1
25969	RQD500020	STRAP - MOUNTING	RQD500020 STRAP - MOUNTING From: AA000001	$4.43	1
32440	RQB500491	PIPE - LEVELLING COMPRESSOR	RQB500491 PIPE - LEVELLING COMPRESSOR From: AA000001	$24.18	1

Air Suspension Compressor And Lines (Compressor Assy, 'Hitachi' Compressor) (With Four Corner Air...

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Air Suspension Compressor And Lines (Compressor Assy, 'Hitachi' Compressor) (With Four Corner Air...
