Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Transmission External Components (3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 4WD, 3.0L...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR042472 SCREW $0.99 To Order
Photo Part No Description Price (each) Stock
KYP500260 SCREW $0.78 IN STOCK
Photo Part No Description Price (each) Stock
LR023294 PAN - TRANSMISSION OIL $271.49 To Order
LR065238 PAN - TRANSMISSION OIL $389.43 To Order
Photo Part No Description Price (each) Stock
LR050755 SHIELD - TRANSMISSION $46.36 To Order
Photo Part No Description Price (each) Stock
LR053742 BRACKET - TRANSMISSION HEAT SHIELD $46.11 To Order
LR057208 BRACKET - TRANSMISSION HEAT SHIELD $53.46 To Order
LR073535 BRACKET - TRANSMISSION HEAT SHIELD $167.68 To Order
Photo Part No Description Price (each) Stock
LR023292 PLUG - TRANSMISSION $50.36 To Order
LR065237 PLUG $48.52 To Order
Photo Part No Description Price (each) Stock
LR008866 GROMMET $8.65 IN STOCK
View All

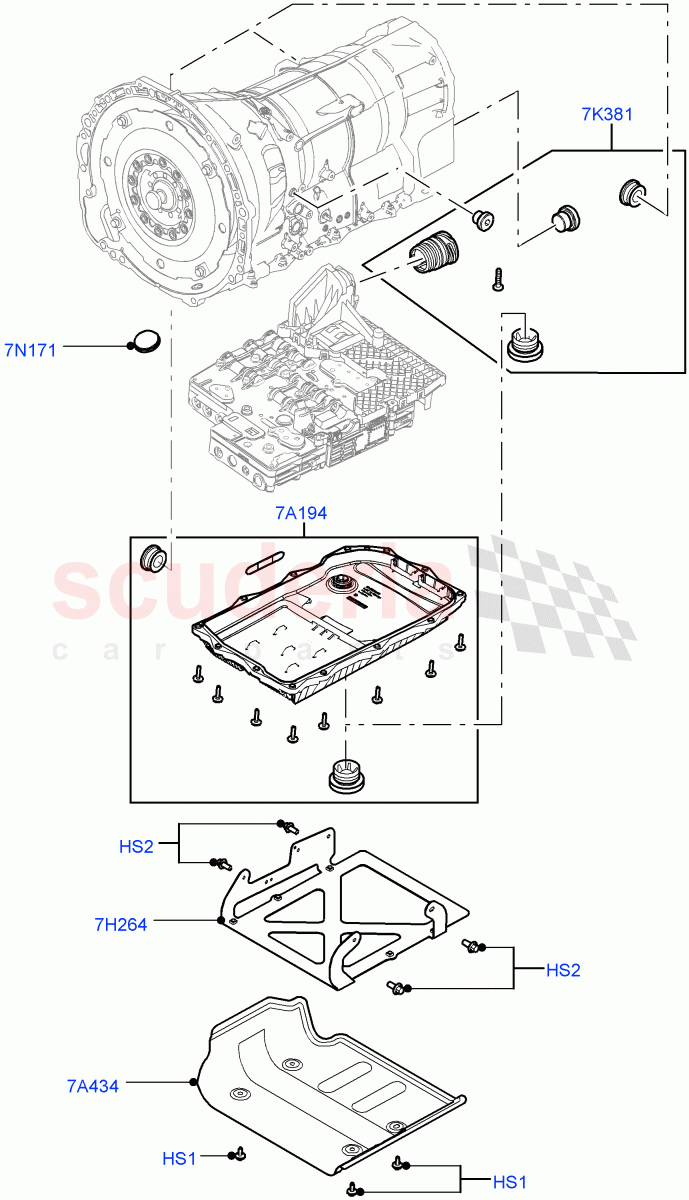

Transmission External Components (3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 4WD, 3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR042472
SCREW
Hexagonal Head, M6 X 16MM / From: EA000001 		$0.99 4
HS2 KYP500260
SCREW
M6 X 14MM / From: EA000001
IN STOCK 		$0.78 4
7A194 LR023294
PAN - TRANSMISSION OIL
Includes Oil Filter / From: EA000001 / To: EA999999 		$271.49 1
7A194 LR065238
PAN - TRANSMISSION OIL
Includes Oil Filter, Includes Sealing Gasket / From: FA000001 		$389.43 1
7A434 LR050755
SHIELD - TRANSMISSION
Transmission / From: EA000001 		$46.36 1
7H264 LR053742
BRACKET - TRANSMISSION HEAT SHIELD
Heat Shield, Retailers Are Advised To Read LTB01091v4 Prior To Ordering, Please Note LTB01091v4 Is Not Applicable To L319 / From: EA000001 / To: EA701031 		$46.11 1
7H264 LR057208
BRACKET - TRANSMISSION HEAT SHIELD
Heat Shield, Retailers Are Advised To Read LTB01091v4 Prior To Ordering, Please Note LTB01091v4 Is Not Applicable To L319 / From: EA701032 / To: FA765645 		$53.46 1
7H264 LR073535
BRACKET - TRANSMISSION HEAT SHIELD
Heat Shield, Retailers Are Advised To Read LTB01091v4 Prior To Ordering, Please Note LTB01091v4 Is Not Applicable To L319 / From: FA765646 		$167.68 1
7K381 LR023292
PLUG - TRANSMISSION
Transmission / From: EA000001 / To: EA999999 		$50.36 1
7K381 LR065237
PLUG
Transmission / From: FA000001 		$48.52 1
7N171 LR008866
GROMMET
Converter Drain Access / From: EA000001
IN STOCK 		$8.65 1
