Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Auto Trans Assy & Speedometer Drive (3.0 V6 Diesel, 8 Speed Auto Trans ZF 8HP70 4WD) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FB110086 BOLT - HEX.HEAD $0.59 To Order
Photo Part No Description Price (each) Stock
FS106126 BOLT $0.52 IN STOCK
Photo Part No Description Price (each) Stock
FB110146 BOLT - HEX.HEAD $1.83 To Order
Photo Part No Description Price (each) Stock
TYG500102 STUD $2.97 To Order
Photo Part No Description Price (each) Stock
LR030331 AUTOMATIC TRANSMISSION $14,014.19 To Order
LR029745 AUTOMATIC TRANSMISSION $5,918.87 To Order
LR043325 AUTOMATIC TRANSMISSION $13,872.38 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR023203 TUBE - TRANSMISSION VENTILATION $40.09 To Order
LR042384 TUBE - TRANSMISSION VENTILATION $45.56 To Order
LR080753 TUBE - TRANSMISSION VENTILATION $66.92 To Order
View All

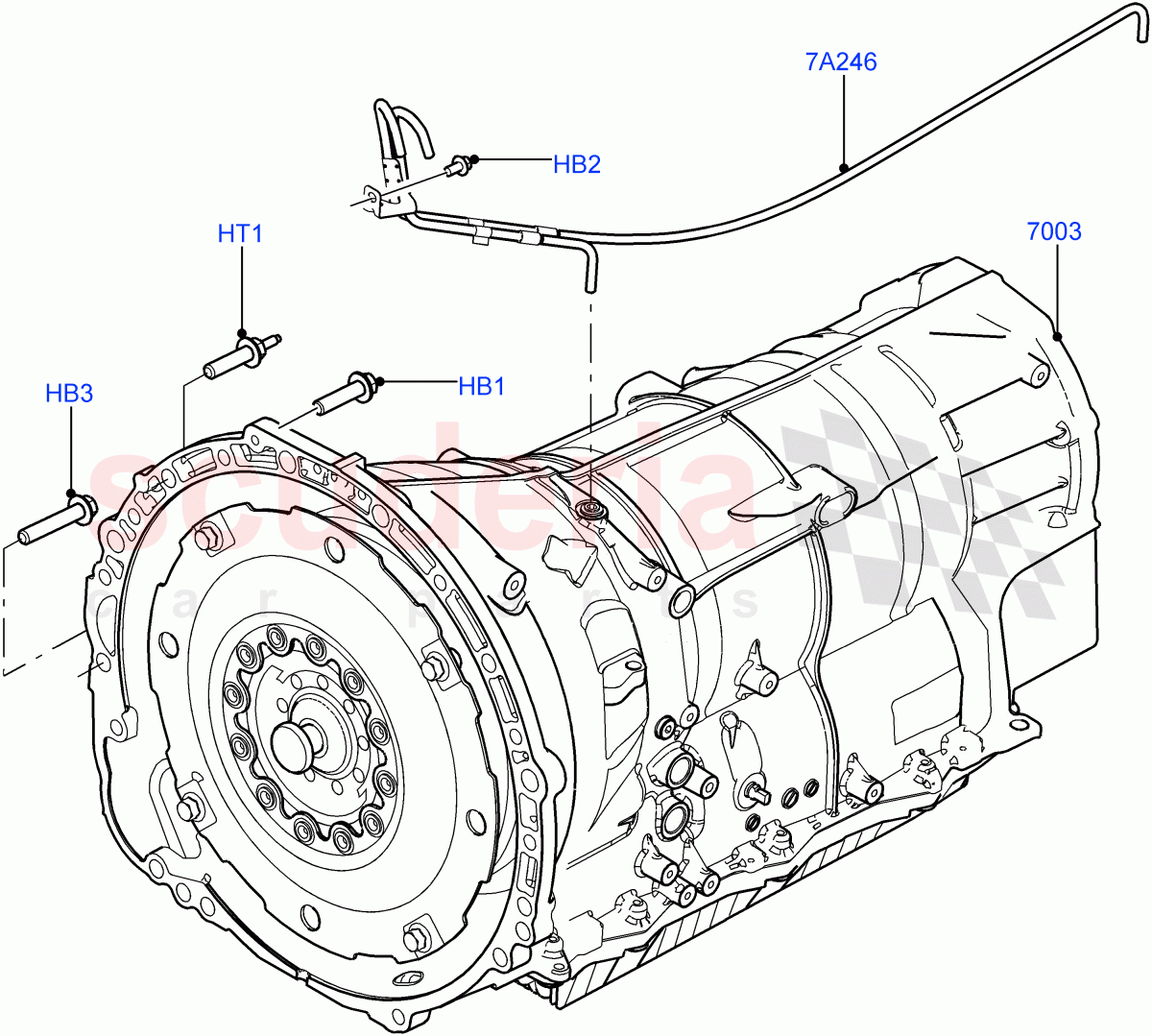

Auto Trans Assy & Speedometer Drive (3.0 V6 Diesel, 8 Speed Auto Trans ZF 8HP70 4WD) ((V) FROMCA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FB110086
BOLT - HEX.HEAD
M10 x 40MM / From: CA000001 		$0.59 12
HB2 FS106126
BOLT
Hexagonal Head, M6 x 12MM / From: CA000001
IN STOCK 		$0.52 1
HB3 FB110146
BOLT - HEX.HEAD
Hexagonal Head, M10 x 70MM / From: CA000001 		$1.83 1
HT1 TYG500102
STUD
M6 X 16MM + M10 X 38MM, Stud / From: CA000001 		$2.97 1
7A246 LR023203
TUBE - TRANSMISSION VENTILATION
Gearbox, Includes Bracket, Transfer Box / From: CA000001 / To: CA645071 		$40.09 1
7A246 LR042384
TUBE - TRANSMISSION VENTILATION
Gearbox, Includes Bracket, Transfer Box / From: CA645072 / To: GA833368 		$45.56 1
7A246 LR080753
TUBE - TRANSMISSION VENTILATION
3.0 V6 Diesel / Gearbox, Includes Bracket, Transfer Box / From: GA833369 		$66.92 1
7003 LR030331
AUTOMATIC TRANSMISSION
Includes Converter, New Part-Please Check For Reman Version / From: CA000001 / To: CA635555 		$14,014.19 1
7003 LR029745
AUTOMATIC TRANSMISSION
(-) Australia, (-) India, For UK and ROW markets except USA, Russia, China, Brazil, Includes Converter, Remanufactured Part / From: CA000001 / To: CA635555 		$5,918.87 1
7003 LR043325
AUTOMATIC TRANSMISSION
Includes Converter, New Part-Please Check For Reman Version / From: CA635556 / To: DA999999 		$13,872.38 1
7003 LR036585
AUTOMATIC TRANSMISSION
Starter - Stop/Start System / Includes Converter, New Part-Please Check For Reman Version / From: EA000001 / To: FA999999 		$14,220.56 1
7003 LR043325
AUTOMATIC TRANSMISSION
Standard Electric Starter Motor / Includes Converter, New Part-Please Check For Reman Version / From: EA000001 		$13,872.38 1
7003 LR071402
AUTOMATIC TRANSMISSION
Starter - Stop/Start System / Includes Converter, New Part-Please Check For Reman Version / From: GA000001 		$13,079.42 1
7003 LR044435
AUTOMATIC TRANSMISSION
Standard Electric Starter Motor / (-) Australia, (-) India, For UK, ROW And USA Markets Except Russia, China, Brazil, Includes Converter, Remanufactured Part / From: CA635556 		$5,918.87 1
7003 LR036588
AUTOMATIC TRANSMISSION
3.0L 24V V6 Turbo Diesel Std Flow, Starter - Stop/Start System / (-) Australia, (-) India, For UK, ROW And USA Markets Except Russia, China, Brazil, Includes Converter, Remanufactured Part / From: EA000001 / To: FA999999 		$5,918.87 1
7003 LR071404
AUTOMATIC TRANSMISSION
Starter - Stop/Start System / Includes Converter, Remanufactured Part / From: GA000001 		$5,918.87 1
