Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Turbocharger (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
6726723 BOLT - HEX.HEAD $0.48 To Order
Photo Part No Description Price (each) Stock
1372721 BOLT $12.19 To Order
Photo Part No Description Price (each) Stock
LR106277 NUT - HEX. - FLANGED $2.17 IN STOCK
Photo Part No Description Price (each) Stock
LR006184 O-RING $6.73 To Order
Photo Part No Description Price (each) Stock
6988544 SCREW - PAN HEAD $0.76 To Order
Photo Part No Description Price (each) Stock
4408651 SCREW $1.26 To Order
Photo Part No Description Price (each) Stock
LR000621 SCREW $0.65 To Order
Photo Part No Description Price (each) Stock
1357627 STUD $2.53 IN STOCK
Photo Part No Description Price (each) Stock
LYR500010 STUD $6.34 To Order
Photo Part No Description Price (each) Stock
1372726 GASKET - OIL TUBE $13.35 To Order
Photo Part No Description Price (each) Stock
LR004696 HOSE - CONNECTING $55.93 To Order
Photo Part No Description Price (each) Stock
LR014428 PIPE - OIL FEED $153.43 To Order
Photo Part No Description Price (each) Stock
LR005846 TURBOCHARGER $4,903.08 To Order
LR008838 TURBOCHARGER $1,662.74 To Order
LR021042 TURBOCHARGER $2,838.31 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1331076 GASKET - OIL TUBE $4.19 To Order
Photo Part No Description Price (each) Stock
LWQ500070 SHIELD $44.58 To Order
Photo Part No Description Price (each) Stock
LR023086 ACTUATOR $64.37 To Order
Photo Part No Description Price (each) Stock
1316057 BRACKET $18.73 To Order
Photo Part No Description Price (each) Stock
PMB500020 BRACKET $19.76 To Order
View All

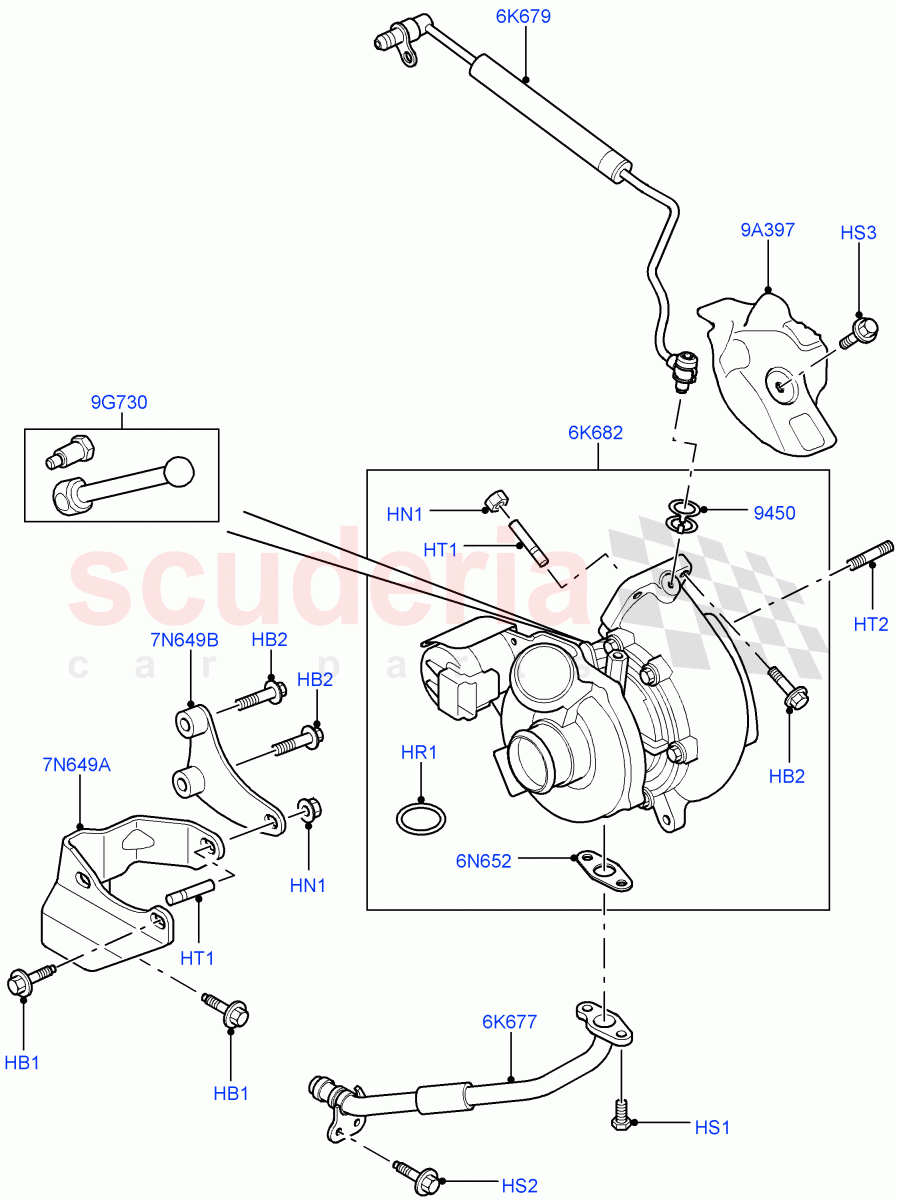

Turbocharger (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 6726723
BOLT - HEX.HEAD
M8 X 20MM / From: AA000001 		$0.48 5
HB2 1372721
BOLT
M8 x 38MM / From: AA000001 		$12.19 3
HN1 LR106277
NUT - HEX. - FLANGED
M8 / From: AA000001
IN STOCK 		$2.17 3
HR1 LR006184
O-RING
Oil - Drain / From: AA000001 		$6.73 1
HS1 6988544
SCREW - PAN HEAD
M6 x 14MM / From: AA000001 		$0.76 2
HS2 4408651
SCREW
M6 X 14MM / From: AA000001 		$1.26 2
HS3 LR000621
SCREW
M6 X 10MM / From: AA000001 		$0.65 1
HT1 1357627
STUD
M8 X 17 + M8 X 19 / From: AA000001
IN STOCK 		$2.53 3
HT2 LYR500010
STUD
M10 x 13MM, M10 X 20MM / From: AA000001 		$6.34 3
6K677 LR004696
HOSE - CONNECTING
From: AA000001 		$55.93 1
6K679 LR014428
PIPE - OIL FEED
From: AA000001 		$153.43 1
6K682 LR005846
TURBOCHARGER
New Part-Please Check For Reman Version, Production Replacement, Service Kit / From: AA000001 / To: AA533220 		$4,903.08 1
6K682 LR008838
TURBOCHARGER
Remanufactured Part, Service Kit / From: AA000001 / To: AA533220 		$1,662.74 1
6K682 LR021042
TURBOCHARGER
New Part-Please Check For Reman Version, Production Replacement, Service Kit / From: AA533221 		$2,838.31 1
6K682 LR021637
TURBOCHARGER
Remanufactured Part, Service Kit / From: AA533221 		$1,630.15 1
6N652 1331076
GASKET - OIL TUBE
Oil Tube / From: AA000001 		$4.19 1
7N649A 1316057
BRACKET
From: AA000001 		$18.73 1
7N649B PMB500020
BRACKET
From: AA000001 		$19.76 1
9A397 LWQ500070
SHIELD
From: AA000001 		$44.58 1
9G730 LR023086
ACTUATOR
Incl. pin, Includes Rod, Service Kit / From: AA513342 / To: AA526504 		$64.37 1
9450 1372726
GASKET - OIL TUBE
Banjo Washer / From: AA000001 		$13.35 1
