Fuel Injectors And Pipes (Lion Diesel 2.7 V6 (140Kw)) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Fuel Injectors And Pipes (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1387730 BOLT $1.48 To Order
LR032108 BOLT - FUEL INJECTOR $1.88 To Order
Photo Part No Description Price (each) Stock
6726723 BOLT - HEX.HEAD $0.48 To Order
Photo Part No Description Price (each) Stock
1372612 SCREW $3.57 To Order
Photo Part No Description Price (each) Stock
FS106201 Screw $0.29 To Order
Photo Part No Description Price (each) Stock
LR019118 O-RING $2.29 To Order
Photo Part No Description Price (each) Stock
LR007521 WIRE - GLOW PLUG $113.53 To Order
LR007522 WIRE - GLOW PLUG $113.53 To Order
Photo Part No Description Price (each) Stock
LR002751 CLIP $1.82 To Order
Photo Part No Description Price (each) Stock
LR005687 PIPE - FUEL $51.54 To Order
Photo Part No Description Price (each) Stock
LR014362 BRACKET $13.09 To Order
1336528 BRACKET $3.53 To Order
Photo Part No Description Price (each) Stock
LR006496 NOZZLE AND HOLDER - FUEL INJECTOR $772.15 To Order
LR008837 NOZZLE AND HOLDER - FUEL INJECTOR $470.41 To Order
Photo Part No Description Price (each) Stock
1386505 TUBE - INJECTION PUMP LEAK-OFF $207.99 To Order
Photo Part No Description Price (each) Stock
1336504 BRACKET $11.91 To Order
Photo Part No Description Price (each) Stock
LBH500250 INSULATOR $47.11 To Order
LBH500230 INSULATOR $49.27 To Order
Photo Part No Description Price (each) Stock
1354289 GLOW PLUG $28.11 To Order
Photo Part No Description Price (each) Stock
LR010347 KIT - PROTECTION CAPS $48.42 To Order
Photo Part No Description Price (each) Stock
LR004714 TUBE - FUEL SUPPLY $54.59 To Order
Photo Part No Description Price (each) Stock
LR004715 TUBE - FUEL SUPPLY $52.80 To Order
Photo Part No Description Price (each) Stock
LR020020 MANIFOLD - FUEL SUPPLY $428.08 To Order
Photo Part No Description Price (each) Stock
LR020021 MANIFOLD - FUEL SUPPLY $431.51 To Order
Photo Part No Description Price (each) Stock
LR004563 KIT - FUEL INJECTION $951.99 To Order
LR004564 KIT - FUEL INJECTION $951.99 To Order
LR004565 KIT - FUEL INJECTION $959.01 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR004566 KIT - FUEL INJECTION $55.54 To Order
LR004567 KIT - FUEL INJECTION $55.54 To Order
LR004568 KIT - FUEL INJECTION $59.46 To Order
View All

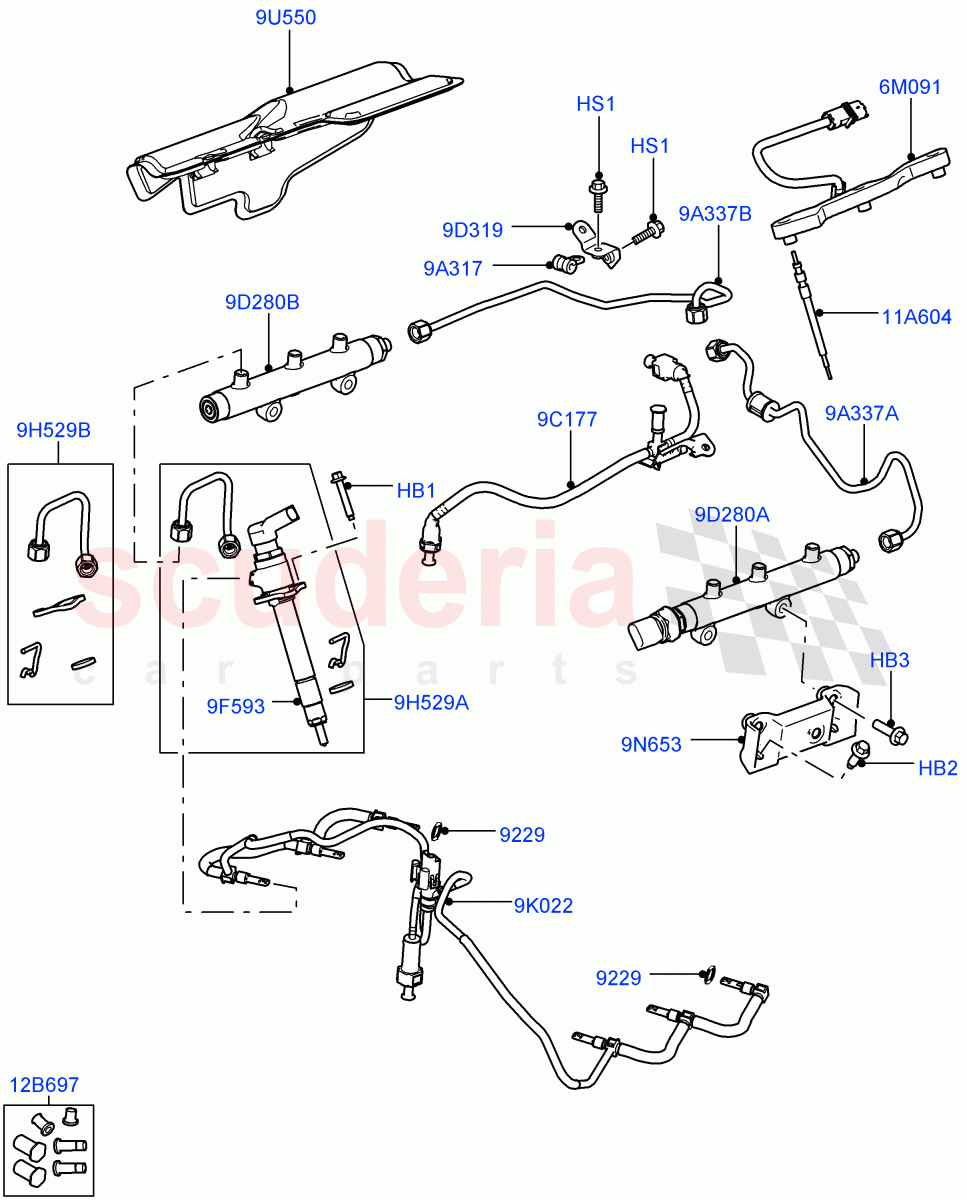

Fuel Injectors And Pipes (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 1387730
BOLT
M6 x 35MM, To Fuel Injectors / From: AA000001 / To: AA999999 		$1.48 12
HB1 LR032108
BOLT - FUEL INJECTOR
M6 x 35MM, To Fuel Injectors / From: BA000001 		$1.88 12
HB2 6726723
BOLT - HEX.HEAD
Bracket, M8 X 20MM / From: AA000001 		$0.48 4
HB3 1372612
SCREW
Bracket, M8 x 30MM / From: AA000001 		$3.57 4
HS1 FS106201
Screw
Bracket, Fuel Lines To Fuel Rail, M6 X 20MM / From: AA000001 		$0.29 4
6M091 LR007521
WIRE - GLOW PLUG
LH / From: AA000001 		$113.53 1
6M091 LR007522
WIRE - GLOW PLUG
RH / From: AA000001 		$113.53 1
9A317 LR002751
CLIP
Fuel Lines To Fuel Rail / From: AA000001 		$1.82 2
9A337A LR004714
TUBE - FUEL SUPPLY
LH / From: AA000001 		$54.59 1
9A337B LR004715
TUBE - FUEL SUPPLY
RH / From: AA000001 		$52.80 1
9C177 LR005687
PIPE - FUEL
From: AA000001 		$51.54 1
9D280A LR020020
MANIFOLD - FUEL SUPPLY
LH, Includes Fuel Pressure Sensor / From: AA000001 		$428.08 1
9D280B LR020021
MANIFOLD - FUEL SUPPLY
RH / From: AA000001 		$431.51 1
9D319 LR014362
BRACKET
LH, Fuel Lines To Fuel Rail / From: AA000001 		$13.09 1
9D319 1336528
BRACKET
RH, Fuel Lines To Fuel Rail / From: AA000001 		$3.53 1
9F593 LR006496
NOZZLE AND HOLDER - FUEL INJECTOR
New Part-Please Check For Reman Version / From: AA000001 		$772.15 6
9F593 LR008837
NOZZLE AND HOLDER - FUEL INJECTOR
Fuel Injector Only, Remanufactured Part / From: AA000001 		$470.41 6
9H529A LR004563
KIT - FUEL INJECTION
Cylinder No.1, Cylinder No.6, New Part-Please Check For Reman Version / From: AA000001 		$951.99 2
9H529A LR004564
KIT - FUEL INJECTION
Cylinder No.2, Cylinder No.5, New Part-Please Check For Reman Version / From: AA000001 		$951.99 2
9H529A LR004565
KIT - FUEL INJECTION
Cylinder No.3, Cylinder No.4, New Part-Please Check For Reman Version / From: AA000001 		$959.01 2
9H529A LR010129
KIT - FUEL INJECTION
Cylinder No.1, Cylinder No.6, Remanufactured Part / From: AA000001 		$900.87 2
9H529A LR010130
KIT - FUEL INJECTION
Cylinder No.2, Cylinder No.5, Remanufactured Part / From: AA000001 		$900.87 2
9H529A LR010131
KIT - FUEL INJECTION
Cylinder No.3, Cylinder No.4, Remanufactured Part / From: AA000001 		$863.31 2
9H529B LR004566
KIT - FUEL INJECTION
Cylinder No.1, Cylinder No.6 / From: AA000001 		$55.54 2
9H529B LR004567
KIT - FUEL INJECTION
Cylinder No.2, Cylinder No.5 / From: AA000001 		$55.54 2
9H529B LR004568
KIT - FUEL INJECTION
Cylinder No.3, Cylinder No.4 / From: AA000001 		$59.46 2
9K022 1386505
TUBE - INJECTION PUMP LEAK-OFF
Includes Fuel Temperature Sensor, Leak Off / From: AA000001 		$207.99 1
9N653 1336504
BRACKET
Fuel Rail / From: AA000001 		$11.91 2
9U550 LBH500250
INSULATOR
RH / From: AA000001 		$47.11 1
9U550 LBH500230
INSULATOR
LH / From: AA000001 		$49.27 1
11A604 1354289
GLOW PLUG
From: AA000001 		$28.11 6
12B697 LR010347
KIT - PROTECTION CAPS
Protection Cap Kit For Disassembled Fuel Injection Elements / From: AA000001 		$48.42 1
9229 LR019118
O-RING
For Fuel Tube, Leak Off / From: AA000001 		$2.29 6
