Vacuum Control And Air Injection (Lion Diesel 2.7 V6 (140Kw)) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Vacuum Control And Air Injection (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4469260 BOLT $3.52 To Order
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. $1.97 To Order
Photo Part No Description Price (each) Stock
4364422 SCREW $1.36 To Order
Photo Part No Description Price (each) Stock
1331241 STUD $1.10 To Order
Photo Part No Description Price (each) Stock
LR018327 HOSE - VACUUM $23.65 To Order
LR041269 HOSE - VACUUM $21.98 To Order
Photo Part No Description Price (each) Stock
LR013835 PUMP - VACUUM $622.26 To Order
LR101753 PUMP - VACUUM $585.63 To Order
Photo Part No Description Price (each) Stock
LR013619 GASKET - VACUUM PUMP $47.80 To Order
Photo Part No Description Price (each) Stock
1334813 CAP $6.89 To Order
Photo Part No Description Price (each) Stock
LR017456 BRACKET $6.04 To Order
Photo Part No Description Price (each) Stock
1331363 BRACKET $5.15 To Order
Photo Part No Description Price (each) Stock
LR015537 HOSE - VACUUM $126.90 To Order
LR020557 HOSE - VACUUM $138.06 To Order
Photo Part No Description Price (each) Stock
LR015538 HOSE - VACUUM $126.90 To Order
View All

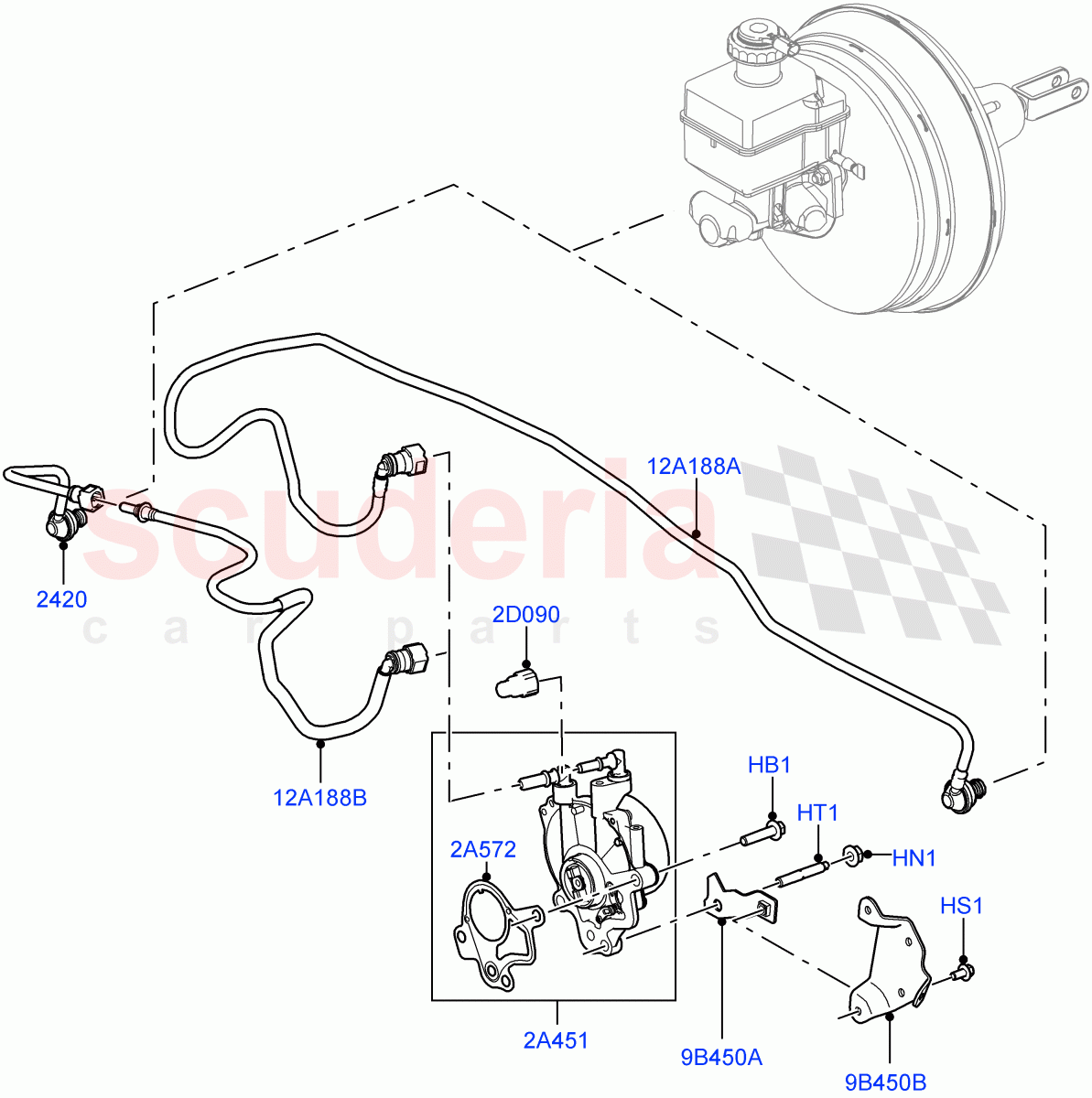

Vacuum Control And Air Injection (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 4469260
BOLT
M8 X 35MM / From: AA000001 		$3.52 2
HN1 FN108046
NUT - HEX.
Hexagonal Head, M8 / From: AA000001 		$1.97 1
HS1 4364422
SCREW
M6 X 16MM / From: AA000001 		$1.36 2
HT1 1331241
STUD
M8 X 15 + M8 X 35 / From: AA000001 		$1.10 1
2A451 LR013835
PUMP - VACUUM
From: AA000001 / To: CA615819 		$622.26 1
2A451 LR101753
PUMP - VACUUM
From: CA615820 		$585.63 1
2A572 LR013619
GASKET - VACUUM PUMP
From: AA000001 		$47.80 1
2D090 1334813
CAP
From: AA000001 		$6.89 1
9B450A LR017456
BRACKET
To Vacuum / From: AA000001 		$6.04 1
9B450B 1331363
BRACKET
From: AA000001 		$5.15 1
12A188A LR015537
HOSE - VACUUM
LHD / Pump To Booster / From: AA000001 / To: AA536980 		$126.90 1
12A188A LR020557
HOSE - VACUUM
LHD / Pump To Booster / From: AA536981 		$138.06 1
12A188B LR015538
HOSE - VACUUM
RHD / Vacuum Pump Hose / From: AA000001 		$126.90 1
2420 LR018327
HOSE - VACUUM
RHD / Brake Vacuum Booster / From: AA000001 / To: CA627987 		$23.65 1
2420 LR041269
HOSE - VACUUM
RHD / Brake Vacuum Booster / From: CA627988 		$21.98 1
