Name: Exhaust Gas Recirculation (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001)
Rating: 4.0 (1 reviews)

Exhaust Gas Recirculation (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

View All

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Exhaust Gas Recirculation (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001)

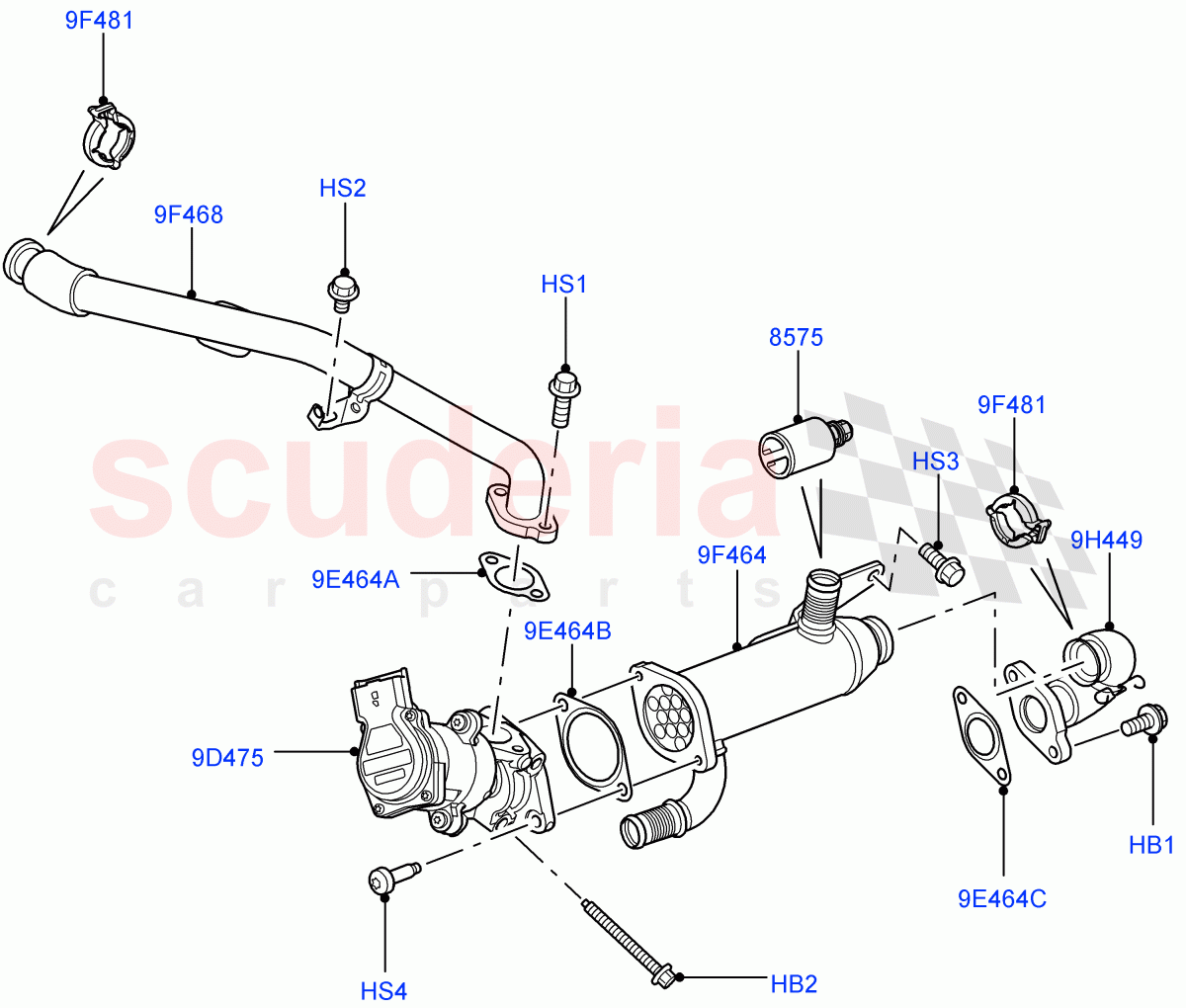

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1316028	BOLT	$1.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004123	BOLT	$3.51	To Order

Photo	Part No	Description	Price (each)	Stock
	4467593	BOLT - HEX.HEAD	$0.71	To Order

Photo	Part No	Description	Price (each)	Stock
	1148055	SCREW	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	6726224	SCREW	$0.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006028	SCREW	$2.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006115	THERMOSTAT - EGR	$21.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018323	VALVE - EXHAUST GAS RECIRCULATION	$392.99	To Order
	LR018324	VALVE - EXHAUST GAS RECIRCULATION	$392.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004535	COOLER - EGR	$510.76	To Order
	LR004536	COOLER - EGR	$510.76	To Order

Photo	Part No	Description	Price (each)	Stock
	1338650	TUBE - EGR VALVE TO INLET MANIFOLD	$81.49	To Order
	1316131	TUBE - EGR VALVE TO INLET MANIFOLD	$77.78	To Order
	LR066839	TUBE - EGR VALVE TO INLET MANIFOLD	$433.57	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1311338	CLAMP - TUBE	$3.85	To Order

Photo	Part No	Description	Price (each)	Stock
	1348612	TUBE - EGR VALVE TO EXHAUST MANIFLD	$54.14	To Order
	1348624	TUBE - EGR VALVE TO EXHAUST MANIFLD	$64.35	To Order
	LR066840	TUBE - EGR VALVE TO EXHAUST MANIFLD	$251.78	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1331267	GASKET	$10.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004532	GASKET	$13.59	To Order

Photo	Part No	Description	Price (each)	Stock
	1331270	GASKET	$10.93	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	1316028	BOLT	1316028 BOLT Exhaust Manifold, M6 X 16MM / From: AA000001	$1.31	4
HB2	LR004123	BOLT	LR004123 BOLT 4 Per Package, EGR Valve, M6 x 60MM / From: AA000001	$3.51	6
HS1	4467593	BOLT - HEX.HEAD	4467593 BOLT - HEX.HEAD EGR Valve, Hexagonal Head, M6 X 20MM, Outlet Tube / From: AA000001	$0.71	4
HS2	1148055	SCREW	1148055 SCREW M6 x 12MM / From: AA000001	$0.41	2
HS3	6726224	SCREW	6726224 SCREW M6 X 16MM / From: AA000001	$0.64	2
HS4	LR006028	SCREW	LR006028 SCREW M6 X 16MM, Torx / From: AA000001	$2.71	4
9D475	LR018323	VALVE - EXHAUST GAS RECIRCULATION	LR018323 VALVE - EXHAUST GAS RECIRCULATION LH / From: AA000001	$392.99	1
9D475	LR018324	VALVE - EXHAUST GAS RECIRCULATION	LR018324 VALVE - EXHAUST GAS RECIRCULATION RH / From: AA000001	$392.99	1
9E464A	1331267	GASKET	1331267 GASKET EGR Valve, Outlet / From: AA000001	$10.96	2
9E464B	LR004532	GASKET	LR004532 GASKET EGR Valve, Inlet / From: AA000001	$13.59	2
9E464C	1331270	GASKET	1331270 GASKET From: AA000001	$10.93	2
9F464	LR004535	COOLER - EGR	LR004535 COOLER - EGR LH / From: AA000001	$510.76	1
9F464	LR004536	COOLER - EGR	LR004536 COOLER - EGR RH / From: AA000001	$510.76	1
9F468	1338650	TUBE - EGR VALVE TO INLET MANIFOLD	1338650 TUBE - EGR VALVE TO INLET MANIFOLD LH / From: AA000001 / To: AA666665	$81.49	1
9F468	1316131	TUBE - EGR VALVE TO INLET MANIFOLD	1316131 TUBE - EGR VALVE TO INLET MANIFOLD RH / From: AA000001 / To: AA666665	$77.78	1
9F468	LR066839	TUBE - EGR VALVE TO INLET MANIFOLD	LR066839 TUBE - EGR VALVE TO INLET MANIFOLD LH / From: AA666666	$433.57	1
9F468	LR066841	TUBE - EXHAUST GAS RECIRCULATION	LR066841 TUBE - EXHAUST GAS RECIRCULATION RH / From: AA666666	$377.16	1
9F481	1311338	CLAMP - TUBE	1311338 CLAMP - TUBE EGR Tube / From: AA000001	$3.85	4
9H449	1348612	TUBE - EGR VALVE TO EXHAUST MANIFLD	1348612 TUBE - EGR VALVE TO EXHAUST MANIFLD LH / From: AA000001 / To: BA999999	$54.14	1
9H449	1348624	TUBE - EGR VALVE TO EXHAUST MANIFLD	1348624 TUBE - EGR VALVE TO EXHAUST MANIFLD RH / From: AA000001 / To: AA666665	$64.35	1
9H449	LR066840	TUBE - EGR VALVE TO EXHAUST MANIFLD	LR066840 TUBE - EGR VALVE TO EXHAUST MANIFLD LH / From: CA000001	$251.78	1
9H449	LR066838	TUBE - EGR VALVE TO EXHAUST MANIFLD	LR066838 TUBE - EGR VALVE TO EXHAUST MANIFLD RH / From: AA666666	$251.78	1
8575	LR006115	THERMOSTAT - EGR	LR006115 THERMOSTAT - EGR From: AA000001	$21.58	2

Exhaust Gas Recirculation (Lion Diesel 2.7 V6 (140Kw)) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Exhaust Gas Recirculation (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001)
