Cylinder Head (Lion Diesel 2.7 V6 (140Kw)) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Cylinder Head (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR000300 BOLT $6.50 To Order
Photo Part No Description Price (each) Stock
1102774 PLUG - ENGINE $6.54 To Order
Photo Part No Description Price (each) Stock
4185951 PLUG - EXPANSION $1.16 To Order
LR029603 PLUG - EXPANSION $2.46 To Order
Photo Part No Description Price (each) Stock
7062845 SCREW $3.03 To Order
Photo Part No Description Price (each) Stock
RYG500220 SCREW $3.46 IN STOCK
Photo Part No Description Price (each) Stock
1348677 GASKET-CYLINDER HEAD $48.72 To Order
LR009719 GASKET - CYLINDER HEAD $96.05 To Order
LR009721 GASKET - CYLINDER HEAD $96.05 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1331316 BOLT - CYLINDER HEAD $4.47 To Order
Photo Part No Description Price (each) Stock
LR008130 VALVE - EXHAUST $32.44 To Order
Photo Part No Description Price (each) Stock
1311281 VALVE - INLET $21.61 To Order
Photo Part No Description Price (each) Stock
LR006720 SPRING - VALVE $7.45 To Order
LR071681 SPRING - VALVE $12.54 To Order
Photo Part No Description Price (each) Stock
1311283 RETAINER - VALVE SPRING $3.88 To Order
Photo Part No Description Price (each) Stock
1072051 COLLET - VALVE SPRING RETAINER $7.37 To Order
Photo Part No Description Price (each) Stock
1336545 ARM - FOLLOWER $33.64 To Order
Photo Part No Description Price (each) Stock
1311285 SEAL - VALVE STEM $13.97 To Order
Photo Part No Description Price (each) Stock
1316119 SWITCH - OIL PRESSURE $28.76 To Order
Photo Part No Description Price (each) Stock
1311302 CYLINDER HEAD $1,994.57 To Order
1311303 CYLINDER HEAD $1,994.57 To Order
Photo Part No Description Price (each) Stock
LR012732 CYLINDER HEAD $2,758.23 To Order
LR012733 CYLINDER HEAD $2,758.23 To Order
LR034017 CYLINDER HEAD $2,367.95 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR007808 SENSOR - ENGINE KNOCK $124.77 IN STOCK
Photo Part No Description Price (each) Stock
LR019287 SENSOR - CAMSHAFT POSITION $311.91 To Order
View All

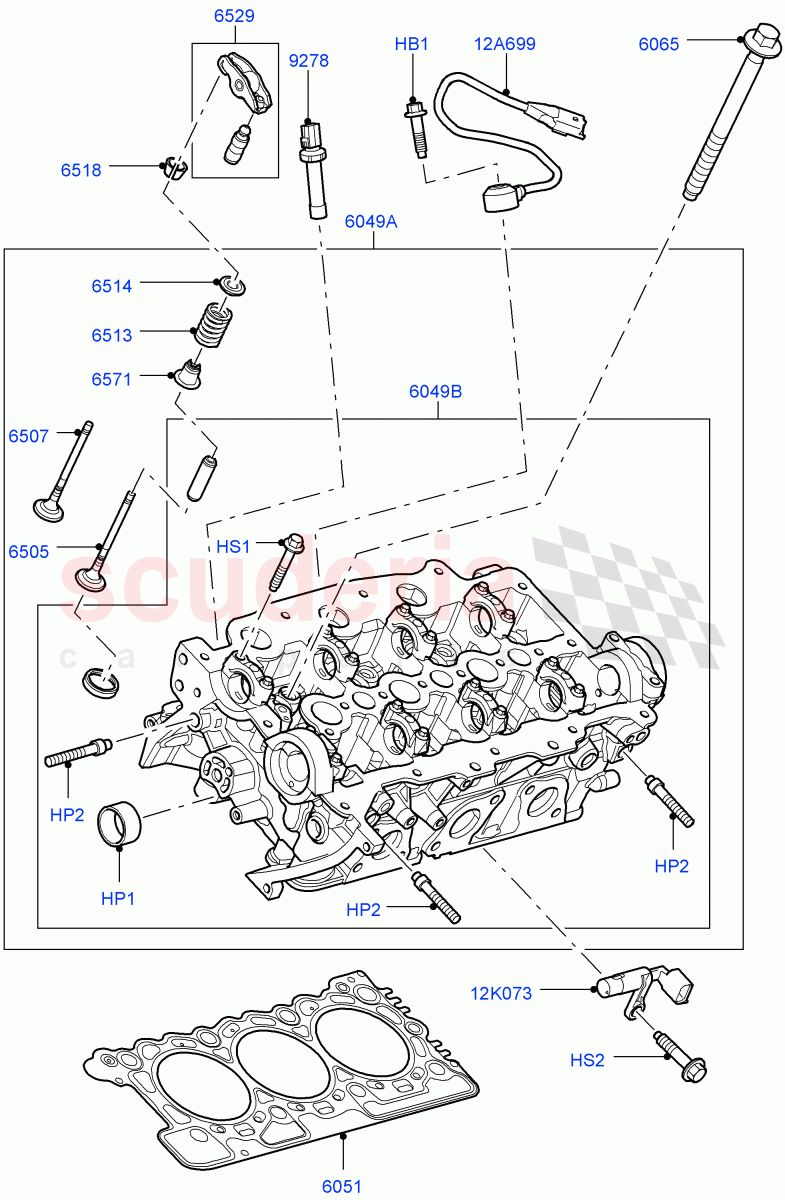

Cylinder Head (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR000300
BOLT
knock sensor, M8 X 30 / From: AA000001 		$6.50 2
HP1 1102774
PLUG - ENGINE
22MM / From: AA000001 		$6.54 4
HP2 4185951
PLUG - EXPANSION
O = 10MM / From: AA000001 / To: AA999999 		$1.16 7
HP2 LR029603
PLUG - EXPANSION
O = 10MM / From: BA000001 		$2.46 7
HS1 7062845
SCREW
M6 x 35MM / From: AA000001 		$3.03 36
HS2 RYG500220
SCREW
Camshaft Position Sensor, Hexagonal Head, M6 X 20MM / From: AA000001
IN STOCK 		$3.46 2
12A699 LR007808
SENSOR - ENGINE KNOCK
EU2 / From: AA000001
IN STOCK 		$124.77 2
12K073 LR019287
SENSOR - CAMSHAFT POSITION
Camshaft Position Sensor / From: AA000001 		$311.91 2
6049A 1311302
CYLINDER HEAD
RH, With Valves / From: AA000001 		$1,994.57 1
6049A 1311303
CYLINDER HEAD
LH, With Valves / From: AA000001 		$1,994.57 1
6049B LR012732
CYLINDER HEAD
RH, Less Valves / From: AA000001 / To: CA615752 		$2,758.23 1
6049B LR012733
CYLINDER HEAD
LH, Less Valves / From: AA000001 / To: CA615752 		$2,758.23 1
6049B LR034017
CYLINDER HEAD
RH, Less Valves / From: CA615753 / To: CA632230 		$2,367.95 1
6049B LR034015
CYLINDER HEAD
LH, Less Valves / From: CA615753 / To: CA632230 		$2,684.72 1
6049B LR038745
Cylinder Head
RH, Less Valves / From: CA632231 / To: CA634165 		- 1 Enquire
6049B LR038746
Cylinder Head
LH, Less Valves / From: CA632231 / To: CA634165 		- 1 Enquire
6049B LR054815
CYLINDER HEAD
RH, Less Valves / From: CA634166 		$1,935.65 1
6049B LR054816
CYLINDER HEAD
LH, Less Valves / From: CA634166 / To: CA639715 		$1,935.65 1
6049B LR087727
CYLINDER HEAD
LH, Less Valves / From: CA639716 		$2,029.18 1
6051 1348677
GASKET-CYLINDER HEAD
Grade 1 / From: AA000001 		$48.72 -
6051 LR009719
GASKET - CYLINDER HEAD
Grade 2 / From: AA000001 		$96.05 -
6051 LR009721
GASKET - CYLINDER HEAD
Grade 3 / From: AA000001 		$96.05 -
6051 LR009722
GASKET - CYLINDER HEAD
Grade 4 / From: AA000001 		$96.05 -
6051 LR009723
GASKET-CYLINDER HEAD
Grade 5 / From: AA000001 		$96.05 -
6065 1331316
BOLT - CYLINDER HEAD
M13 X 155 / From: AA000001 		$4.47 16
6505 LR008130
VALVE - EXHAUST
From: AA000001 		$32.44 12
6507 1311281
VALVE - INLET
From: AA000001 		$21.61 12
6513 LR006720
SPRING - VALVE
From: AA000001 / To: AA999999 		$7.45 24
6513 LR071681
SPRING - VALVE
From: BA000001 		$12.54 24
6514 1311283
RETAINER - VALVE SPRING
From: AA000001 		$3.88 24
6518 1072051
COLLET - VALVE SPRING RETAINER
From: AA000001 		$7.37 48
6529 1336545
ARM - FOLLOWER
From: AA000001 		$33.64 24
6571 1311285
SEAL - VALVE STEM
From: AA000001 		$13.97 24
9278 1316119
SWITCH - OIL PRESSURE
From: AA000001 		$28.76 1
