Cylinder Block And Plugs (Lion Diesel 2.7 V6 (140Kw)) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Cylinder Block And Plugs (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1305834 BOLT $2.28 To Order
Photo Part No Description Price (each) Stock
1225745 BOLT AND WASHER - HEX.HEAD $2.96 IN STOCK
Photo Part No Description Price (each) Stock
3026220 PIN $6.27 To Order
LR023119 DOWEL - PIN $1.21 To Order
Photo Part No Description Price (each) Stock
LR003517 PLUG - ENGINE $8.36 To Order
Photo Part No Description Price (each) Stock
LR000376 PLUG - THREADED $9.84 To Order
Photo Part No Description Price (each) Stock
1316062 PLUG - ENGINE $6.26 To Order
Photo Part No Description Price (each) Stock
LR000375 PLUG $4.17 To Order
Photo Part No Description Price (each) Stock
4467593 BOLT - HEX.HEAD $0.71 To Order
Photo Part No Description Price (each) Stock
6726224 SCREW $0.64 To Order
Photo Part No Description Price (each) Stock
LR022136 COVER - ACCESS HOLE $3.70 To Order
Photo Part No Description Price (each) Stock
LR005994 GASKET - OIL PAN $39.10 IN STOCK
Photo Part No Description Price (each) Stock
4603182 DOWEL $28.83 To Order
Photo Part No Description Price (each) Stock
1311291 TUBE $57.56 To Order
Photo Part No Description Price (each) Stock
3932421 PLUG - ENGINE $8.14 To Order
Photo Part No Description Price (each) Stock
LCM500010 PLUG - ENGINE $1.84 To Order
Photo Part No Description Price (each) Stock
LR009793 SENSOR - CRANKSHAFT POSITION - CPS $183.74 To Order
Photo Part No Description Price (each) Stock
1311310 RESERVOIR $14.06 To Order
Photo Part No Description Price (each) Stock
1316115 RETAINER AND SEAL - CRANKSHAFT $64.99 To Order
LR032930 RETAINER - CRANKSHAFT OIL SEAL $72.62 To Order
Photo Part No Description Price (each) Stock
LR011693 STIFFENER $382.09 To Order
View All

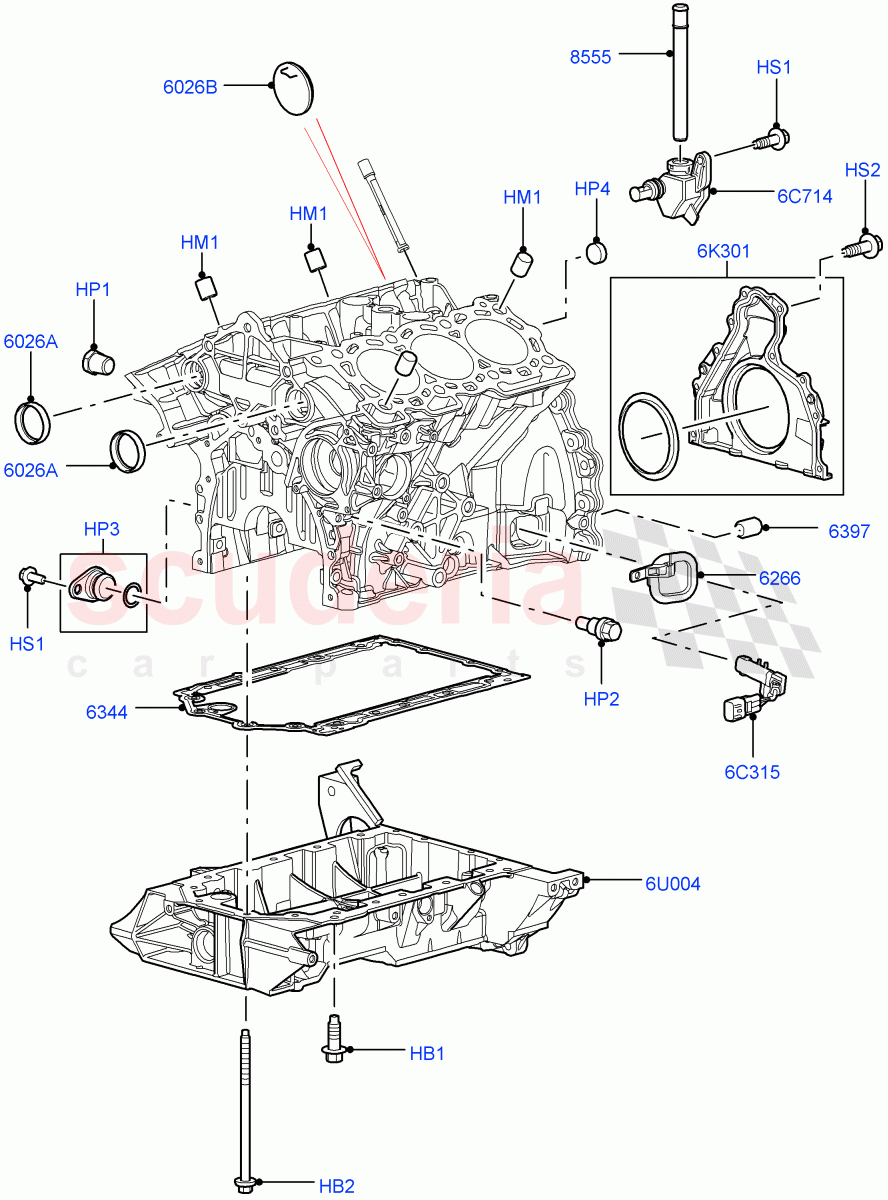

Cylinder Block And Plugs (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 1305834
BOLT
M8 X 20MM / From: AA000001 		$2.28 6
HB2 1225745
BOLT AND WASHER - HEX.HEAD
Bolt And Washer, M6 X 105MM / From: AA000001
IN STOCK 		$2.96 12
HM1 3026220
PIN
4 Per Package, Hollow Type, M16 x 19MM, Straight Dowel / From: AA000001 / To: AA543805 		$6.27 4
HM1 LR023119
DOWEL - PIN
4 Per Package, Hollow Type, M16 x 19MM, Pin - Dowell, Straight Dowel / From: AA543806 		$1.21 4
HP1 LR003517
PLUG - ENGINE
1/4" x 18 NPSF / From: AA000001 		$8.36 1
HP2 LR000376
PLUG - THREADED
M10 X 11.5, Threaded Timing Plug / From: AA000001 		$9.84 1
HP3 1316062
PLUG - ENGINE
Engine / From: AA000001 		$6.26 2
HP4 LR000375
PLUG 		$4.17 1
HS1 4467593
BOLT - HEX.HEAD
Hexagonal Head, M6 X 20MM / From: AA000001 		$0.71 1
HS2 6726224
SCREW
M6 X 16MM / From: AA000001 		$0.64 12
6C315 LR009793
SENSOR - CRANKSHAFT POSITION - CPS
From: AA000001 		$183.74 1
6C714 1311310
RESERVOIR
From: AA000001 		$14.06 1
6K301 1316115
RETAINER AND SEAL - CRANKSHAFT
From: AA000001 / To: BA596925 		$64.99 1
6K301 LR032930
RETAINER - CRANKSHAFT OIL SEAL
Rear / From: BA596926 		$72.62 1
6U004 LR011693
STIFFENER
From: AA000001 		$382.09 1
6026A 3932421
PLUG - ENGINE
Cup Type, OD=33.6MM, Service Only Oversize / From: AA000001 		$8.14 2
6026B LCM500010
PLUG - ENGINE
Converter Access Plug / From: AA000001 		$1.84 1
6266 LR022136
COVER - ACCESS HOLE
Access Hole Cover, Sensor - Crankshaft Position - CPS / From: AA000001 		$3.70 1
6344 LR005994
GASKET - OIL PAN
Oil Pan / From: AA000001
IN STOCK 		$39.10 1
6397 4603182
DOWEL
15.7MM, Pin - Dowell / From: AA000001 		$28.83 2
8555 1311291
TUBE
From: AA000001 		$57.56 1
