Rear Knuckle And Hub (Solihull Plant Build) ((V) Fromha000001)

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Rear Knuckle And Hub (Solihull Plant Build) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR038196 FLANGED BOLT M14 X 125 $10.94 IN STOCK
Photo Part No Description Price (each) Stock
LR038382 CIRCLIP $5.79 IN STOCK
Photo Part No Description Price (each) Stock
LR024151 NUT AND WASHER - HEX. $10.23 IN STOCK
Photo Part No Description Price (each) Stock
LR161093 NUT $1.76 IN STOCK
Photo Part No Description Price (each) Stock
LR081538 HUB - WHEEL $212.17 To Order
Photo Part No Description Price (each) Stock
LR077894 BEARING - WHEEL HUB $143.17 To Order
LR133541 BEARING - WHEEL HUB $144.06 To Order
Photo Part No Description Price (each) Stock
LR094541 KNUCKLE - REAR WHEEL $781.95 To Order
LR094539 KNUCKLE - REAR WHEEL $781.95 To Order
LR098782 KNUCKLE - REAR WHEEL $803.67 To Order
...and 5 more part variants. See table on right for more details.
View All

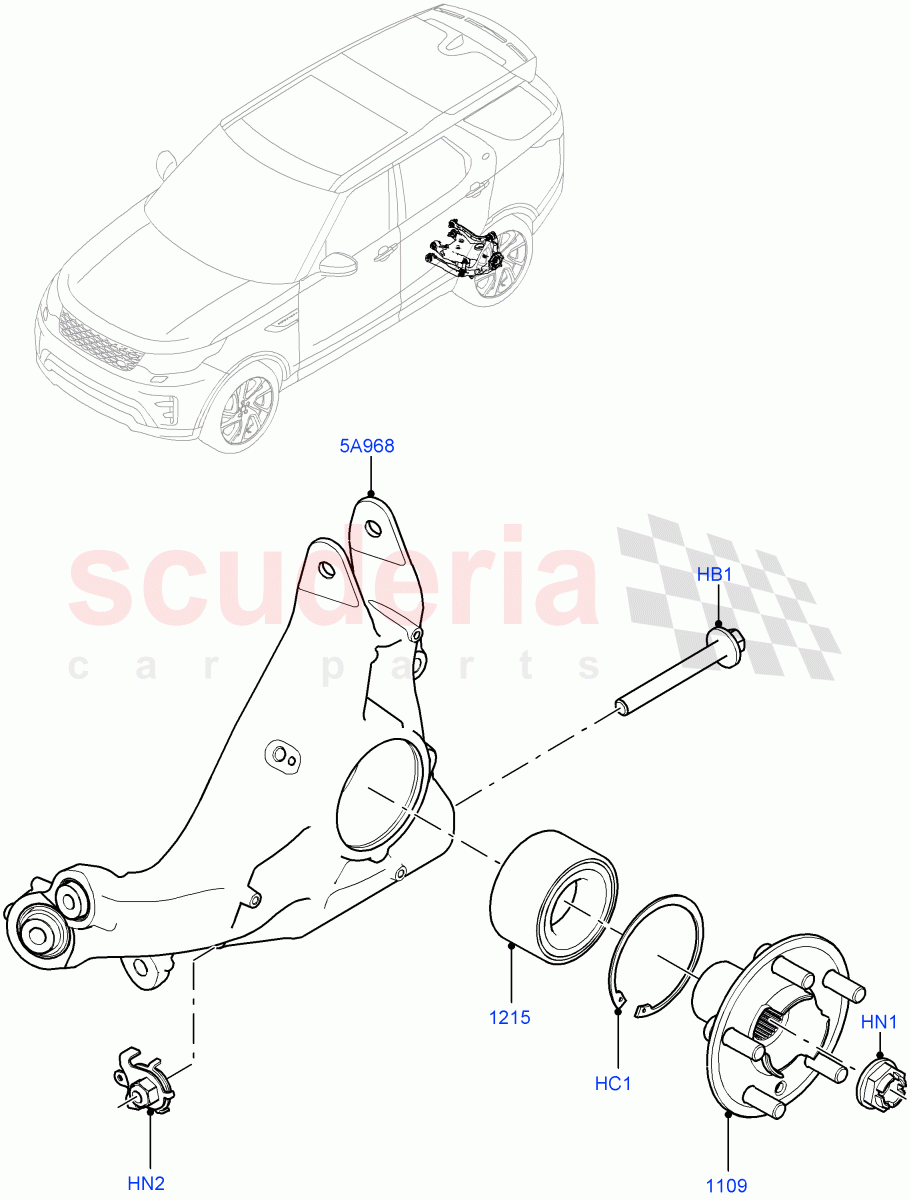

Rear Knuckle And Hub (Solihull Plant Build) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR038196
FLANGED BOLT M14 X 125
Hexagonal Head, M14 X 125
IN STOCK 		$10.94 2
HC1 LR038382
CIRCLIP
95MM, Retaining Ring
IN STOCK 		$5.79 2
HN1 LR024151
NUT AND WASHER - HEX.
M24X2.0
IN STOCK 		$10.23 2
HN2 LR161093
NUT
Flag Type, M14
IN STOCK 		$1.76 2
5A968 LR094541
KNUCKLE - REAR WHEEL
With Standard Duty Coil Spring Susp / LH / To: HA999999 		$781.95 1
5A968 LR094539
KNUCKLE - REAR WHEEL
With Standard Duty Coil Spring Susp / RH / To: HA999999 		$781.95 1
5A968 LR098782
KNUCKLE - REAR WHEEL
With Standard Duty Coil Spring Susp / LH / From: JA000001 		$803.67 1
5A968 LR098784
KNUCKLE - REAR WHEEL
With Four Corner Air Suspension / LH / From: JA000001 		$803.67 1
5A968 LR098781
KNUCKLE - REAR WHEEL
With Standard Duty Coil Spring Susp / RH / From: JA000001 		$803.67 1
5A968 LR098783
KNUCKLE - REAR WHEEL
With Four Corner Air Suspension / RH / From: JA000001 		$803.67 1
5A968 LR094540
KNUCKLE - REAR WHEEL
With Four Corner Air Suspension / RH / To: HA999999 		$781.95 1
5A968 LR094542
KNUCKLE - REAR WHEEL
With Four Corner Air Suspension / LH / To: HA999999 		$781.95 1
1109 LR081538
HUB - WHEEL
RH/LH 		$212.17 2
1215 LR077894
BEARING - WHEEL HUB
RH/LH / To: KA096500 		$143.17 2
1215 LR133541
BEARING - WHEEL HUB
RH/LH / From: KA096501 		$144.06 2
