Front Axle Case (Nitra Plant Build) (2.0L I4 Dsl High Dohc Aj200, 2.0L I4 Dsl Mid Dohc Aj200, 3.0...

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Front Axle Case (Nitra Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL MID DOHC AJ200, 3.0...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR038977 BOLT $4.89 To Order
Photo Part No Description Price (each) Stock
LR039049 BOLT $5.46 To Order
Photo Part No Description Price (each) Stock
FB110186 BOLT - HEX.HEAD $1.25 To Order
Photo Part No Description Price (each) Stock
FS110256 BOLT - FLANGED HEX. $1.81 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.48 IN STOCK
Photo Part No Description Price (each) Stock
TYP500100 SCREW $1.18 To Order
Photo Part No Description Price (each) Stock
LR085630 SCREW $4.33 To Order
Photo Part No Description Price (each) Stock
LR050513 SCREW $1.42 To Order
Photo Part No Description Price (each) Stock
LR050515 SCREW $1.22 To Order
Photo Part No Description Price (each) Stock
FB110096 SCREW $2.80 IN STOCK
Photo Part No Description Price (each) Stock
LR158113 SEAL - OIL $23.08 To Order
Photo Part No Description Price (each) Stock
LR089624 DIFFERENTIAL - FRONT $4,132.23 To Order
LR089623 DIFFERENTIAL - FRONT $3,754.28 To Order
LR124997 DIFFERENTIAL - FRONT $2,498.47 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
TYB500110 PLUG - OIL DRAIN $4.60 To Order
Photo Part No Description Price (each) Stock
LR039394 HOSE - VENT $15.40 To Order
Photo Part No Description Price (each) Stock
LR091706 DAMPER - DAMPING MASS $165.48 To Order
LR062297 DAMPER - DAMPING MASS $137.55 To Order
Photo Part No Description Price (each) Stock
LR052323 KIT - FDU TUBE $237.92 To Order
Photo Part No Description Price (each) Stock
LR038842 BRACKET - FDU TUBE SUPPORT $54.26 To Order
Photo Part No Description Price (each) Stock
LR038826 HOSE - VENT $35.86 To Order
LR082620 HOSE - VENT $24.02 To Order
Photo Part No Description Price (each) Stock
LR067897 KIT - PINION REPAIR $174.77 To Order
Photo Part No Description Price (each) Stock
LR090577 INSULATOR - BUSH TYPE $37.40 To Order
Photo Part No Description Price (each) Stock
LR056079 INSULATOR - BUSH TYPE $73.69 To Order
Photo Part No Description Price (each) Stock
TYB500060 PLUG - FILLER $3.49 To Order
Photo Part No Description Price (each) Stock
LR087163 WASHER - DIFFERENTIAL MOUNTING $32.63 To Order
Photo Part No Description Price (each) Stock
LR056077 WASHER - DIFFERENTIAL MOUNTING $54.86 To Order
Photo Part No Description Price (each) Stock
LR056078 WASHER - DIFFERENTIAL MOUNTING $41.38 To Order
Photo Part No Description Price (each) Stock
LR019019 SEAL - SPECIAL $19.30 To Order
View All

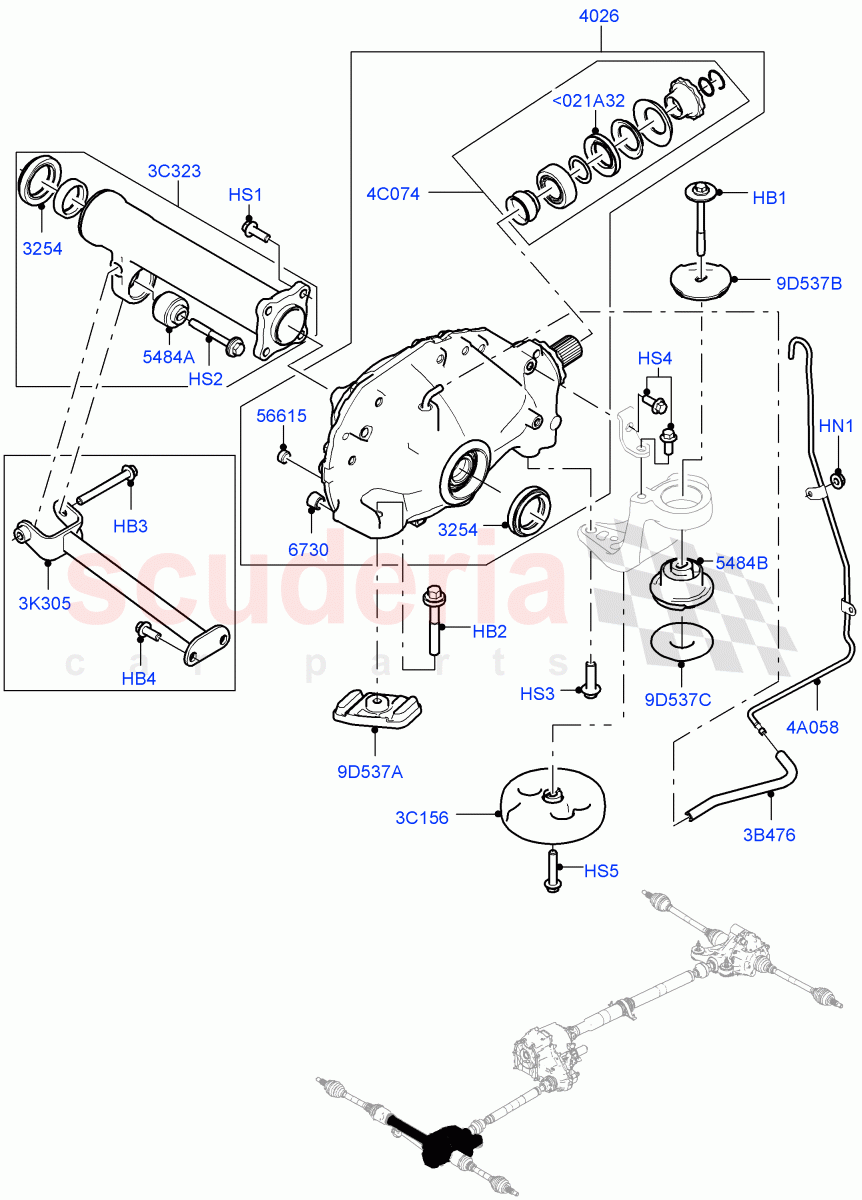

Front Axle Case (Nitra Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL MID DOHC AJ200, 3.0 V6 D Gen2 Twin Turbo, 3.0 V6 D Gen2 Mono Turbo, 3.0 V6 D Low MT ROW) ((V) FROMK2000001, (V) TOL2999999) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<021A32 LR019019
SEAL - SPECIAL
Oil / From: K2000001 		$19.30 1
HB1 LR038977
BOLT
Hexagonal Head, M10 X 100 / From: K2000001 		$4.89 1
HB2 LR039049
BOLT
Hexagonal Head, M12 x 85MM / From: K2000001 		$5.46 1
HB3 FB110186
BOLT - HEX.HEAD
HEX Flange, M10 X 90MM / From: K2000001 		$1.25 1
HB4 FS110256
BOLT - FLANGED HEX.
2.0L I4 High DOHC AJ200 Petrol / M10 X 25MM / From: K2000001 		$1.81 2
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: K2000001
IN STOCK 		$1.48 2
HS1 TYP500100
SCREW
Hexagonal Head, M10 X 30MM / From: K2000001 		$1.18 4
HS2 LR085630
SCREW
M10 x 75MM, Screw And Washer / From: K2000001 		$4.33 1
HS3 LR050513
SCREW
Hexagonal Head, M12 x 40MM / From: K2000001 		$1.42 3
HS4 LR050515
SCREW
Hexagonal Head, M10 x 26MM / From: K2000001 		$1.22 2
HS5 FB110096
SCREW
HEX Flange, Hexagonal Head, M10 X 45 / From: K2000001
IN STOCK 		$2.80 1
3B476 LR039394
HOSE - VENT
From: K2000001 		$15.40 1
3C156 LR091706
DAMPER - DAMPING MASS
3.0 V6 D Low MT ROW / From: K2000001 		$165.48 1
3C156 LR062297
DAMPER - DAMPING MASS
2.0L I4 DSL MID DOHC AJ200 / From: K2000001 		$137.55 1
3C323 LR052323
KIT - FDU TUBE
Front Drive Unit Tube, Includes Tube, Bearing, Seal, Bush And Screw / From: K2000001 		$237.92 1
3K305 LR038842
BRACKET - FDU TUBE SUPPORT
2.0L I4 High DOHC AJ200 Petrol / From: K2000001 		$54.26 1
4A058 LR038826
HOSE - VENT
3.0 V6 D Low MT ROW / Breather Pipe / From: K2000001 		$35.86 1
4A058 LR082620
HOSE - VENT
2.0L I4 DSL MID DOHC AJ200 / Breather Pipe / From: K2000001 		$24.02 1
4C074 LR067897
KIT - PINION REPAIR
Includes Seal / From: K2000001 		$174.77 1
9D537A LR087163
WASHER - DIFFERENTIAL MOUNTING
Front / From: K2000001 		$32.63 1
9D537B LR056077
WASHER - DIFFERENTIAL MOUNTING
Rear, Upper / From: K2000001 		$54.86 1
9D537C LR056078
WASHER - DIFFERENTIAL MOUNTING
Lower, Rear / From: K2000001 		$41.38 1
3254 LR158113
SEAL - OIL
Driveshaft / From: K2000001 		$23.08 2
4026 LR089624
DIFFERENTIAL - FRONT
3.0 V6 D Low MT ROW / New Part-Please Check For Reman Version / From: K2000001 		$4,132.23 1
4026 LR089623
DIFFERENTIAL - FRONT
2.0L I4 DSL MID DOHC AJ200 / New Part-Please Check For Reman Version / From: K2000001 		$3,754.28 1
4026 LR124997
DIFFERENTIAL - FRONT
3.0 V6 D Gen2 Mono Turbo / Remanufactured Part / From: K2000001 		$2,498.47 1
4026 LR125002
DIFFERENTIAL - FRONT
2.0L I4 DSL MID DOHC AJ200 / Remanufactured Part / From: K2000001 		$2,261.08 1
5484A LR090577
INSULATOR - BUSH TYPE
From: K2000001 		$37.40 1
5484B LR056079
INSULATOR - BUSH TYPE
Differential / From: K2000001 		$73.69 1
6730 TYB500110
PLUG - OIL DRAIN
Drain Plug, Plug - Oil Drain / From: K2000001 		$4.60 1
56615 TYB500060
PLUG - FILLER
Filler Plug / From: K2000001 		$3.49 1
