Name: Fuel Tank & Related Parts (Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMHA000001)
Rating: 5.0 (1 reviews)

Fuel Tank & Related Parts (Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Fuel Tank & Related Parts (Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMHA000001)

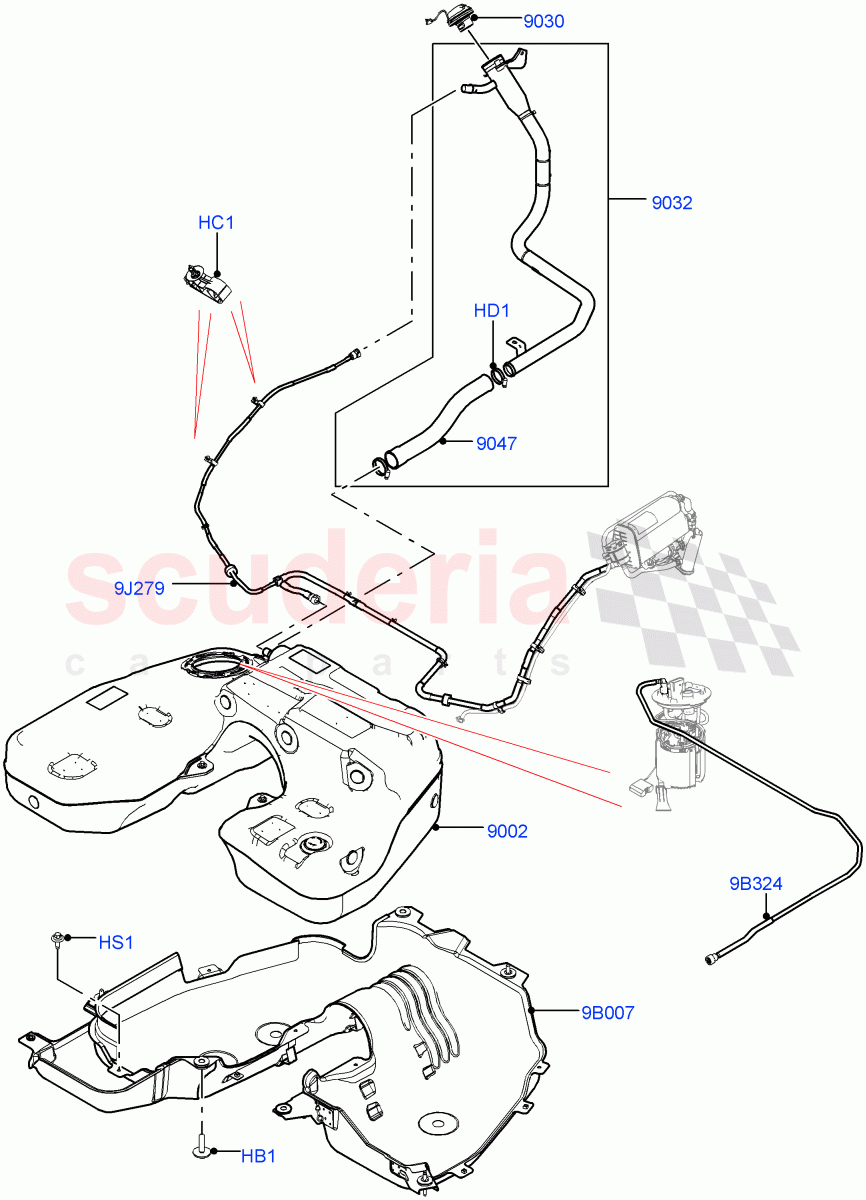

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR093364	BOLT	$2.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094032	CLIP - HOSE	$4.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061655	CLAMP - FUEL SUPPLY TUBE	$5.86	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082726	TANK - FUEL	$1,259.09	To Order

Photo	Part No	Description	Price (each)	Stock
	202123475	CAP - FUEL TANK FILLER	$40.20	To Order
	LR053665	CAP - FUEL TANK FILLER	$36.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082768	PIPE - FUEL FILLER	$346.81	To Order
	LR082767	PIPE - FUEL FILLER	$333.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082774	HOSE - FILLER PIPE	$143.79	To Order
	LR082775	HOSE - FILLER PIPE	$140.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082727	SHIELD - FUEL TANK	$660.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082728	TUBE - FUEL	$65.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082439	TUBE - VENTILATION	$168.29	To Order
	LR123904	TUBE - VENTILATION	$164.18	To Order
	LR082442	TUBE - VENTILATION	$94.16	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR093364	BOLT	LR093364 BOLT Hexagonal Head, M10 X 50MM, To Body	$2.72	6
HC1	LR094032	CLIP - HOSE	LR094032 CLIP - HOSE Breather Pipe, Plastic	$4.45	2
HD1	LR061655	CLAMP - FUEL SUPPLY TUBE	LR061655 CLAMP - FUEL SUPPLY TUBE 35-50 x 9	$5.86	1
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Fuel Tank To Shield, Hexagonal Head, M6X30	$4.24	5
9B007	LR082727	SHIELD - FUEL TANK	LR082727 SHIELD - FUEL TANK	$660.23	1
9B324	LR082728	TUBE - FUEL	LR082728 TUBE - FUEL Feed	$65.25	1
9J279	LR082439	TUBE - VENTILATION	LR082439 TUBE - VENTILATION Narrow Filler Neck - Unleaded / To: KA088554	$168.29	1
9J279	LR123904	TUBE - VENTILATION	LR123904 TUBE - VENTILATION Narrow Filler Neck - Unleaded / From: KA088555	$164.18	1
9J279	LR082442	TUBE - VENTILATION	LR082442 TUBE - VENTILATION Fuel Tank Filler Neck - Unleaded	$94.16	1
9002	LR082726	TANK - FUEL	LR082726 TANK - FUEL	$1,259.09	1
9030	202123475	CAP - FUEL TANK FILLER	202123475 CAP - FUEL TANK FILLER Narrow Filler Neck - Unleaded	$40.20	1
9030	LR053665	CAP - FUEL TANK FILLER	LR053665 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Unleaded	$36.86	1
9032	LR082768	PIPE - FUEL FILLER	LR082768 PIPE - FUEL FILLER Fuel Tank Filler Neck - Unleaded	$346.81	1
9032	LR082767	PIPE - FUEL FILLER	LR082767 PIPE - FUEL FILLER Fuel Tank Filler Neck - DMTL	$333.40	1
9047	LR082774	HOSE - FILLER PIPE	LR082774 HOSE - FILLER PIPE Narrow Filler Neck - Unleaded	$143.79	1
9047	LR082775	HOSE - FILLER PIPE	LR082775 HOSE - FILLER PIPE Fuel Tank Filler Neck - Unleaded	$140.80	1
