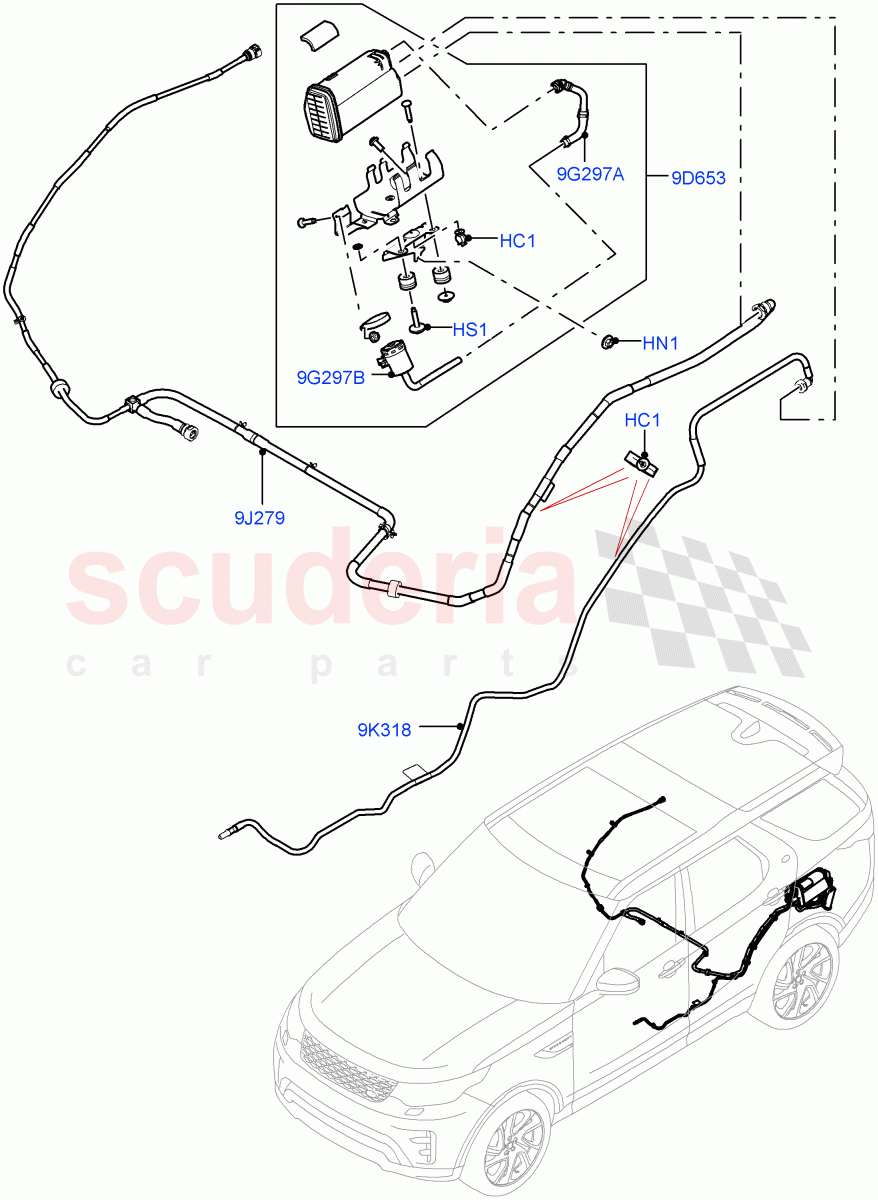

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR094032	CLIP - HOSE	$4.40	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500310	NUT AND WASHER - HEX.	$3.10	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYP501050	SCREW - PAN - TORX	$1.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082334	RESERVOIR - FUEL VAPOUR SYSTEM	$595.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082439	TUBE - VENTILATION	$163.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082445	TUBE - FUEL VAPOUR	$70.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082335	HOSE - FUEL	$49.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079268	HOSE - FUEL	$68.92	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR094032	CLIP - HOSE	LR094032 CLIP - HOSE Double, Plastic	$4.40	4
HN1	RYH500310	NUT AND WASHER - HEX. IN STOCK	RYH500310 NUT AND WASHER - HEX. Hexagonal Head, M6, Nut And Washer IN STOCK	$3.10	2
HS1	RYP501050	SCREW - PAN - TORX	RYP501050 SCREW - PAN - TORX M6 X 25MM, Torx	$1.46	2
9D653	LR082334	RESERVOIR - FUEL VAPOUR SYSTEM	LR082334 RESERVOIR - FUEL VAPOUR SYSTEM Charcoal Cannister, With Bracket	$595.80	1
9G297A	LR082335	HOSE - FUEL	LR082335 HOSE - FUEL Canister vent	$49.95	1
9G297B	LR079268	HOSE - FUEL	LR079268 HOSE - FUEL Canister vent	$68.92	1
9J279	LR082439	TUBE - VENTILATION	LR082439 TUBE - VENTILATION	$163.65	1
9K318	LR082445	TUBE - FUEL VAPOUR	LR082445 TUBE - FUEL VAPOUR From Carbon Canister To Fuel Lines	$70.91	1
