Pulleys And Drive Belts (Solihull Plant Build, Secondary Drive) (3.0L Dohc Gdi Sc V6 Petrol) ((V)...

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Pulleys And Drive Belts (Solihull Plant Build, Secondary Drive) (3.0L DOHC GDI SC V6 PETROL) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108206 BOLT $2.29 IN STOCK
Photo Part No Description Price (each) Stock
LR005074 BOLT $1.16 To Order
Photo Part No Description Price (each) Stock
LR016837 BOLT $1.05 IN STOCK
Photo Part No Description Price (each) Stock
LR076013 PULLEY - CRANKSHAFT $425.34 To Order
LR107656 PULLEY - CRANKSHAFT $401.86 To Order
LR124257 PULLEY - CRANKSHAFT $440.38 To Order
Photo Part No Description Price (each) Stock
LR011325 PULLEY - FAN $101.74 To Order
Photo Part No Description Price (each) Stock
LR184650 BELT - ACCESSORY DRIVE $49.01 To Order
Photo Part No Description Price (each) Stock
LR022816 CAP - IDLER PULLEY $3.26 To Order
Photo Part No Description Price (each) Stock
LR011952 BOLT M18 X110 $23.55 IN STOCK
Photo Part No Description Price (each) Stock
LR079294 BRACKET WITH IDLER AND BEARING FAN $346.03 To Order
Photo Part No Description Price (each) Stock
LR035545 PULLEY - IDLER $56.02 To Order
View All

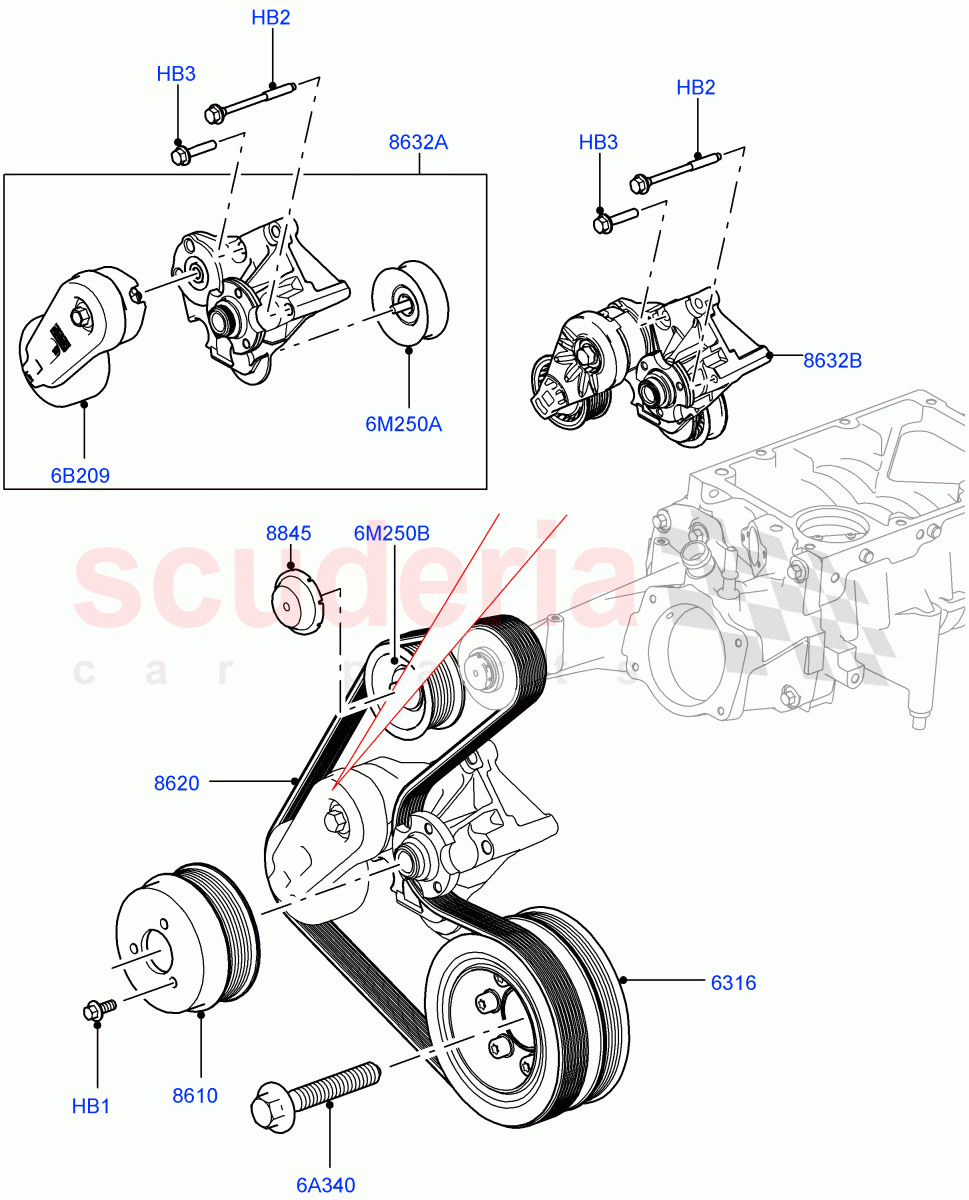

Pulleys And Drive Belts (Solihull Plant Build, Secondary Drive) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108206
BOLT
Hexagonal Head, M8 X 20MM, Pulley
IN STOCK 		$2.29 3
HB2 LR005074
BOLT
Bracket, Hexagonal Head, M8 X 96.5 		$1.16 1
HB3 LR016837
BOLT
Bracket, M8 x 40MM
IN STOCK 		$1.05 3
6A340 LR011952
BOLT M18 X110
M16 X 118MM, Pulley - Crankshaft
IN STOCK 		$23.55 1
6M250B LR035545
PULLEY - IDLER
Includes Bolt, Secondary Drive 		$56.02 1
6316 LR076013
PULLEY - CRANKSHAFT
To: HA026215 		$425.34 1
6316 LR107656
PULLEY - CRANKSHAFT
From: HA026216 / To: KA090062 		$401.86 1
6316 LR124257
PULLEY - CRANKSHAFT
From: KA090063 		$440.38 1
8610 LR011325
PULLEY - FAN
Fan 		$101.74 1
8620 LR184650
BELT - ACCESSORY DRIVE
1430mm Length, Secondary Drive 		$49.01 1
8632B LR079294
BRACKET WITH IDLER AND BEARING FAN
With Idler, With Tensioner Assy 		$346.03 1
8845 LR022816
CAP - IDLER PULLEY
idler 		$3.26 1
