Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Pulleys And Drive Belts (Primary Drive, Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4567977 BOLT $4.10 IN STOCK
Photo Part No Description Price (each) Stock
FC110136 BOLT $3.74 To Order
Photo Part No Description Price (each) Stock
LR076013 PULLEY - CRANKSHAFT $426.75 To Order
LR107656 PULLEY - CRANKSHAFT $411.46 To Order
LR124257 PULLEY - CRANKSHAFT $446.25 To Order
Photo Part No Description Price (each) Stock
LR035543 BELT - ACCESSORY DRIVE $75.98 To Order
Photo Part No Description Price (each) Stock
LR022816 CAP - IDLER PULLEY $3.27 To Order
Photo Part No Description Price (each) Stock
LR011952 BOLT M18 X110 $23.48 IN STOCK
Photo Part No Description Price (each) Stock
LR071035 TENSIONER - DRIVE BELT $158.37 To Order
Photo Part No Description Price (each) Stock
LR099573 BRACKET - IDLER PULLEY $114.98 To Order
LR099573 BRACKET - IDLER PULLEY $114.98 To Order
Photo Part No Description Price (each) Stock
PYU500020 PIN - LOCATING $3.21 To Order
Photo Part No Description Price (each) Stock
LR036304 IDLER - DRIVE BELT $64.34 IN STOCK
Photo Part No Description Price (each) Stock
LR086058 IDLER - DRIVE BELT $66.38 To Order
LR106769 IDLER $50.75 IN STOCK
View All

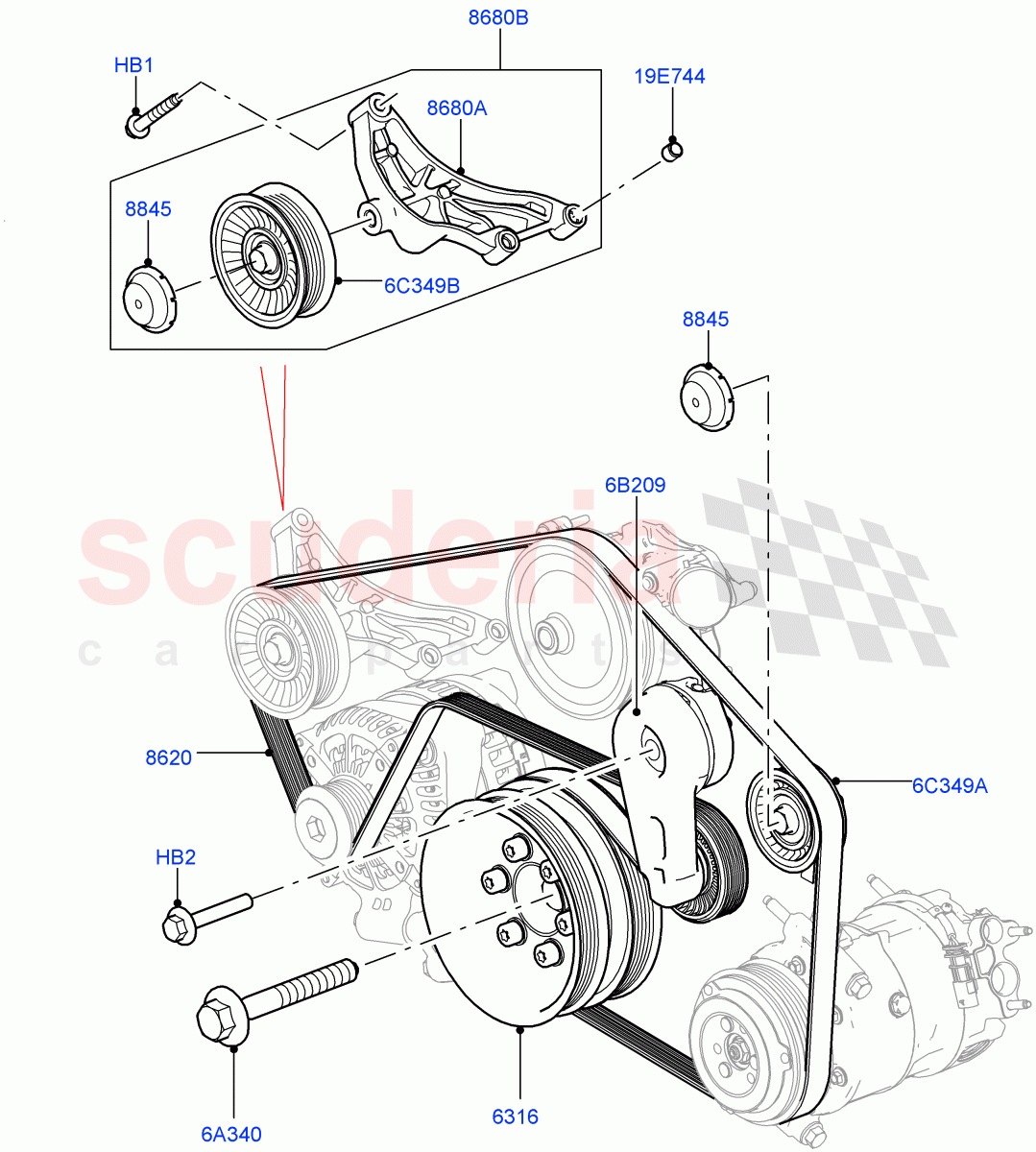

Pulleys And Drive Belts (Primary Drive, Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 4567977
BOLT
Bracket, M8 X 50
IN STOCK 		$4.10 3
HB2 FC110136
BOLT
Hexagonal Head, M10X65, Tensioner 		$3.74 1
6A340 LR011952
BOLT M18 X110
M16 X 118MM, Pulley - Crankshaft
IN STOCK 		$23.48 1
6B209 LR071035
TENSIONER - DRIVE BELT
Drive Belt, Primary Drive 		$158.37 1
6C349A LR036304
IDLER - DRIVE BELT
Drive Belt,
IN STOCK 		$64.34 1
6C349B LR086058
IDLER - DRIVE BELT
90MM, Drive Belt / To: HA029275 		$66.38 1
6C349B LR106769
IDLER
90MM, Drive Belt / From: HA029276
IN STOCK 		$50.75 1
19E744 PYU500020
PIN - LOCATING 		$3.21 2
6316 LR076013
PULLEY - CRANKSHAFT
To: HA026215 		$426.75 1
6316 LR107656
PULLEY - CRANKSHAFT
From: HA026216 / To: KA090062 		$411.46 1
6316 LR124257
PULLEY - CRANKSHAFT
From: KA090063 		$446.25 1
8620 LR035543
BELT - ACCESSORY DRIVE
Accessory, Primary Drive 		$75.98 1
8680B LR099573
BRACKET - IDLER PULLEY
With Idler / To: HA000942 		$114.98 1
8680B LR099573
BRACKET - IDLER PULLEY
With Idler / From: HA000943 		$114.98 1
8845 LR022816
CAP - IDLER PULLEY
idler 		$3.27 2
