Radiator Grille And Front Bumper (Solihull Plant Build) (Non Sport/Dynamic) ((V) Fromha000001)

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Radiator Grille And Front Bumper (Solihull Plant Build) (Non Sport/Dynamic) ((V) FROMHA000001)

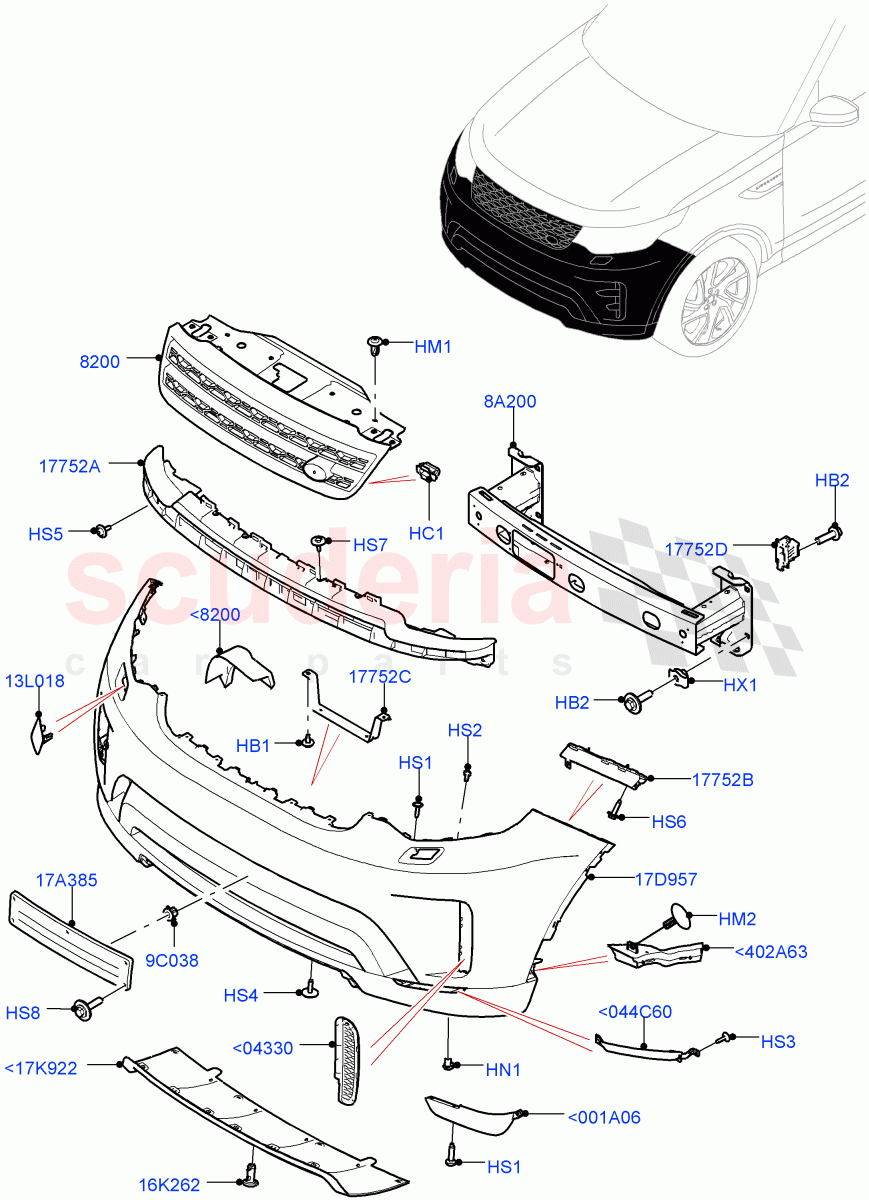

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR033409 BOLT AND WASHER M6 X 13.5 - HEXAGON HEAD $1.34 IN STOCK
Photo Part No Description Price (each) Stock
LR034249 BOLT AND WASHER - HEX.HEAD $2.87 IN STOCK
Photo Part No Description Price (each) Stock
LR018173 CLIP - RETAINING $3.20 IN STOCK
Photo Part No Description Price (each) Stock
RYQ500140 RIVET $3.13 To Order
Photo Part No Description Price (each) Stock
RZM500080 PIN - FASTENING $2.28 IN STOCK
Photo Part No Description Price (each) Stock
LR165498 NUT - EXPANSION $0.62 IN STOCK
Photo Part No Description Price (each) Stock
LR106494 SCREW $2.24 IN STOCK
Photo Part No Description Price (each) Stock
HYP500140 SCREW $0.79 To Order
Photo Part No Description Price (each) Stock
LR038663 SCREW - FLAT ROUND HEAD $2.14 IN STOCK
Photo Part No Description Price (each) Stock
RYG501590 SCREW $0.99 IN STOCK
Photo Part No Description Price (each) Stock
LR033401 SCREW AND WASHER $2.12 IN STOCK
Photo Part No Description Price (each) Stock
KYP500320 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
LR033052 SCREW AND WASHER - SELF-TAPPING $2.22 To Order
Photo Part No Description Price (each) Stock
DYP000040 SCREW $1.22 IN STOCK
Photo Part No Description Price (each) Stock
KYH500100 NUT - SPRING $1.63 To Order
Photo Part No Description Price (each) Stock
LR083006 GRILLE - RADIATOR $260.56 To Order
LR083007 GRILLE - RADIATOR $516.08 To Order
LR083008 GRILLE - RADIATOR $516.08 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR083104 PANEL - RADIATOR GRILLE - OPENING $29.50 To Order
LR083103 PANEL - RADIATOR GRILLE - OPENING $29.47 To Order
Photo Part No Description Price (each) Stock
LR080004 REINFORCEMENT - FRONT BUMPER $400.81 To Order
Photo Part No Description Price (each) Stock
ZKC2228 NUT - SPECIAL $3.00 To Order
ZKC2228 NUT - SPECIAL $3.00 To Order
Photo Part No Description Price (each) Stock
LR083062 INSERT - BUMPER AIR INTAKE $74.19 To Order
LR083061 INSERT - BUMPER AIR INTAKE $74.19 To Order
LR083063 INSERT - BUMPER AIR INTAKE $74.19 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR083109 CAP - POWERWASH JET $20.07 To Order
LR083110 CAP - POWERWASH JET $22.58 To Order
Photo Part No Description Price (each) Stock
LR012844 CLIP - RETAINING $3.65 IN STOCK
Photo Part No Description Price (each) Stock
LR083117 BRACKET - BUMPER MOUNTING $135.06 To Order
Photo Part No Description Price (each) Stock
LR146328 BRACKET - BUMPER MOUNTING $15.25 To Order
LR083115 BRACKET - BUMPER MOUNTING $15.25 To Order
LR146329 BRACKET - BUMPER MOUNTING $15.25 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR083118 BRACKET - BUMPER MOUNTING $32.41 To Order
Photo Part No Description Price (each) Stock
LR137523 BRACKET - BUMPER MOUNTING $69.47 To Order
LR137524 BRACKET - BUMPER MOUNTING $69.47 To Order
Photo Part No Description Price (each) Stock
LR083122 BRACKET - LICENSE PLATE $36.80 To Order
LR083125 BRACKET - LICENSE PLATE $36.93 To Order
LR083127 BRACKET - LICENSE PLATE $37.58 To Order
Photo Part No Description Price (each) Stock
LR083055 BUMPER - FRONT $1,036.38 To Order
LR083057 BUMPER - FRONT $1,036.38 To Order
LR083058 BUMPER - FRONT $1,036.38 To Order
...and 8 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR083068 DEFLECTOR - AIR $116.69 To Order
LR083066 DEFLECTOR - AIR $116.69 To Order
LR083069 DEFLECTOR - AIR $116.69 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR083112 COVER - FRONT FOG LAMP $74.09 To Order
LR083111 COVER - FRONT FOG LAMP $74.09 To Order
Photo Part No Description Price (each) Stock
LR083106 COVER - TOW HOOK $254.15 To Order
LR083107 COVER - TOW HOOK $254.15 To Order
LR083108 COVER - TOW HOOK $254.15 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR083228 DUCT - BRAKE CALIPER COOLING $65.45 To Order
LR083227 DUCT - BRAKE CALIPER COOLING $65.45 To Order
View All
Radiator Grille And Front Bumper (Solihull Plant Build) (Non Sport/Dynamic) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<17K922 LR083106
COVER - TOW HOOK
Tow Eye Cover - Dark Techno Silver / To: HA999999 		$254.15 1
<17K922 LR083107
COVER - TOW HOOK
Tow Eye Cover - White Techno Silver / To: HA999999 		$254.15 1
<17K922 LR083108
COVER - TOW HOOK
Tow Eye Cover - Anthracite / To: HA999999 		$254.15 1
<17K922 LR083106
COVER - TOW HOOK
Rear Bmp Lwr Valance - Dark Silver / From: JA000001 		$254.15 1
<17K922 LR083107
COVER - TOW HOOK
Rear Bmp Lwr Valance - White Silver / From: JA000001 		$254.15 1
<17K922 LR083108
COVER - TOW HOOK
Rear Bmp Lower Valance - Anthracite / From: JA000001 		$254.15 1
<001A06 LR083068
DEFLECTOR - AIR
2.0L I4 DSL HIGH DOHC AJ200, Less Engine Cooling System / RH, Open Type 		$116.69 1
<001A06 LR083066
DEFLECTOR - AIR
2.0L I4 DSL HIGH DOHC AJ200, With Standard Engine Cooling System / RH, Closed Type 		$116.69 1
<001A06 LR083069
DEFLECTOR - AIR
2.0L I4 DSL HIGH DOHC AJ200, Less Engine Cooling System / LH, Open Type 		$116.69 1
<001A06 LR083067
DEFLECTOR - AIR
2.0L I4 DSL HIGH DOHC AJ200, With Standard Engine Cooling System / LH, Closed Type 		$116.69 1
<044C60 LR083112
COVER - FRONT FOG LAMP
LH 		$74.09 1
<044C60 LR083111
COVER - FRONT FOG LAMP
RH 		$74.09 1
<402A63 LR083228
DUCT - BRAKE CALIPER COOLING
LH 		$65.45 1
<402A63 LR083227
DUCT - BRAKE CALIPER COOLING
RH 		$65.45 1
<8200 LR083104
PANEL - RADIATOR GRILLE - OPENING
2.0L I4 DSL MID DOHC AJ200 / RH 		$29.50 1
<8200 LR083103
PANEL - RADIATOR GRILLE - OPENING
2.0L I4 DSL HIGH DOHC AJ200, Less Engine Cooling System / LH 		$29.47 1
<04330 LR083062
INSERT - BUMPER AIR INTAKE
3.0L DOHC GDI SC V6 PETROL / LH, Open Type, With Grille - Mesh 		$74.19 1
<04330 LR083061
INSERT - BUMPER AIR INTAKE
3.0L DOHC GDI SC V6 PETROL / RH, Open Type, With Grille - Mesh 		$74.19 1
<04330 LR083063
INSERT - BUMPER AIR INTAKE
3.0 V6 D Gen2 Twin Turbo, With Standard Engine Cooling System / LH, Blanking, With Grille - Mesh 		$74.19 1
<04330 LR136744
PLATE - BLANKING
3.0 V6 D Gen2 Twin Turbo, Less Engine Cooling System / RH, Blanking, With Grille - Mesh / From: KA000001 		$64.75 1
HB1 LR033409
BOLT AND WASHER M6 X 13.5 - HEXAGON HEAD
M6 X 13.5MM
IN STOCK 		$1.34 2
HB2 LR034249
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M10 x 37MM
IN STOCK 		$2.87 8
HC1 LR018173
CLIP - RETAINING
With Black Gloss Grille
IN STOCK 		$3.20 4
HM1 RYQ500140
RIVET
8 X 20MM 		$3.13 4
HM2 RZM500080
PIN - FASTENING
6.35 X 28.5MM, Support
IN STOCK 		$2.28 4
HN1 LR165498
NUT - EXPANSION
Plastic
IN STOCK 		$0.62 8
HS1 LR106494
SCREW
M5 x 20MM, Self Tapping
IN STOCK 		$2.24 4
HS2 HYP500140
SCREW
Less Headlamp Washer / 4 X 12MM 		$0.79 4
HS3 LR038663
SCREW - FLAT ROUND HEAD
4 X 16MM, Pan Head - Torx
IN STOCK 		$2.14 6
HS4 RYG501590
SCREW
M6 x 22MM, Torx
IN STOCK 		$0.99 6
HS5 LR033401
SCREW AND WASHER
M6 x 19MM
IN STOCK 		$2.12 6
HS6 KYP500320
SCREW
Bolt And Washer, M6 x 30MM 		$0.61 6
HS7 LR033052
SCREW AND WASHER - SELF-TAPPING
5 x 20MM 		$2.22 4
HS8 DYP000040
SCREW
M5
IN STOCK 		$1.22 4
HX1 KYH500100
NUT - SPRING
M10, Nut "U" Spring 		$1.63 8
8A200 LR080004
REINFORCEMENT - FRONT BUMPER 		$400.81 1
9C038 ZKC2228
NUT - SPECIAL
Front Number Plate Plinth - Japan 		$3.00 2
9C038 ZKC2228
NUT - SPECIAL
Front Number Plate Plinth-China 		$3.00 4
13L018 LR083109
CAP - POWERWASH JET
With Headlamp Power Wash / RH 		$20.07 1
13L018 LR083110
CAP - POWERWASH JET
With Headlamp Power Wash / LH 		$22.58 1
16K262 LR012844
CLIP - RETAINING
1/4 Turn Click Type
IN STOCK 		$3.65 1
17A385 LR083122
BRACKET - LICENSE PLATE
Front Number Plate Plinth ROW 		$36.80 1
17A385 LR083125
BRACKET - LICENSE PLATE
Front Number Plate Plinth - Japan 		$36.93 1
17A385 LR083127
BRACKET - LICENSE PLATE
Front Number Plate Plinth-China 		$37.58 1
17D957 LR083055
BUMPER - FRONT
2.0L I4 DSL MID DOHC AJ200, Less Front Parking Aid, Rear View Camera-Fixed / Primed / To: JA999999 		$1,036.38 1
17D957 LR083057
BUMPER - FRONT
2.0L I4 DSL MID DOHC AJ200, Surround Camera System, With Front Parking Aid / Primed / To: JA999999 		$1,036.38 1
17D957 LR083058
BUMPER - FRONT
3.0L DOHC GDI SC V6 PETROL, Less Front Parking Aid, Rear View Camera-Fixed / Primed / To: JA999999 		$1,036.38 1
17D957 LR083059
BUMPER - FRONT
3.0 V6 D Gen2 Twin Turbo, Rear View Camera-Fixed, With Front Parking Aid / Primed / To: JA999999 		$1,036.38 1
17D957 LR083060
BUMPER - FRONT
3.0L DOHC GDI SC V6 PETROL, Surround Camera System, With Front Parking Aid / Primed / To: JA999999 		$1,036.38 1
17D957 LR116700
BUMPER - FRONT
3.0 V6 D Low MT ROW, Less Front Parking Aid, Surround Camera System / Primed / To: JA999999 		$1,036.38 1
17D957 LR083056
BUMPER - FRONT
(-)"AUS", 2.0L I4 DSL MID DOHC AJ200, Less Camera System, With Front Parking Aid / Primed / To: JA999999 		$685.30 1
17D957 LR136758
BUMPER - FRONT
2.0L I4 DSL HIGH DOHC AJ200, Surround Camera System / Primed / From: KA000001 		$959.60 1
17D957 LR136759
BUMPER - FRONT
3.0 V6 D Low MT ROW, Surround Camera System / Primed / From: KA000001 		$985.00 1
17D957 LR083056
BUMPER - FRONT
(-)"AUS", 2.0L I4 DSL HIGH DOHC AJ200, Less Camera System / Primed / From: KA000001 		$685.30 1
17D957 LR083059
BUMPER - FRONT
3.0L DOHC GDI SC V6 PETROL, Rear View Camera-Fixed / Primed / From: KA000001 		$1,036.38 1
8200 LR083006
GRILLE - RADIATOR
With Brunel Grille / To: KA793673 		$260.56 1
8200 LR083007
GRILLE - RADIATOR
Grille - Dark Atlas / To: KA793673 		$516.08 1
8200 LR083008
GRILLE - RADIATOR
Grille - Atlas / To: KA793673 		$516.08 1
8200 LR082695
GRILLE - RADIATOR
With Black Grille / To: HA039788 		$359.51 1
8200 LR082696
GRILLE - RADIATOR
With Black Gloss Grille 		$516.08 1
8200 LR110606
GRILLE - RADIATOR
With Black Grille / From: HA039789 		$372.08 1
8200 LR123930
GRILLE - RADIATOR
With Brunel Grille / From: KA793674 		$252.98 1
8200 LR123931
GRILLE - RADIATOR
Grille - Dark Atlas / From: KA793674 		$516.08 1
8200 LR123932
GRILLE - RADIATOR
Grille - Atlas / From: KA793674 		$516.08 1
17752A LR083117
BRACKET - BUMPER MOUNTING
Center Location, Upper 		$135.06 1
17752B LR146328
BRACKET - BUMPER MOUNTING
RH / To: HA009198 		$15.25 1
17752B LR083115
BRACKET - BUMPER MOUNTING
LH / To: HA009198 		$15.25 1
17752B LR146329
BRACKET - BUMPER MOUNTING
LH / From: HA009199 / To: HA035655 		$15.25 1
17752B LR146328
BRACKET - BUMPER MOUNTING
RH / From: HA009199 / To: HA035655 		$15.25 1
17752B LR146329
BRACKET - BUMPER MOUNTING
LH / From: HA035656 / To: KA094670 		$15.25 1
17752B LR146328
BRACKET - BUMPER MOUNTING
RH / From: HA035656 / To: KA094670 		$15.25 1
17752B LR146328
BRACKET - BUMPER MOUNTING
RH / From: KA094671 		$15.25 1
17752B LR146329
BRACKET - BUMPER MOUNTING
LH / From: KA094671 		$15.25 1
17752C LR083118
BRACKET - BUMPER MOUNTING
Center Location, Lower 		$32.41 1
17752D LR137523
BRACKET - BUMPER MOUNTING
RH 		$69.47 1
17752D LR137524
BRACKET - BUMPER MOUNTING
LH 		$69.47 1

Haven't found what you're looking for?

More: Land Rover Radiators Tuning Parts Need help? Call us

View Cart / Checkout
