Luggage Compartment Door (Nitra Plant Build) ((V) Fromk2000001)

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Luggage Compartment Door (Nitra Plant Build) ((V) FROMK2000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR106658 BOLT $1.67 To Order
Photo Part No Description Price (each) Stock
LR024183 BOLT $1.79 To Order
Photo Part No Description Price (each) Stock
BYH500060 NUT - FLANGED $0.79 To Order
Photo Part No Description Price (each) Stock
LR080287 TAILGATE - COMPLETE $854.97 To Order
Photo Part No Description Price (each) Stock
LR080293 HINGE - TAILGATE $64.92 To Order
LR080294 HINGE - DOOR $68.40 To Order
Photo Part No Description Price (each) Stock
LR083286 BRACKET - KEY MOUNTING $14.54 To Order
Photo Part No Description Price (each) Stock
LR095487 BUMP STOP - TAILGATE $13.17 To Order
Photo Part No Description Price (each) Stock
LR082310 CLIP - TAILGATE BLIND $9.48 IN STOCK
Photo Part No Description Price (each) Stock
LR099609 CLIP - TAILGATE BLIND $11.44 To Order
Photo Part No Description Price (each) Stock
LR082309 CLIP - TAILGATE BLIND $9.48 To Order
Photo Part No Description Price (each) Stock
LR138284 STUD - BALL $6.48 To Order
LR138284 STUD - BALL $6.48 To Order
Photo Part No Description Price (each) Stock
LR083138 STRUT - TAILGATE $351.14 To Order
LR083139 STRUT - TAILGATE $384.61 To Order
LR156756 STRUT - TAILGATE $374.81 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR102568 LIFT - GAS $197.18 To Order
LR102569 LIFT - GAS $60.04 To Order
LR134849 LIFT - GAS $56.50 To Order
...and 1 more part variants. See table on right for more details.
View All

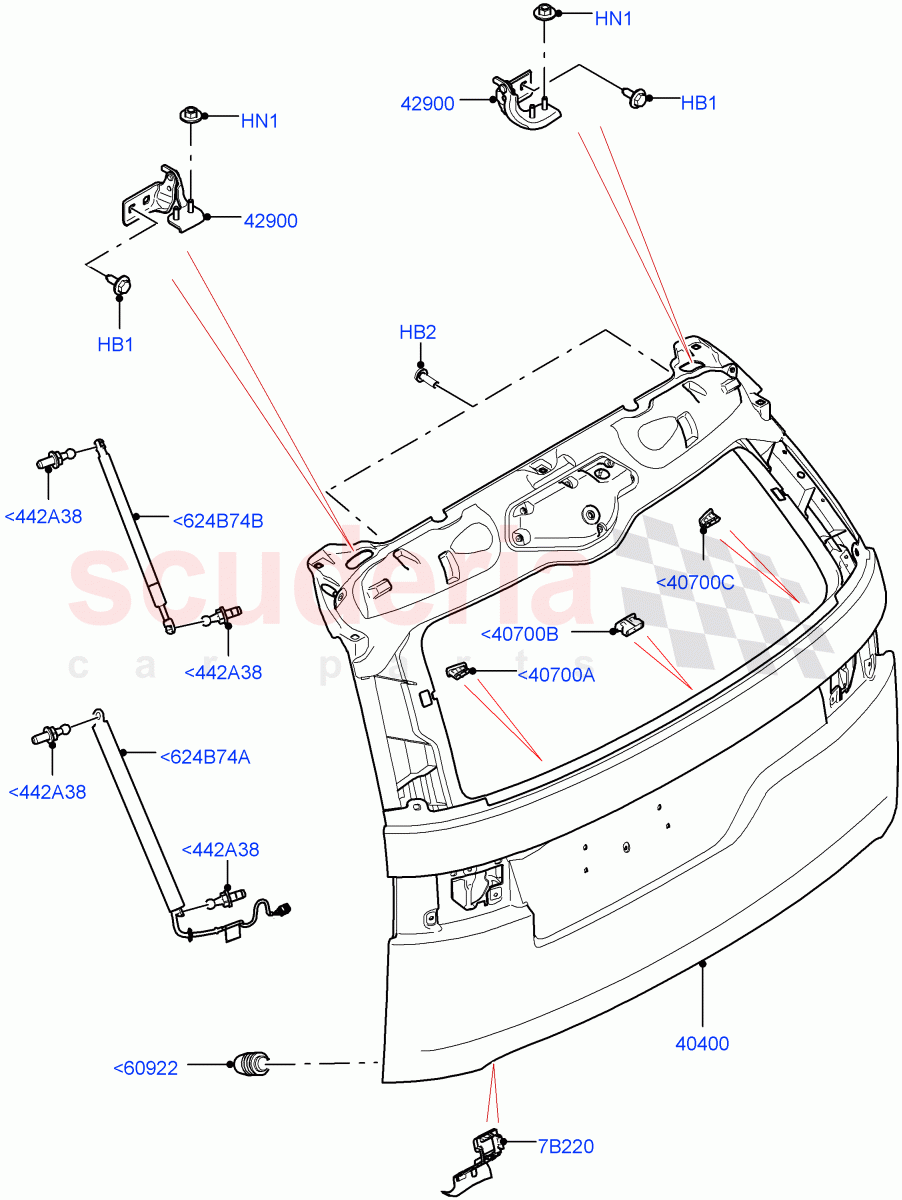

Luggage Compartment Door (Nitra Plant Build) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<442A38 LR138284
STUD - BALL
M8 x 19MM / From: K2000001 / To: K2999999 		$6.48 4
<442A38 LR138284
STUD - BALL
M8 x 19MM / From: L2000001 		$6.48 4
<624B74A LR083138
STRUT - TAILGATE
Tailgate-Powered Upper / RH / From: K2000001 / To: K2401128 		$351.14 1
<624B74A LR083139
STRUT - TAILGATE
Tailgate - Powered One Piece / LH / From: K2000001 / To: K2401128 		$384.61 1
<624B74A LR156756
STRUT - TAILGATE
Tailgate-Powered Upper / RH / From: M2448402 / To: N2461669 		$374.81 1
<624B74A LR156757
STRUT - TAILGATE
Tailgate - Hands Free / LH / From: M2448402 / To: N2461669 		$393.26 1
<624B74A LR126177
STRUT - TAILGATE
Tailgate - Hands Free / LH / From: K2401129 / To: M2448401 		$344.86 1
<624B74A LR126175
STRUT - TAILGATE
Tailgate - Hands Free / RH / From: K2401129 / To: M2448401 		$344.86 1
<624B74A LR167023
STRUT - TAILGATE
Tailgate-Powered Upper / LH / From: N2461670 		$409.66 1
<624B74A LR167022
STRUT - TAILGATE
Tailgate - Hands Free / RH / From: N2461670 		$409.66 1
<624B74B LR102568
LIFT - GAS
Tailgate - Manual One Piece / RH / From: K2000001 / To: L2427876 		$197.18 1
<624B74B LR102569
LIFT - GAS
With Conventional Tailgate / LH / From: K2000001 / To: L2427876 		$60.04 1
<624B74B LR134849
LIFT - GAS
With Conventional Tailgate / LH / From: L2427877 		$56.50 1
<624B74B LR134821
LIFT - GAS
With Conventional Tailgate / RH / From: L2427877 		$200.97 1
<40700A LR082310
CLIP - TAILGATE BLIND
LH / From: K2000001
IN STOCK 		$9.48 1
<40700B LR099609
CLIP - TAILGATE BLIND
Centre / From: K2000001 		$11.44 1
<40700C LR082309
CLIP - TAILGATE BLIND
RH / From: K2000001 		$9.48 1
<60922 LR095487
BUMP STOP - TAILGATE
From: K2000001 		$13.17 4
HB1 LR106658
BOLT
Bolt And Washer, Hexagonal Head, M8 X 25MM / From: K2000001 		$1.67 4
HB2 LR024183
BOLT
Hexagonal Head, M8 X 25MM / From: K2000001 		$1.79 4
HN1 BYH500060
NUT - FLANGED
M8, Nut And Washer / From: K2000001 		$0.79 4
7B220 LR083286
BRACKET - KEY MOUNTING
Vehicle Access-Leisure Activity Key / From: K2000001 		$14.54 1
40400 LR080287
TAILGATE - COMPLETE
From: K2000001 		$854.97 1
42900 LR080293
HINGE - TAILGATE
RH / From: K2000001 		$64.92 1
42900 LR080294
HINGE - DOOR
LH / From: K2000001 		$68.40 1
