Transfer Drive Components (Nitra Plant Build) (With 1 Speed Transfer Case) ((V) Fromm2000001)

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Transfer Drive Components (Nitra Plant Build) (With 1 Speed Transfer Case) ((V) FROMM2000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR126162 BOLT - HEX.HEAD $3.85 To Order
Photo Part No Description Price (each) Stock
LR093822 PLUG - OIL DRAIN $6.81 To Order
Photo Part No Description Price (each) Stock
LR160897 PLATE $36.59 To Order
Photo Part No Description Price (each) Stock
IYL500010 Grease - Long Life Lubricating Enquire To Order
Photo Part No Description Price (each) Stock
LR160896 SEAL - TRANSFER BOX $30.79 To Order
Photo Part No Description Price (each) Stock
LR122972 DAMPER - VIBRATION $377.01 To Order
Photo Part No Description Price (each) Stock
LR160878 MODULE - TRANSFER BOX $971.46 To Order
Photo Part No Description Price (each) Stock
LR160893 KIT - SOLENOID $195.60 To Order
Photo Part No Description Price (each) Stock
LR160891 SEAL - SPECIAL $42.38 To Order
Photo Part No Description Price (each) Stock
LR160892 SEAL - SPECIAL $45.80 To Order
Photo Part No Description Price (each) Stock
LR160898 KIT - "O" RING $7.88 To Order
Photo Part No Description Price (each) Stock
LR160890 KIT - SEAL $23.40 To Order
Photo Part No Description Price (each) Stock
LR160860 KIT - WIRING $126.76 To Order
Photo Part No Description Price (each) Stock
LR160895 SHAFT - OUTPUT $363.69 To Order
Photo Part No Description Price (each) Stock
LR160884 KIT - FLANGE $208.40 To Order
View All

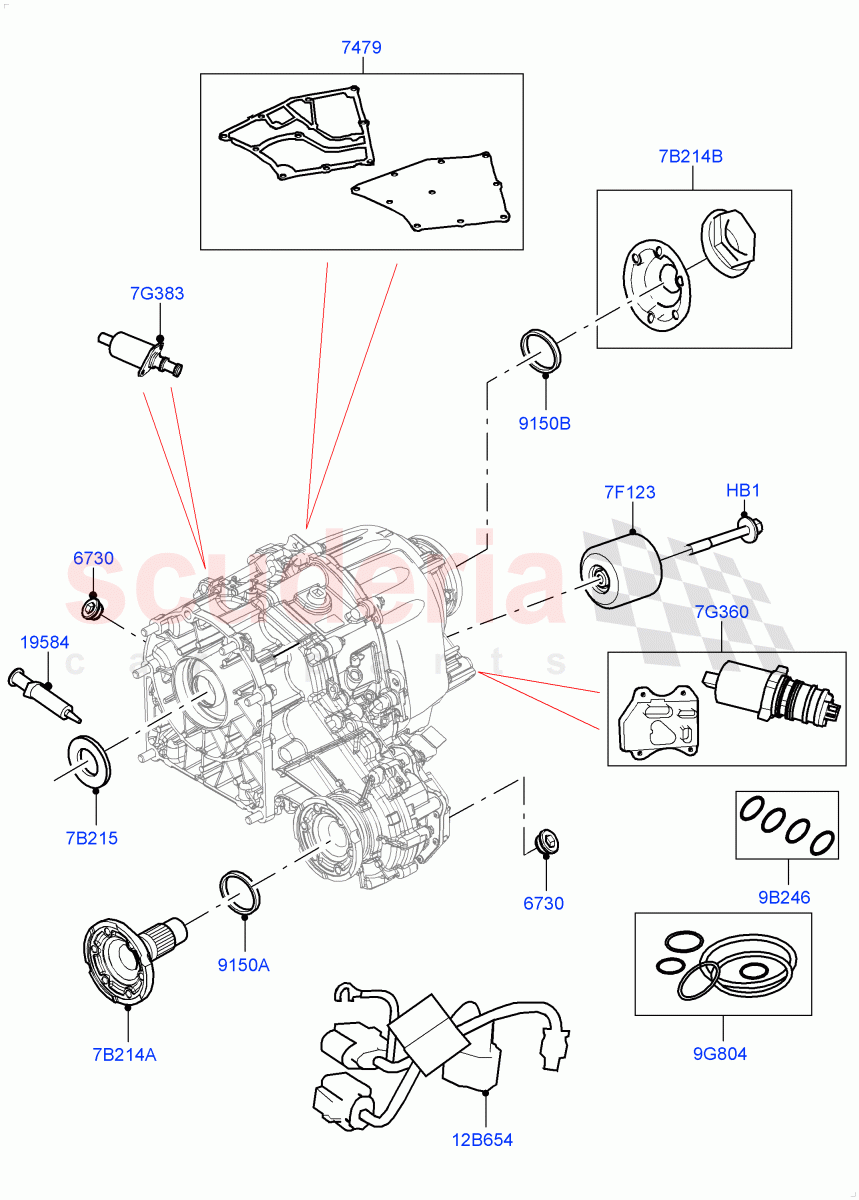

Transfer Drive Components (Nitra Plant Build) (With 1 Speed Transfer Case) ((V) FROMM2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR126162
BOLT - HEX.HEAD
3.0L AJ20P6 Petrol High / Bolt And Washer, Damper, M10 X 80MM / From: M2000001 		$3.85 1
7B214A LR160895
SHAFT - OUTPUT
Front, With Magnet / From: M2000001 		$363.69 1
7B214B LR160884
KIT - FLANGE
Rear / From: M2000001 		$208.40 1
7B215 LR160896
SEAL - TRANSFER BOX
Input Shaft / From: M2000001 		$30.79 1
7F123 LR122972
DAMPER - VIBRATION
3.0L AJ20D6 Diesel High / From: M2000001 		$377.01 1
7G360 LR160878
MODULE - TRANSFER BOX
TCCM Included / From: M2000001 		$971.46 1
7G383 LR160893
KIT - SOLENOID
Front, Valve / From: M2000001 		$195.60 1
9B246 LR160898
KIT - "O" RING
Set Of 3 Pieces, To Pump / From: M2000001 		$7.88 1
9G804 LR160890
KIT - SEAL
Actuator And Valve Seal Kit / From: M2000001 		$23.40 1
12B654 LR160860
KIT - WIRING
Wiring Harness / From: M2000001 		$126.76 1
6730 LR093822
PLUG - OIL DRAIN
Drain Plug / From: M2000001 		$6.81 1
7479 LR160897
PLATE
Oil Reservoir Kit / From: M2000001 		$36.59 1
9150A LR160891
SEAL - SPECIAL
Front Output Shaft / From: M2000001 		$42.38 1
9150B LR160892
SEAL - SPECIAL
Flange - Rear Output / From: M2000001 		$45.80 1
19584 IYL500010
Grease - Long Life Lubricating
From: M2000001 		- 1 Enquire
