Find Your Part

View All

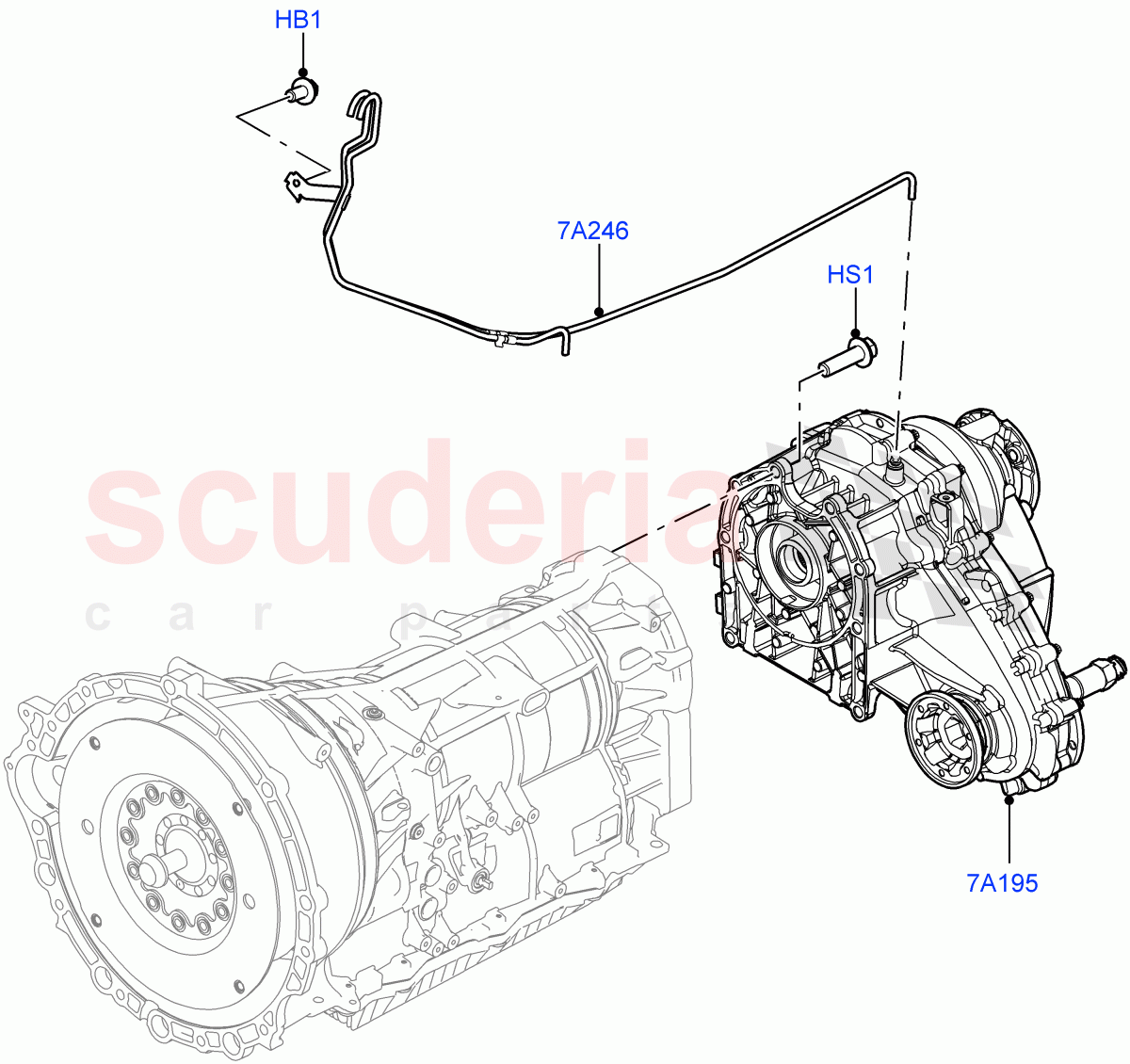

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS106126	BOLT	$0.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FT110356	SCREW	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR080767	TUBE - BREATHER	$71.78	To Order
	LR082640	TUBE - TRANSMISSION VENTILATION	$54.32	To Order
	LR080753	TUBE - TRANSMISSION VENTILATION	$66.92	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS106126	BOLT IN STOCK	FS106126 BOLT Breather Pipe, Hexagonal Head, M6 x 12MM IN STOCK	$0.52	1
HS1	FT110356	SCREW	FT110356 SCREW Hexagonal Head, M10 x 35MM	$2.41	8
7A195	LR082663	TRANSFER BOX	LR082663 TRANSFER BOX To: HA036470	$5,591.70	1
7A195	LR105963	TRANSFER BOX	LR105963 TRANSFER BOX From: HA036471 / To: JA068480	$5,548.93	1
7A195	LR117096	TRANSFER BOX	LR117096 TRANSFER BOX From: JA068481	$4,614.47	1
7A246	LR080767	TUBE - BREATHER	LR080767 TUBE - BREATHER 3.0L DOHC GDI SC V6 PETROL / Gearbox, Transfer Box	$71.78	1
7A246	LR082640	TUBE - TRANSMISSION VENTILATION	LR082640 TUBE - TRANSMISSION VENTILATION 2.0L I4 DSL HIGH DOHC AJ200 / Gearbox, Includes Bracket, Transfer Box	$54.32	1
7A246	LR080753	TUBE - TRANSMISSION VENTILATION	LR080753 TUBE - TRANSMISSION VENTILATION 3.0 V6 D Gen2 Mono Turbo / Gearbox, Includes Bracket, Transfer Box	$66.92	1
