Name: Turbocharger (Nitra Plant Build, Turbocharger Related Parts) (3.0L AJ20D6 Diesel High) ((V) FROMM2000001)
Rating: 4.8 (1 reviews)

Turbocharger (Nitra Plant Build, Turbocharger Related Parts) (3.0L AJ20D6 Diesel High) ((V) FROMM2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Turbocharger (Nitra Plant Build, Turbocharger Related Parts) (3.0L AJ20D6 Diesel High) ((V)...

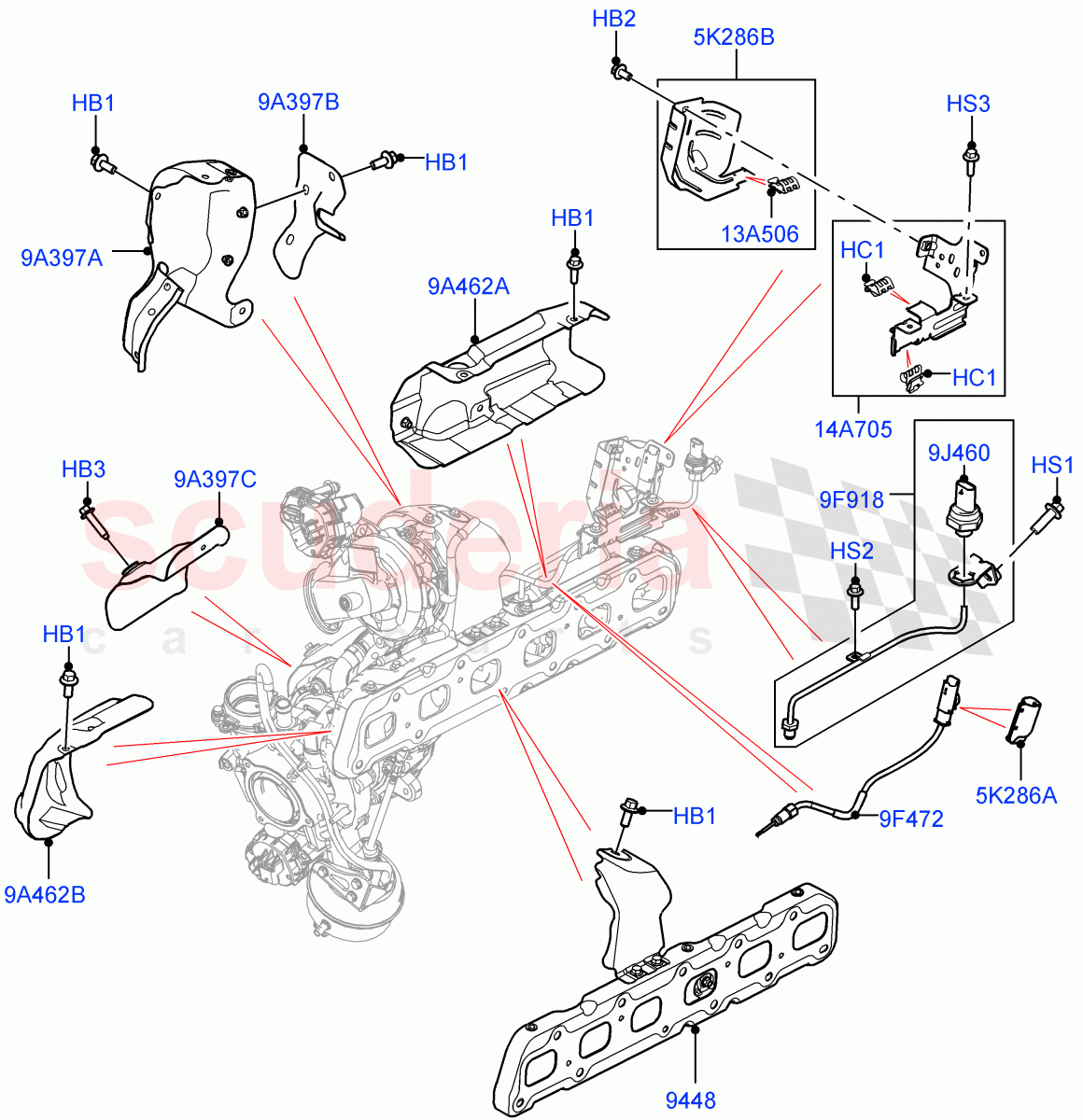

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR071777	BOLT - HEX.HEAD	$2.77	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106126	BOLT	$0.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR091557	BOLT	$3.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126161	CLIP	$1.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073724	SCREW	$2.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073686	SCREW	$2.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR154225	GASKET - EXHAUST MANIFOLD	$97.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125607	SENSOR - EXHAUST GAS - TEMPERATURE	$128.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128554	SENSOR - EXHAUST GAS PRESSURE	$151.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139306	SENSOR - EXHAUST GAS PRESSURE	$142.16	To Order

Photo	Part No	Description	Price (each)	Stock
	YQR000050	CLIP - WIRING	$0.79	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR138995	BRACKET	$103.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139159	HEAT SHIELD - CONNECTOR	$37.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128751	SHIELD - EXHAUST MANIFOLD HEAT	$24.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125337	HEAT SHIELD - TURBOCHARGER	$78.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125339	HEAT SHIELD - TURBOCHARGER	$34.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128151	HEAT SHIELD - TURBOCHARGER	$41.52	To Order
	LR174653	Heat Shield	$67.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125341	SHIELD - EXHAUST MANIFOLD HEAT	$66.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125342	SHIELD - EXHAUST MANIFOLD HEAT	$39.92	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR071777	BOLT - HEX.HEAD	LR071777 BOLT - HEX.HEAD M6 X 14MM / From: M2000001	$2.77	13
HB2	FS106126	BOLT IN STOCK	FS106126 BOLT Hexagonal Head, M6 x 12MM / From: M2000001 IN STOCK	$0.52	1
HB3	LR091557	BOLT	LR091557 BOLT M6 X 25MM / From: M2000001	$3.01	2
HC1	LR126161	CLIP	LR126161 CLIP 8 X 2.75mm / From: M2000001	$1.43	2
HS1	LR073724	SCREW	LR073724 SCREW M8 X 25MM / From: M2000001	$2.05	1
HS2	LR073686	SCREW	LR073686 SCREW M6 X 16MM / From: M2000001	$2.49	1
HS3	LR073655	SCREW IN STOCK	LR073655 SCREW Hexagonal Head, M6 X 20MM / From: M2000001 IN STOCK	$1.60	2
5K286A	LR139159	HEAT SHIELD - CONNECTOR	LR139159 HEAT SHIELD - CONNECTOR Connector, Exhaust Gas Temperature Sensor / From: M2000001	$37.13	1
5K286B	LR128751	SHIELD - EXHAUST MANIFOLD HEAT	LR128751 SHIELD - EXHAUST MANIFOLD HEAT Wiring Harness / From: M2000001	$24.99	1
9A397A	LR125337	HEAT SHIELD - TURBOCHARGER	LR125337 HEAT SHIELD - TURBOCHARGER Turbocharger, Upper / From: M2000001	$78.48	1
9A397B	LR125339	HEAT SHIELD - TURBOCHARGER	LR125339 HEAT SHIELD - TURBOCHARGER Rear, Turbocharger / From: M2000001	$34.53	1
9A397C	LR128151	HEAT SHIELD - TURBOCHARGER	LR128151 HEAT SHIELD - TURBOCHARGER Lower, Turbocharger / From: M2000001 / To: P2465767	$41.52	1
9A397C	LR174653	Heat Shield	LR174653 Heat Shield Lower, Turbocharger / From: P2465768	$67.59	1
9A462A	LR125341	SHIELD - EXHAUST MANIFOLD HEAT	LR125341 SHIELD - EXHAUST MANIFOLD HEAT Exhaust Manifold, Rear / From: M2000001	$66.71	1
9A462B	LR125342	SHIELD - EXHAUST MANIFOLD HEAT	LR125342 SHIELD - EXHAUST MANIFOLD HEAT Exhaust Manifold, Front / From: M2000001	$39.92	1
9F472	LR125607	SENSOR - EXHAUST GAS - TEMPERATURE	LR125607 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Gas Temperature / From: M2000001	$128.95	1
9F918	LR128554	SENSOR - EXHAUST GAS PRESSURE	LR128554 SENSOR - EXHAUST GAS PRESSURE Complete Assembly / From: M2000001	$151.09	1
9J460	LR139306	SENSOR - EXHAUST GAS PRESSURE	LR139306 SENSOR - EXHAUST GAS PRESSURE Exhaust Gas Pressure / From: M2000001	$142.16	1
13A506	YQR000050	CLIP - WIRING IN STOCK	YQR000050 CLIP - WIRING From: M2000001 IN STOCK	$0.79	1
14A705	LR138995	BRACKET	LR138995 BRACKET Wiring Harness / From: M2000001	$103.85	1
9448	LR154225	GASKET - EXHAUST MANIFOLD	LR154225 GASKET - EXHAUST MANIFOLD Heat Shield, Manifold To Cylinder Head / From: M2000001	$97.95	1

Turbocharger (Nitra Plant Build, Turbocharger Related Parts) (3.0L Aj20D6 Diesel High) ((V)...
