Name: Turbocharger (Nitra Plant Build) (3.0L AJ20D6 Diesel High) ((V) FROMM2000001)
Rating: 4.4 (1 reviews)

View All

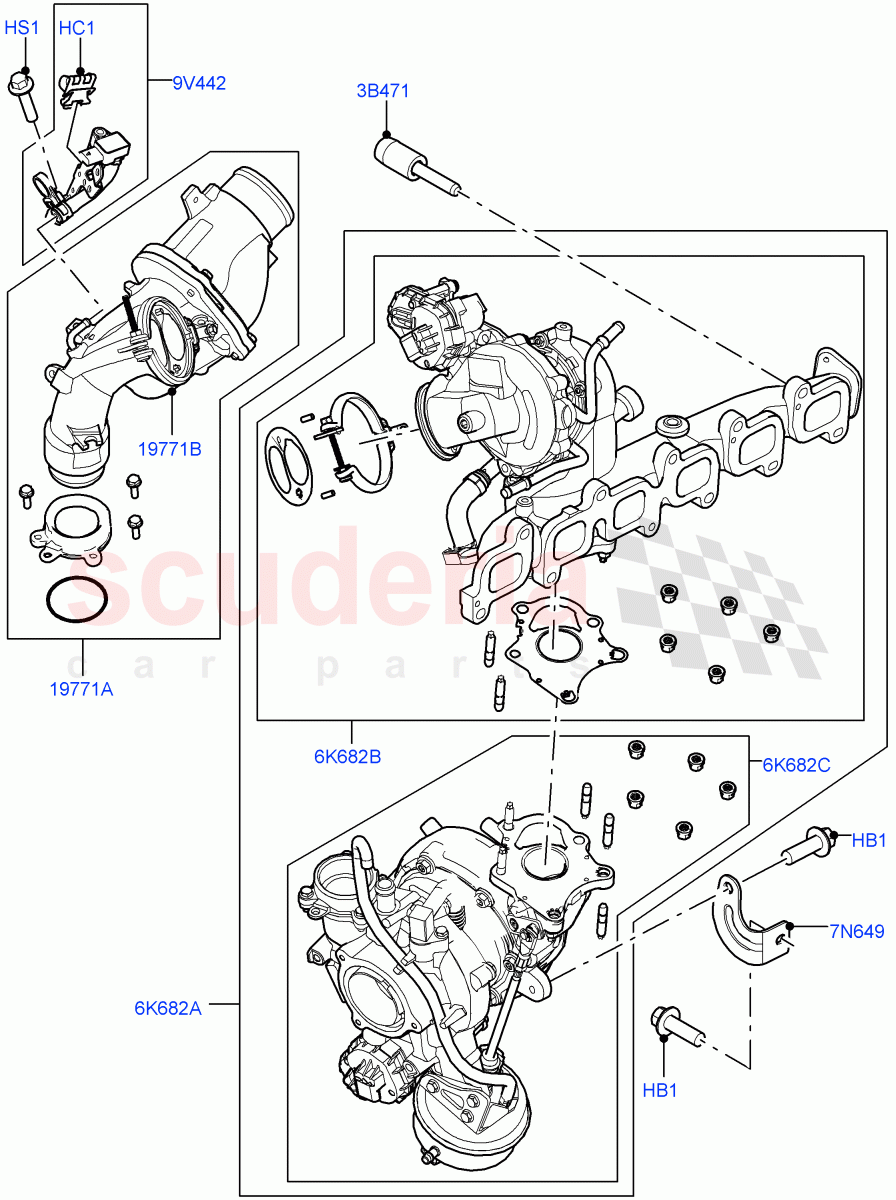

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR092104	BOLT	$1.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126161	CLIP	$1.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	$1.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125335	BOLT - SPECIAL	$6.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125535	BRACKET - TURBOCHARGER	$36.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125608	SENSOR - AIR CHARGE	$43.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154608	COMPRESSOR - BYPASS VALVE	$282.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125606	HOSE	$299.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125532	TURBOCHARGER	$3,903.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154609	TURBOCHARGER - HIGH PRESSURE	$2,088.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154607	TURBOCHARGER - LOW PRESSURE	$2,364.83	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR092104	BOLT	LR092104 BOLT M8 X 25MM / From: M2000001	$1.61	2
HC1	LR126161	CLIP	LR126161 CLIP 8 X 2.75mm / From: M2000001	$1.43	1
HS1	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM / From: M2000001	$1.35	1
3B471	LR125335	BOLT - SPECIAL	LR125335 BOLT - SPECIAL Exhaust Manifold Fixing / From: M2000001	$6.05	11
6K682A	LR125532	TURBOCHARGER	LR125532 TURBOCHARGER Turbocharger Assembly / From: M2000001	$3,903.82	1
6K682B	LR154609	TURBOCHARGER - HIGH PRESSURE	LR154609 TURBOCHARGER - HIGH PRESSURE High Pressure / From: M2000001	$2,088.60	1
6K682C	LR154607	TURBOCHARGER - LOW PRESSURE	LR154607 TURBOCHARGER - LOW PRESSURE Low Pressure / From: M2000001	$2,364.83	1
7N649	LR125535	BRACKET - TURBOCHARGER	LR125535 BRACKET - TURBOCHARGER From: M2000001	$36.95	1
9V442	LR125608	SENSOR - AIR CHARGE	LR125608 SENSOR - AIR CHARGE From: M2000001	$43.10	1
19771A	LR154608	COMPRESSOR - BYPASS VALVE	LR154608 COMPRESSOR - BYPASS VALVE Service Kit / From: M2000001	$282.43	1
19771B	LR125606	HOSE	LR125606 HOSE From: M2000001	$299.19	1

Turbocharger (Nitra Plant Build) (3.0L Aj20D6 Diesel High) ((V) Fromm2000001)

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]
