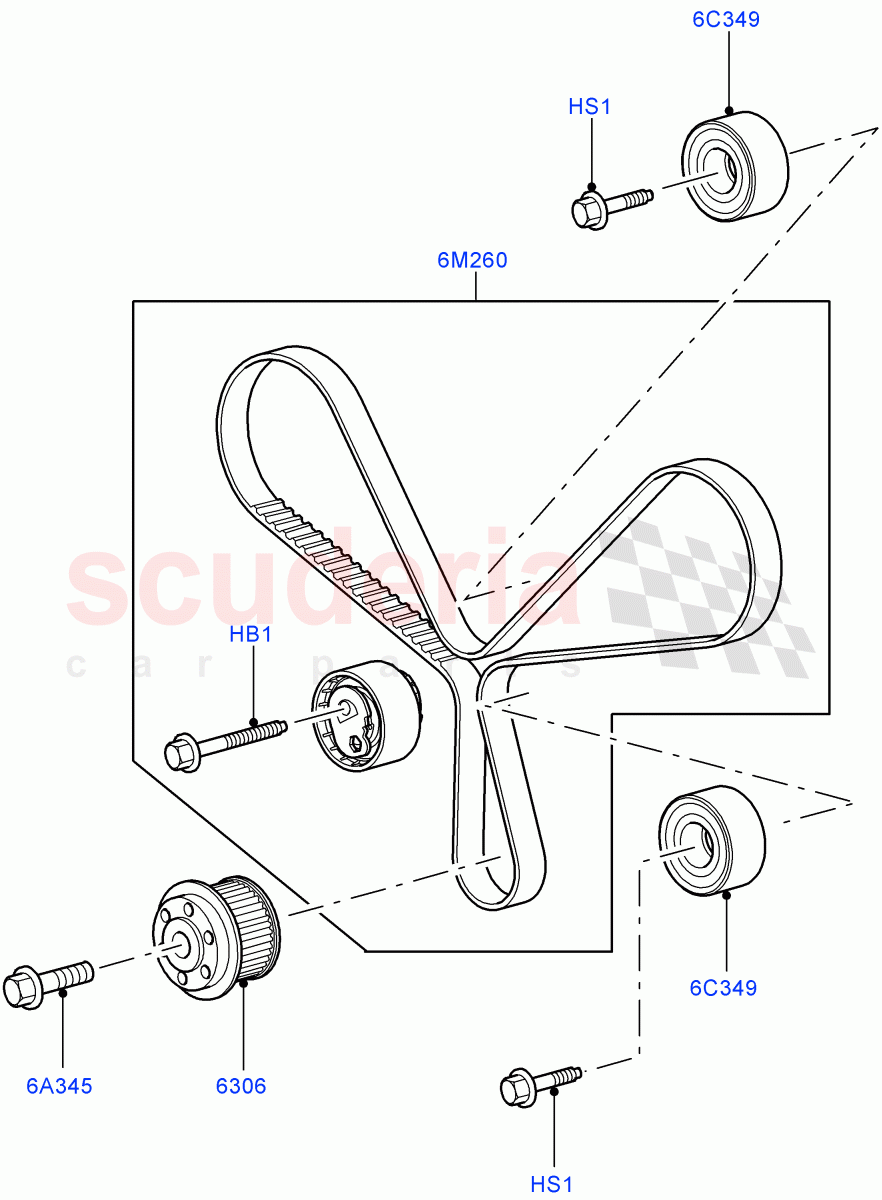

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR062017	BOLT - HEX.HEAD	$3.11	To Order

Photo	Part No	Description	Price (each)	Stock
	FT110256	SCREW	$2.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR114018	GEAR - CRANKSHAFT	$130.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013377	BOLT - HEX.HEAD	$13.70	To Order

Photo	Part No	Description	Price (each)	Stock
	1311306	KIT - DRIVE BELT	$84.08	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR078913	BELT - TIMING	$231.19	IN STOCK

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR062017	BOLT - HEX.HEAD	LR062017 BOLT - HEX.HEAD M10 x 75MM / From: K2000001	$3.11	1
HS1	FT110256	SCREW IN STOCK	FT110256 SCREW M10 X 25MM / From: K2000001 IN STOCK	$2.31	2
6A345	LR013377	BOLT - HEX.HEAD	LR013377 BOLT - HEX.HEAD M16 X 70 / From: K2000001	$13.70	1
6C349	1311306	KIT - DRIVE BELT IN STOCK	1311306 KIT - DRIVE BELT Timing Belt / From: K2000001 IN STOCK	$84.08	2
6M260	LR078913	BELT - TIMING IN STOCK	LR078913 BELT - TIMING From: K2000001 IN STOCK	$231.19	1
6306	LR114018	GEAR - CRANKSHAFT	LR114018 GEAR - CRANKSHAFT From: K2000001	$130.52	1
