Find Your Part

View All

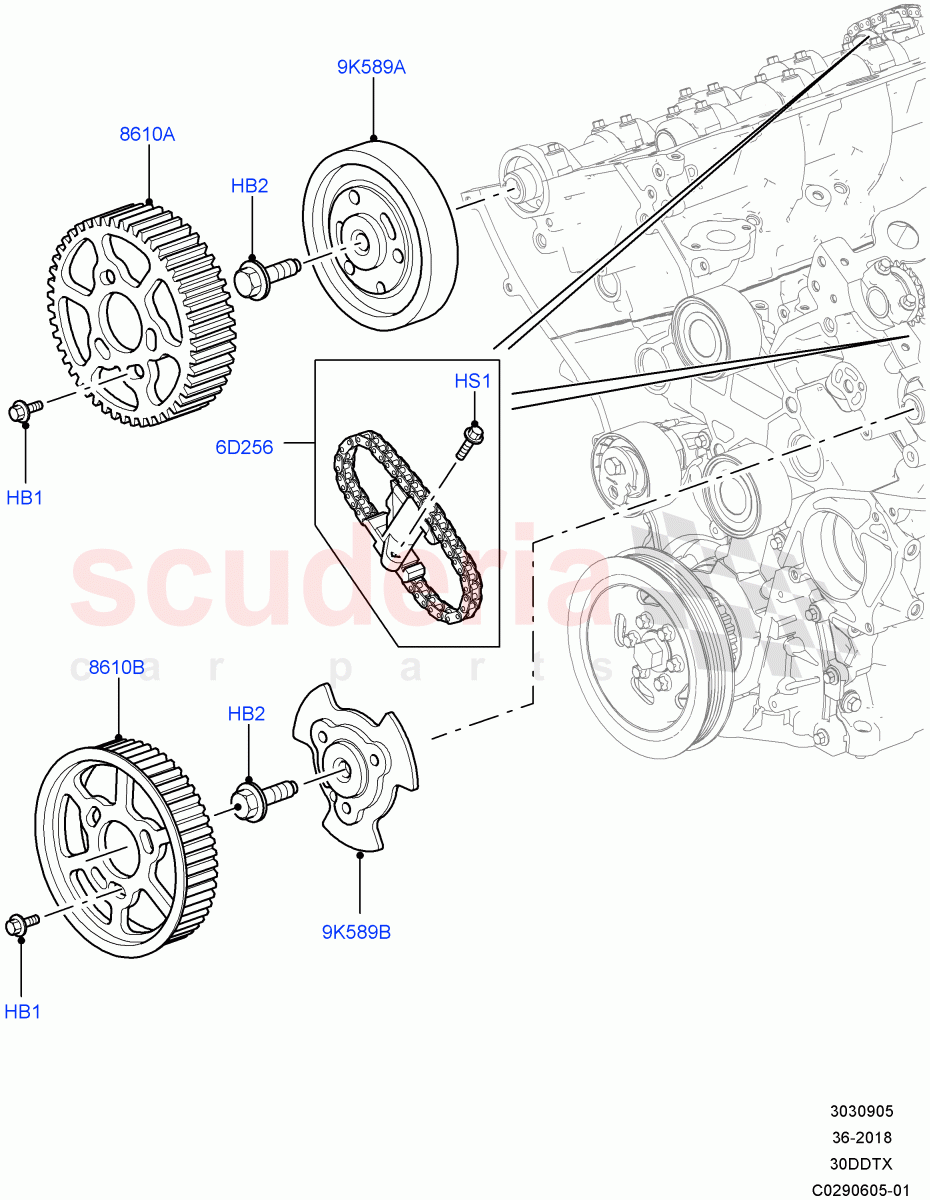

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR037840	BOLT	$8.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR068165	BOLT	$12.78	To Order

Photo	Part No	Description	Price (each)	Stock
	4378449	SCREW	$2.08	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1316113	KIT - TIMING CHAIN AND TENSIONER	$140.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR120556	PULLEY - TIMING BELT	$127.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR120557	PULLEY - TIMING BELT	$130.67	To Order

Photo	Part No	Description	Price (each)	Stock
	1324342	HUB - CAMSHAFT PULLEY	$83.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR120555	HUB - CAMSHAFT PULLEY	$119.71	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR037840	BOLT IN STOCK	LR037840 BOLT M8 x 18MM / From: K2000001 IN STOCK	$8.54	6
HB2	LR068165	BOLT	LR068165 BOLT M12 x 1.5 x 35MM / From: K2000001	$12.78	2
HS1	4378449	SCREW IN STOCK	4378449 SCREW M6 x 25MM / From: K2000001 IN STOCK	$2.08	4
6D256	1316113	KIT - TIMING CHAIN AND TENSIONER	1316113 KIT - TIMING CHAIN AND TENSIONER Short Chains Between Camshafts / From: K2000001	$140.70	2
9K589A	1324342	HUB - CAMSHAFT PULLEY	1324342 HUB - CAMSHAFT PULLEY RH, Camshaft Pulley, Front / From: K2000001	$83.10	1
9K589B	LR120555	HUB - CAMSHAFT PULLEY	LR120555 HUB - CAMSHAFT PULLEY LH, Camshaft Pulley, Front / From: K2000001	$119.71	1
8610A	LR120556	PULLEY - TIMING BELT	LR120556 PULLEY - TIMING BELT RH, Timing Belt / From: K2000001	$127.31	1
8610B	LR120557	PULLEY - TIMING BELT	LR120557 PULLEY - TIMING BELT LH, Timing Belt / From: K2000001	$130.67	1
