Find Your Part

View All

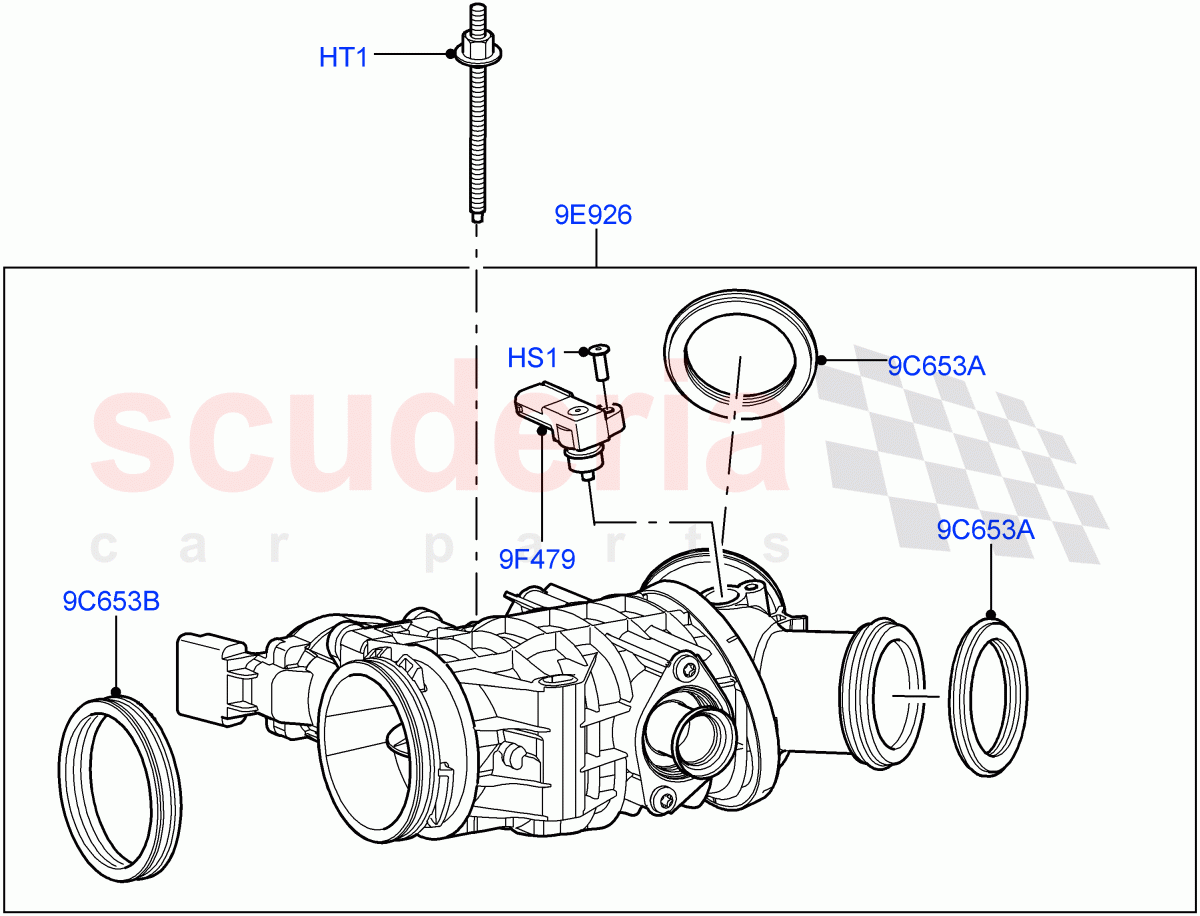

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR018267	SCREW	$1.20	To Order

Photo	Part No	Description	Price (each)	Stock
	1316035	STUD	$6.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061958	THROTTLE BODY AND MOTOR	$466.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019130	SENSOR - MANIFOLD ABSOLUTE PRESSURE	$146.93	To Order

Photo	Part No	Description	Price (each)	Stock
	1316152	SEAL - THROTTLE	$12.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR008353	SEAL - THROTTLE	$8.28	IN STOCK

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR018267	SCREW	LR018267 SCREW M6 X 20MM, MAP Sensor, Torx	$1.20	1
HT1	1316035	STUD	1316035 STUD M6 X 65 + M6 X 12	$6.93	2
9C653A	1316152	SEAL - THROTTLE IN STOCK	1316152 SEAL - THROTTLE Rear IN STOCK	$12.67	2
9C653B	LR008353	SEAL - THROTTLE IN STOCK	LR008353 SEAL - THROTTLE Front IN STOCK	$8.28	1
9E926	LR061958	THROTTLE BODY AND MOTOR	LR061958 THROTTLE BODY AND MOTOR	$466.53	1
9F479	LR019130	SENSOR - MANIFOLD ABSOLUTE PRESSURE	LR019130 SENSOR - MANIFOLD ABSOLUTE PRESSURE Sensor - Manifold Absolute Pressure (MAP)	$146.93	1
