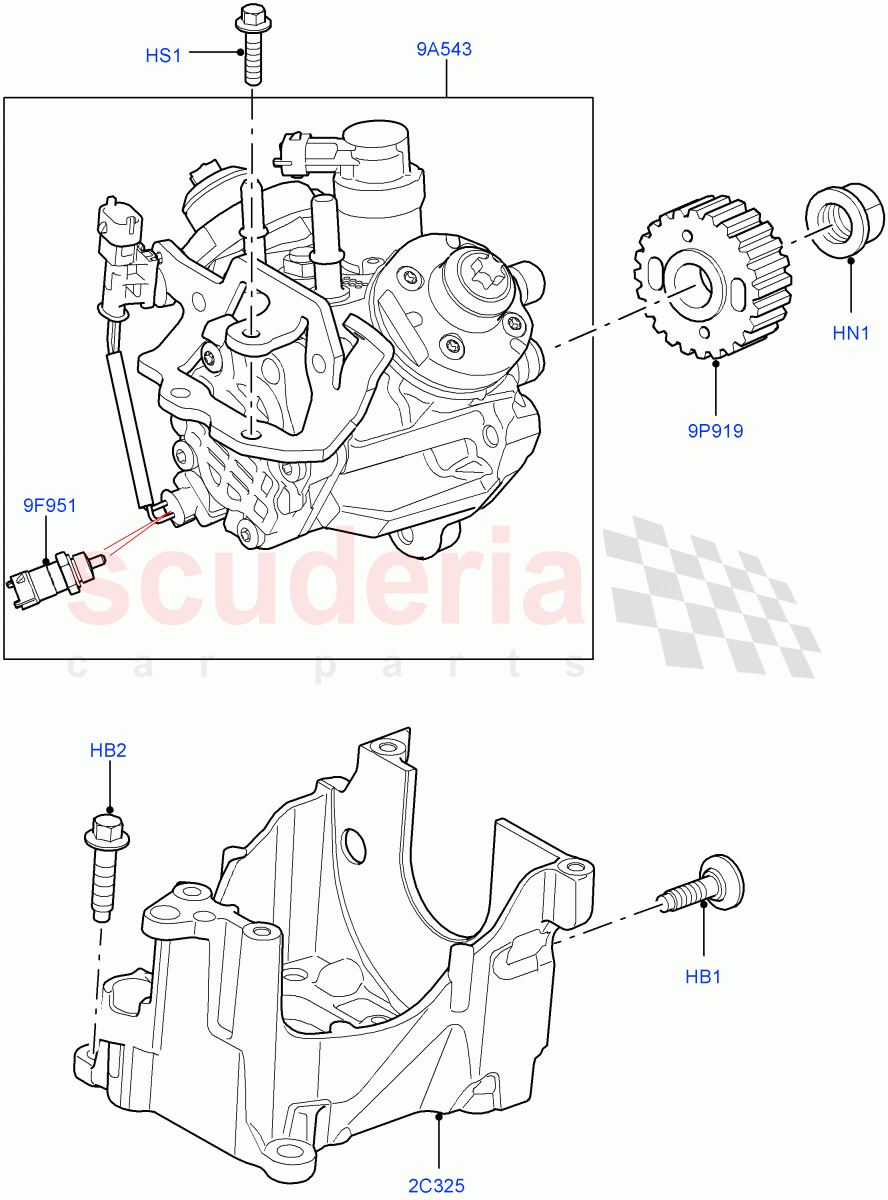

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR004693	BOLT	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000300	BOLT	$6.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013438	NUT	$7.86	To Order

Photo	Part No	Description	Price (each)	Stock
	4378449	SCREW	$2.08	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR083612	BRACKET - FUEL PUMP	$114.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079958	PUMP - FUEL INJECTION	$2,249.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023147	SENSOR - FUEL TEMPERATURE	$26.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013424	SPROCKET - FUEL PUMP DRIVE	$52.30	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR004693	BOLT	LR004693 BOLT For Fuel Pump, M8 X 22MM, Torx / From: K2000001	$2.41	3
HB2	LR000300	BOLT	LR000300 BOLT M8 X 30 / From: K2000001	$6.52	4
HN1	LR013438	NUT	LR013438 NUT Fuel Pump Gear / From: K2000001	$7.86	1
HS1	4378449	SCREW IN STOCK	4378449 SCREW Bracket, M6 x 25MM / From: K2000001 IN STOCK	$2.08	5
2C325	LR083612	BRACKET - FUEL PUMP	LR083612 BRACKET - FUEL PUMP For Fuel Pump / From: K2000001	$114.09	1
9A543	LR079958	PUMP - FUEL INJECTION	LR079958 PUMP - FUEL INJECTION From: K2000001	$2,249.41	1
9F951	LR023147	SENSOR - FUEL TEMPERATURE	LR023147 SENSOR - FUEL TEMPERATURE Fuel Temperature Sensor / From: K2000001	$26.95	1
9P919	LR013424	SPROCKET - FUEL PUMP DRIVE	LR013424 SPROCKET - FUEL PUMP DRIVE Fuel Pump Drive / From: K2000001	$52.30	1
