Name: Rear Exhaust System (Nitra Plant Build) (3.0 V6 D Gen2 Mono Turbo, LEV 160, Japanese Emission + DPF, 3.0 V6 D Gen2 Twin Turbo, EU6D Diesel + DPF Emissions) ((V) FROMK2000001)
Rating: 4.0 (1 reviews)

Rear Exhaust System (Nitra Plant Build) (3.0 V6 D Gen2 Mono Turbo, LEV 160, Japanese Emission + DPF, 3.0 V6 D Gen2 Twin Turbo, EU6D Diesel + DPF Emissions) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Rear Exhaust System (Nitra Plant Build) (3.0 V6 D Gen2 Mono Turbo, LEV 160, Japanese Emission +...

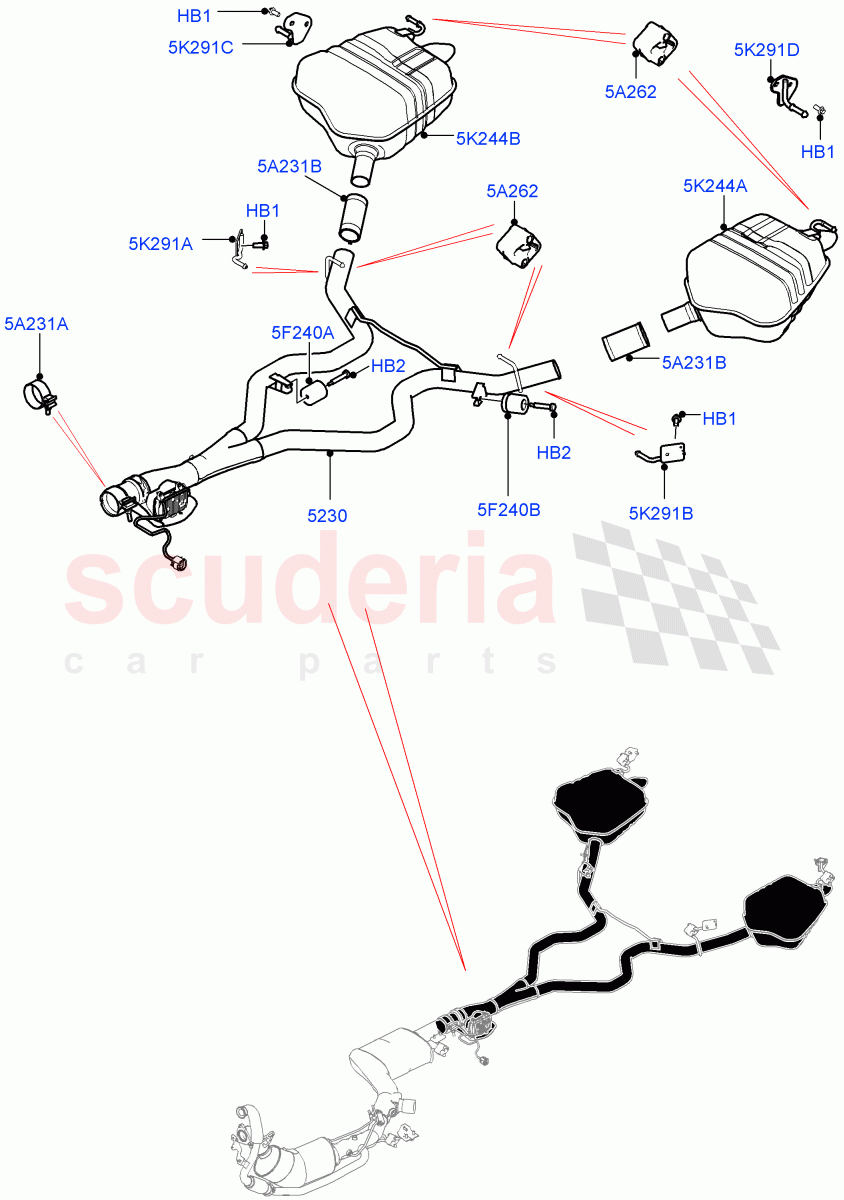

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WYG500060	BOLT	$2.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126079	MUFFLER - CENTRE	$1,296.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	$24.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036441	CLAMP - EXHAUST	$31.00	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500030	CLAMP - EXHAUST	$83.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088313	DAMPER - EXHAUST SYSTEM	$81.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088312	DAMPER - EXHAUST SYSTEM	$81.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126082	MUFFLER - REAR	$721.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126083	MUFFLER - REAR	$721.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088295	BRACKET - EXHAUST	$30.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088302	BRACKET - EXHAUST	$30.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082704	BRACKET - REAR MUFFLER	$49.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082707	BRACKET - REAR MUFFLER	$49.20	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Bracket, Hexagonal Head, M8 X 20MM / From: K2000001 IN STOCK	$2.29	8
HB2	WYG500060	BOLT	WYG500060 BOLT M8 X 70 - 8.8, Self Locking / From: K2000001	$2.64	2
5A231A	LR036441	CLAMP - EXHAUST	LR036441 CLAMP - EXHAUST 70MM, Front / From: K2000001	$31.00	1
5A231B	WCL500030	CLAMP - EXHAUST	WCL500030 CLAMP - EXHAUST 55MM, Rear / From: K2000001	$83.95	2
5A262	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER From: K2000001	$24.15	4
5F240A	LR088313	DAMPER - EXHAUST SYSTEM	LR088313 DAMPER - EXHAUST SYSTEM RH / From: K2000001	$81.08	1
5F240B	LR088312	DAMPER - EXHAUST SYSTEM	LR088312 DAMPER - EXHAUST SYSTEM LH / From: K2000001	$81.08	1
5K244A	LR126082	MUFFLER - REAR	LR126082 MUFFLER - REAR LH / From: K2000001	$721.49	1
5K244B	LR126083	MUFFLER - REAR	LR126083 MUFFLER - REAR RH / From: K2000001	$721.49	1
5K291A	LR088295	BRACKET - EXHAUST	LR088295 BRACKET - EXHAUST RH / From: K2000001	$30.54	1
5K291B	LR088302	BRACKET - EXHAUST	LR088302 BRACKET - EXHAUST LH / From: K2000001	$30.54	1
5K291C	LR082704	BRACKET - REAR MUFFLER	LR082704 BRACKET - REAR MUFFLER RH Rear / From: K2000001	$49.20	1
5K291D	LR082707	BRACKET - REAR MUFFLER	LR082707 BRACKET - REAR MUFFLER LH Rear / From: K2000001	$49.20	1
5230	LR126079	MUFFLER - CENTRE	LR126079 MUFFLER - CENTRE From: K2000001	$1,296.37	1

Rear Exhaust System (Nitra Plant Build) (3.0 V6 D Gen2 Mono Turbo, Lev 160, Japanese Emission +...

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Rear Exhaust System (Nitra Plant Build) (3.0 V6 D Gen2 Mono Turbo, LEV 160, Japanese Emission +...
