Name: Front Exhaust System (Nitra Plant Build) (3.0 V6 D Gen2 Mono Turbo, Proconve L6 Emissions, Stage V Plus DPF) ((V) FROMK2000001)
Rating: 5.0 (1 reviews)

Front Exhaust System (Nitra Plant Build) (3.0 V6 D Gen2 Mono Turbo, Proconve L6 Emissions, Stage V Plus DPF) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Front Exhaust System (Nitra Plant Build) (3.0 V6 D Gen2 Mono Turbo, Proconve L6 Emissions, Stage V...

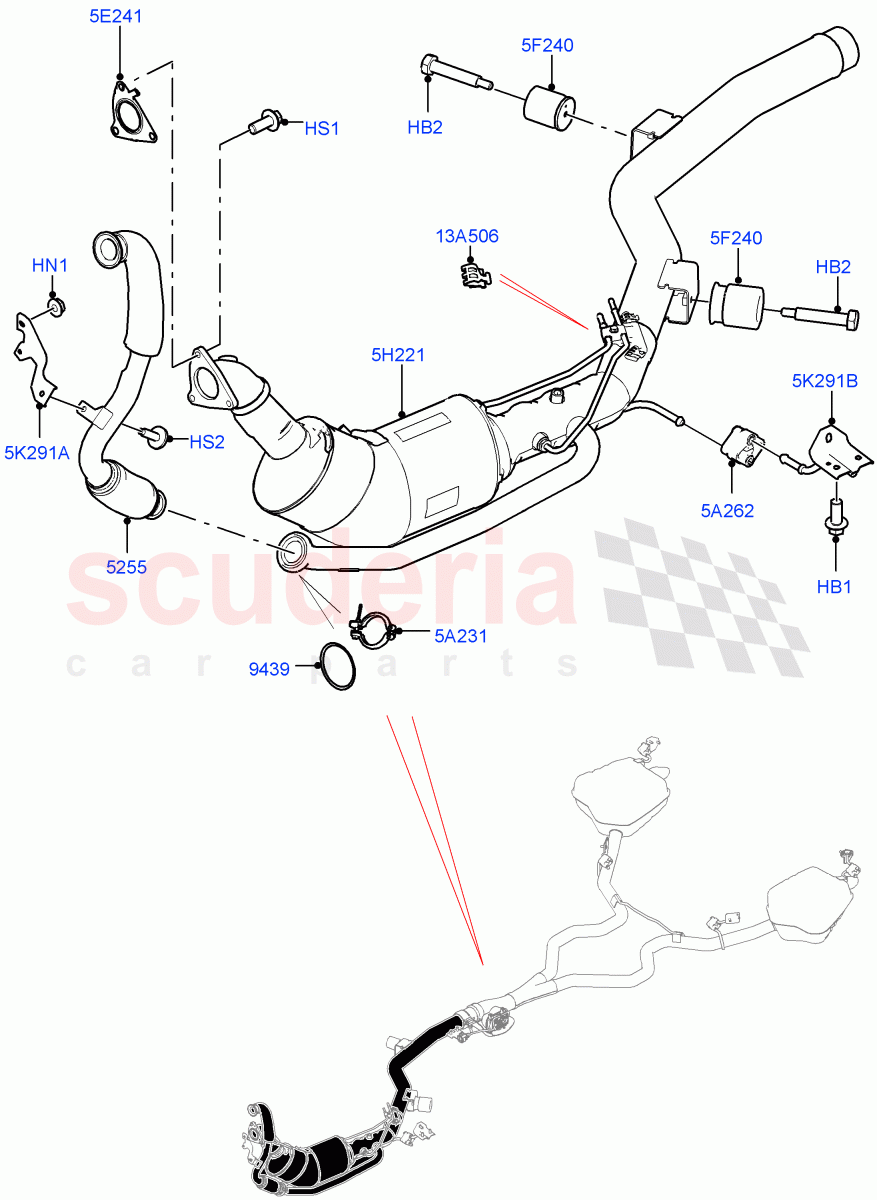

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WYG500060	BOLT	$2.64	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WYP000025	SCREW	$2.96	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG501590	SCREW	$1.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR110402	PIPE - EGR	$311.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078958	GASKET	$18.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079273	CLAMP	$26.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	$24.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016619	GASKET - EXHAUST PIPE	$22.03	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR042469	DAMPER - DAMPING MASS	$59.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077694	FILTER - DIESEL PARTICLE	$4,151.71	To Order

Photo	Part No	Description	Price (each)	Stock
	YQR000050	CLIP - WIRING	$0.79	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR067328	BRACKET - EXHAUST BRAKE SUPPORT	$55.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073792	BRACKET - EXHAUST	$32.89	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Bracket, Hexagonal Head, M8 X 20MM / From: K2000001 IN STOCK	$2.29	3
HB2	WYG500060	BOLT	WYG500060 BOLT M8 X 70 - 8.8, Self Locking / From: K2000001	$2.64	2
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 / From: K2000001 IN STOCK	$1.47	2
HS1	WYP000025	SCREW	WYP000025 SCREW Exhaust Manifold, Hexagonal Head, M8 X 20MM / From: K2000001	$2.96	3
HS2	RYG501590	SCREW IN STOCK	RYG501590 SCREW Bracket, Hexagonal Head, M6 X 20MM / From: K2000001 IN STOCK	$1.00	1
5A231	LR079273	CLAMP	LR079273 CLAMP 58MM, EGR Tube / From: K2000001	$26.86	1
5A262	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER From: K2000001	$24.15	1
5E241	LR016619	GASKET - EXHAUST PIPE IN STOCK	LR016619 GASKET - EXHAUST PIPE From: K2000001 IN STOCK	$22.03	1
5F240	LR042469	DAMPER - DAMPING MASS	LR042469 DAMPER - DAMPING MASS From: K2000001	$59.11	2
5H221	LR077694	FILTER - DIESEL PARTICLE	LR077694 FILTER - DIESEL PARTICLE From: K2000001	$4,151.71	1
5K291A	LR067328	BRACKET - EXHAUST BRAKE SUPPORT	LR067328 BRACKET - EXHAUST BRAKE SUPPORT From: K2000001	$55.10	1
5K291B	LR073792	BRACKET - EXHAUST	LR073792 BRACKET - EXHAUST From: K2000001	$32.89	1
13A506	YQR000050	CLIP - WIRING IN STOCK	YQR000050 CLIP - WIRING From: K2000001 IN STOCK	$0.79	1
5255	LR110402	PIPE - EGR	LR110402 PIPE - EGR EGR Outlet / From: K2000001	$311.38	1
9439	LR078958	GASKET	LR078958 GASKET EGR Outlet / From: K2000001	$18.59	1
