Vacuum Control And Air Injection (Solihull Plant Build, Engine Vacuum Harness) (3.0 V6 Diesel) ((V)...

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Vacuum Control And Air Injection (Solihull Plant Build, Engine Vacuum Harness) (3.0 V6 Diesel) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500190 SCREW $0.73 IN STOCK
Photo Part No Description Price (each) Stock
LR009320 STUD $2.26 To Order
Photo Part No Description Price (each) Stock
LR073587 BRACKET - HOSE $30.55 To Order
Photo Part No Description Price (each) Stock
LR042666 BRACKET - AIR DUCT SUPPORT $39.92 To Order
Photo Part No Description Price (each) Stock
LR116598 SOLENOID - CSOV $289.05 To Order
Photo Part No Description Price (each) Stock
LR078841 HOSE - VACUUM CONTROL HARNESS $508.43 To Order
LR082318 HOSE - VACUUM CONTROL HARNESS $187.89 To Order
LR095366 HOSE - VACUUM CONTROL HARNESS $413.62 To Order
Photo Part No Description Price (each) Stock
LR013570 RESERVOIR - VACUUM $40.79 To Order
Photo Part No Description Price (each) Stock
LR029415 CONNECTOR - 3-WAY $16.31 To Order
Photo Part No Description Price (each) Stock
LR116599 SOLENOID - EGR $253.71 To Order
Photo Part No Description Price (each) Stock
LR076235 SOLENOID - TURBO CONTROL $233.45 To Order
Photo Part No Description Price (each) Stock
LR071242 HOSE - VACUUM $26.69 To Order
Photo Part No Description Price (each) Stock
LR075844 HOSE - VACUUM $27.31 To Order
View All

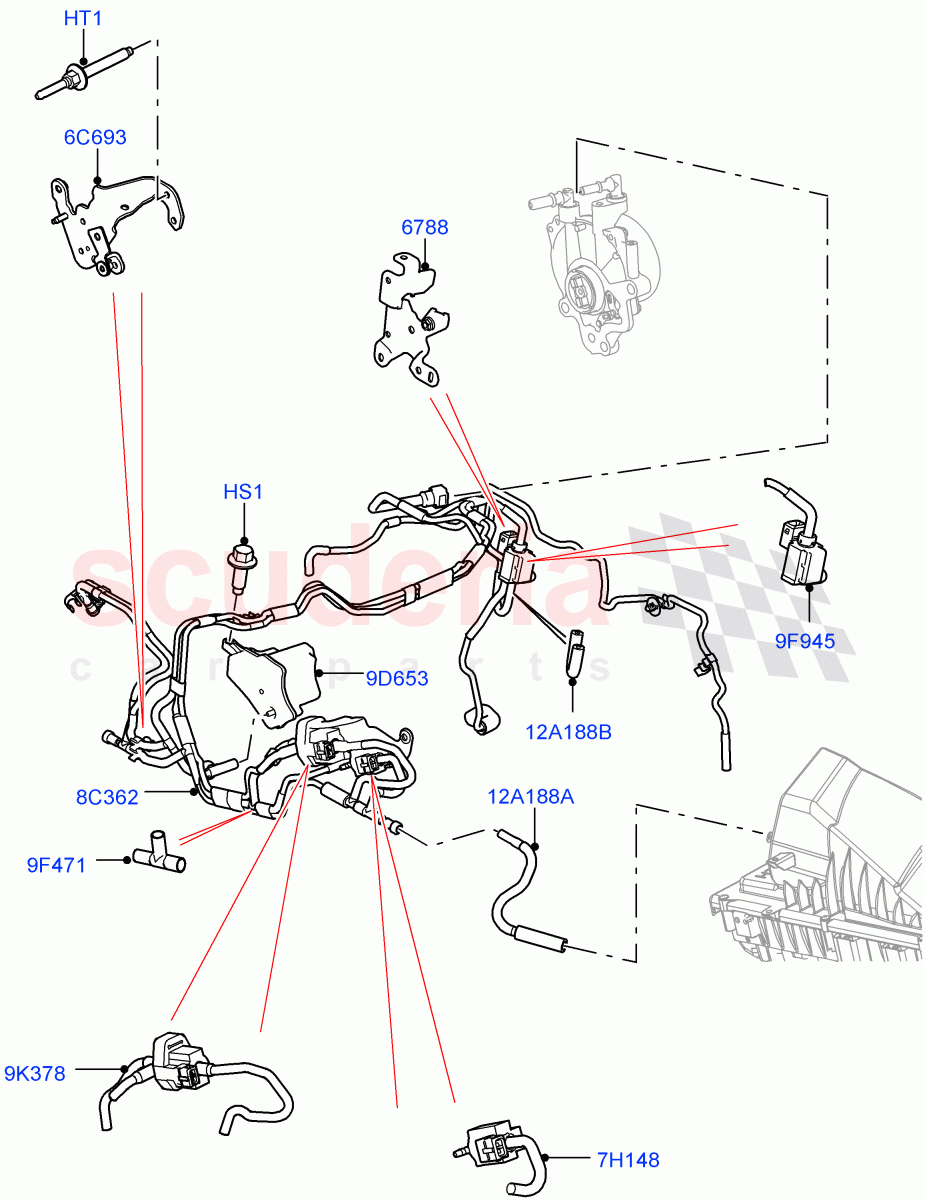

Vacuum Control And Air Injection (Solihull Plant Build, Engine Vacuum Harness) (3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 RYG500190
SCREW
Hexagonal Head, M6 X 16MM, Reservoir
IN STOCK 		$0.73 1
HT1 LR009320
STUD
Bracket, M6 X 39 / 4.5 X 24.5 		$2.26 3
6C693 LR042666
BRACKET - AIR DUCT SUPPORT
Vacuum Control Harness 		$39.92 1
7H148 LR116598
SOLENOID - CSOV
From: JA000001 		$289.05 1
8C362 LR078841
HOSE - VACUUM CONTROL HARNESS
3.0 V6 D Gen2 Mono Turbo / Includes Valves, Vacuum Control Harness 		$508.43 1
8C362 LR082318
HOSE - VACUUM CONTROL HARNESS
3.0 V6 D Low MT ROW / Includes Valves, Vacuum Control Harness 		$187.89 1
8C362 LR095366
HOSE - VACUUM CONTROL HARNESS
3.0 V6 D Gen2 Twin Turbo / Includes Valves, Vacuum Control Harness / From: KA000001 		$413.62 1
9D653 LR013570
RESERVOIR - VACUUM
To Vacuum 		$40.79 1
9F471 LR029415
CONNECTOR - 3-WAY
To Vacuum Hose 		$16.31 1
9F945 LR116599
SOLENOID - EGR
From: JA000001 		$253.71 1
9K378 LR076235
SOLENOID - TURBO CONTROL 		$233.45 1
12A188A LR071242
HOSE - VACUUM
To Air Cleaner Box 		$26.69 1
12A188B LR075844
HOSE - VACUUM
U-Type 		$27.31 1
6788 LR073587
BRACKET - HOSE
To Vacuum Hose 		$30.55 1
