Name: Exhaust Fluid Injection System (Solihull Plant Build, Tank and Lines) (3.0 V6 Diesel, With Diesel Exh Fluid Emission Tank) ((V) FROMHA000001)
Rating: 5.0 (1 reviews)

Exhaust Fluid Injection System (Solihull Plant Build, Tank and Lines) (3.0 V6 Diesel, With Diesel Exh Fluid Emission Tank) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Exhaust Fluid Injection System (Solihull Plant Build, Tank and Lines) (3.0 V6 Diesel, With Diesel...

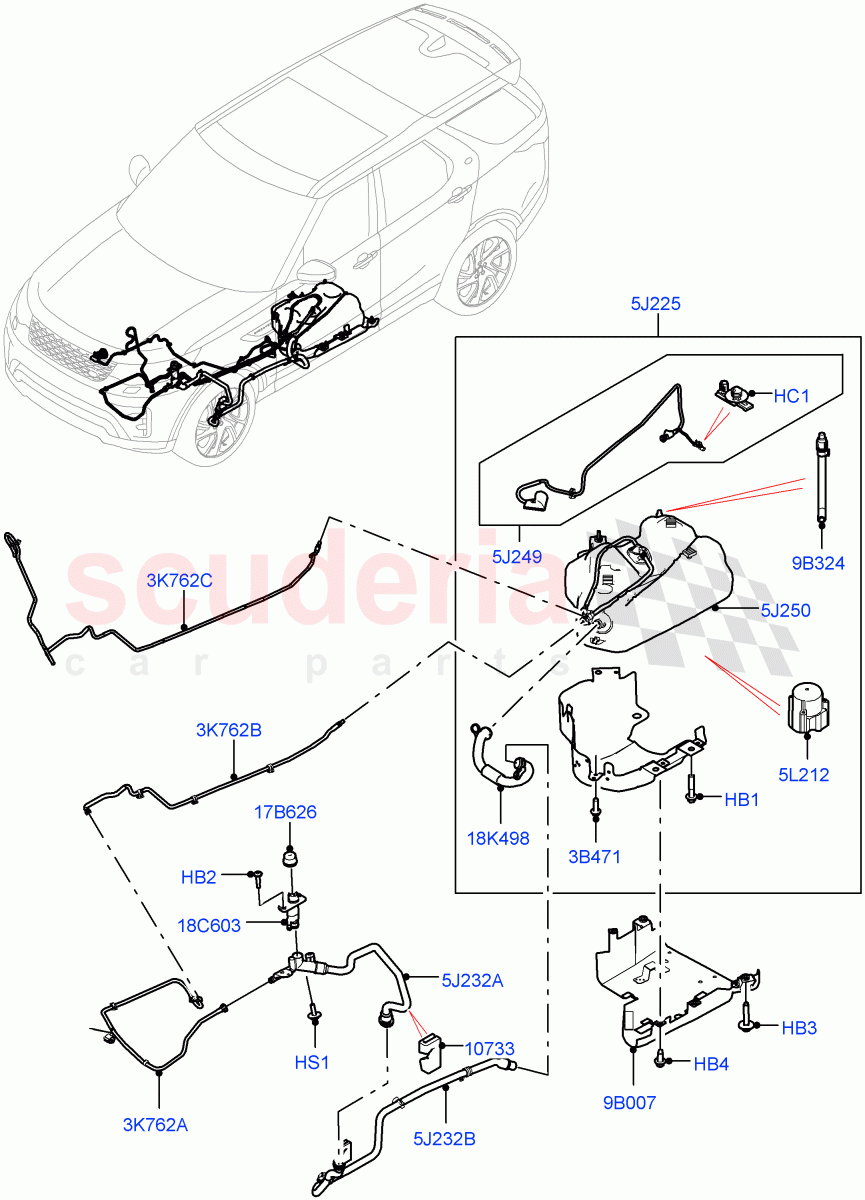

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000628	BOLT	$4.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034354	BOLT - PAN - TORX	$1.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078393	BOLT AND WASHER - HEX.HEAD	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500200	BOLT	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036382	CLIP	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP500110	SCREW	$0.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR101817	GROMMET - WIRING	$4.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR104346	BOLT - HEX. HEAD - FLANGED	$6.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096827	TANK&SHIELD - DIESEL EXHAUST FLUID	$1,034.64	To Order
	LR112101	TANK&SHIELD - DIESEL EXHAUST FLUID	$1,053.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR104347	TUBE	$240.25	To Order
	109123535	TUBE - DIESEL EXHAUST FLUID FEED	$181.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR160433	TANK&SHIELD - DIESEL EXHAUST FLUID	$1,137.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084743	PUMP - DIESEL EXHAUST FLUID	$557.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090186	SHIELD - TANK	$161.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR104348	TUBE - FUEL	$111.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078768	CAP - FILLER	$27.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092720	PIPE - FILLER	$143.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062403	HOSE - TANK	$37.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088517	TUBE - BREATHER	$74.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071240	TUBE - BREATHER	$63.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095779	PIPE - TANK VENT	$40.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071891	HOSE - TANK	$68.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR071243	HOSE - TANK	$52.79	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR000628	BOLT	LR000628 BOLT Cradle To Body, Hexagonal Head, M8 x 40MM	$4.61	3
HB2	LR034354	BOLT - PAN - TORX	LR034354 BOLT - PAN - TORX Filler Neck, M6 x 19MM, Torx	$1.07	2
HB3	LR078393	BOLT AND WASHER - HEX.HEAD	LR078393 BOLT AND WASHER - HEX.HEAD Cradle To Body, M8 x 40MM	$1.55	2
HB4	RYG500200	BOLT	RYG500200 BOLT Cradle To Body, Hexagonal Head, M8 X 16MM	$0.67	1
HC1	LR036382	CLIP	LR036382 CLIP 6.5 x 5MM	$0.59	1
HS1	AYP500110	SCREW IN STOCK	AYP500110 SCREW Bolt And Washer, Hexagonal Head, M6 X 20MM IN STOCK	$0.96	1
3B471	LR104346	BOLT - HEX. HEAD - FLANGED	LR104346 BOLT - HEX. HEAD - FLANGED	$6.04	1
3K762A	LR088517	TUBE - BREATHER	LR088517 TUBE - BREATHER Front	$74.48	1
3K762B	LR071240	TUBE - BREATHER	LR071240 TUBE - BREATHER Centre	$63.68	1
3K762C	LR095779	PIPE - TANK VENT	LR095779 PIPE - TANK VENT	$40.62	1
5J225	LR096827	TANK&SHIELD - DIESEL EXHAUST FLUID	LR096827 TANK&SHIELD - DIESEL EXHAUST FLUID Complete Assembly / To: JA048189	$1,034.64	1
5J225	LR112101	TANK&SHIELD - DIESEL EXHAUST FLUID	LR112101 TANK&SHIELD - DIESEL EXHAUST FLUID Complete Assembly / From: JA048190	$1,053.03	1
5J232A	LR071891	HOSE - TANK IN STOCK	LR071891 HOSE - TANK Front, Pipe IN STOCK	$68.68	1
5J232B	LR071243	HOSE - TANK	LR071243 HOSE - TANK Centre, Pipe	$52.79	1
5J249	LR104347	TUBE	LR104347 TUBE Feed / To: JA048189	$240.25	1
5J249	109123535	TUBE - DIESEL EXHAUST FLUID FEED IN STOCK	109123535 TUBE - DIESEL EXHAUST FLUID FEED Feed / From: JA048190 IN STOCK	$181.61	1
5J250	LR160433	TANK&SHIELD - DIESEL EXHAUST FLUID	LR160433 TANK&SHIELD - DIESEL EXHAUST FLUID With Pump	$1,137.26	1
5L212	LR084743	PUMP - DIESEL EXHAUST FLUID	LR084743 PUMP - DIESEL EXHAUST FLUID Service Kit	$557.59	1
9B007	LR090186	SHIELD - TANK	LR090186 SHIELD - TANK With Fixing Parts	$161.74	1
9B324	LR104348	TUBE - FUEL	LR104348 TUBE - FUEL	$111.78	1
17B626	LR078768	CAP - FILLER	LR078768 CAP - FILLER Filler Neck	$27.11	1
18C603	LR092720	PIPE - FILLER	LR092720 PIPE - FILLER Filler Neck	$143.41	1
18K498	LR062403	HOSE - TANK	LR062403 HOSE - TANK To Tank	$37.93	1
10733	LR101817	GROMMET - WIRING	LR101817 GROMMET - WIRING	$4.12	1
