Name: Intercooler/Air Ducts And Hoses (Nitra Plant Build) (3.0 V6 D Low MT ROW, 3.0 V6 D Gen2 Mono Turbo) ((V) FROMK2000001)
Rating: 5.0 (1 reviews)

Intercooler/Air Ducts And Hoses (Nitra Plant Build) (3.0 V6 D Low MT ROW, 3.0 V6 D Gen2 Mono Turbo) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Intercooler/Air Ducts And Hoses (Nitra Plant Build) (3.0 V6 D Low MT ROW, 3.0 V6 D Gen2 Mono Turbo)...

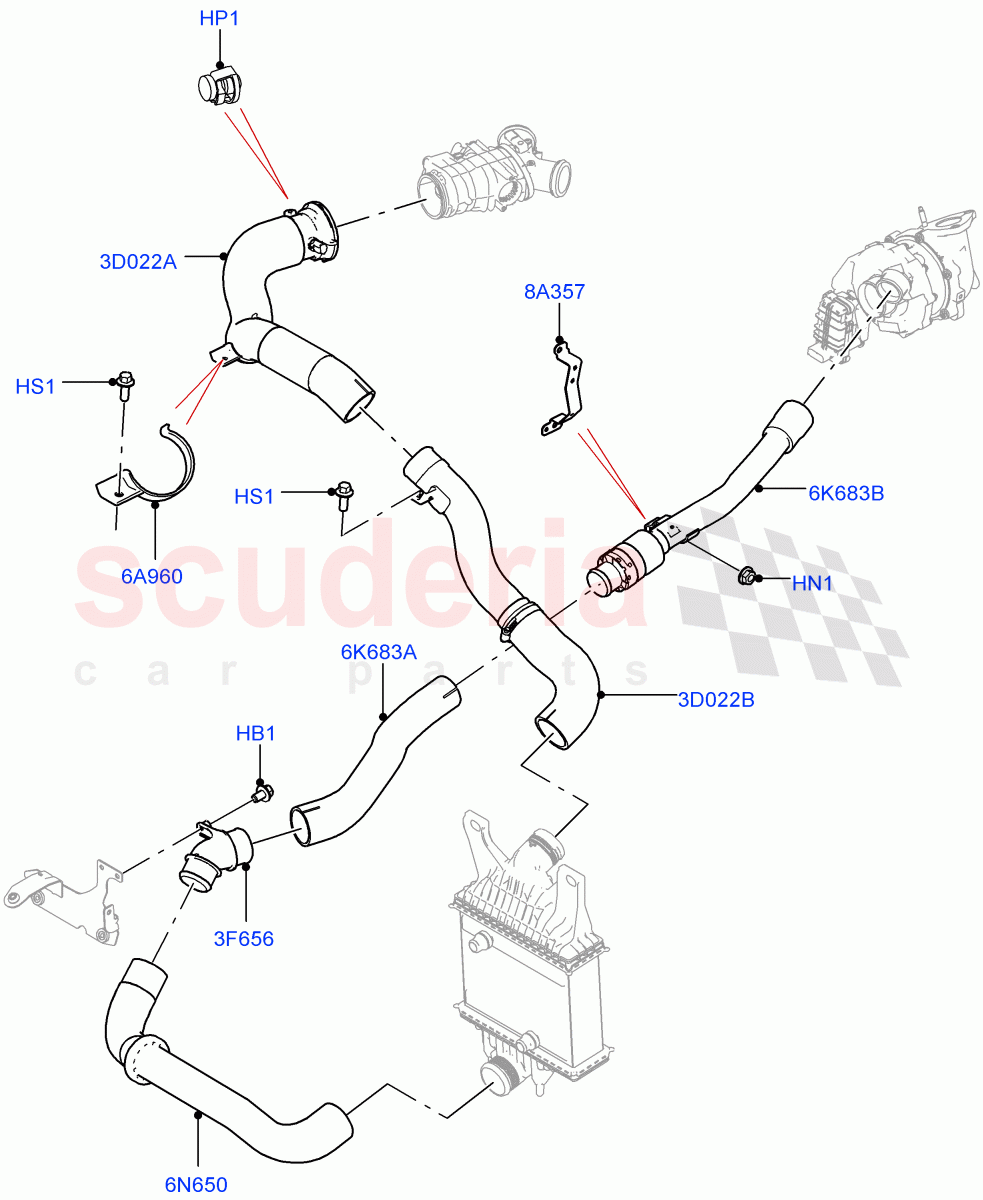

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS106106	BOLT	$0.92	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011038	PLUG - BLANKING	$5.13	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	$1.24	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR068879	CONNECTION - TUBE	$29.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082425	BRACKET - COOLING HOSE	$37.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088290	HOSE - AIR	$122.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036489	BRACKET - TUBE	$11.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117083	HOSE - COMPRESSED AIR	$150.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062410	HOSE - COMPRESSED AIR	$311.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR067016	HOSE - COMPRESSED AIR	$155.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR109965	TUBE - OUTLET	$303.26	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS106106	BOLT	FS106106 BOLT Hexagonal Head, M6 X 10MM / From: K2000001	$0.92	1
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 / From: K2000001 IN STOCK	$1.47	1
HP1	LR011038	PLUG - BLANKING	LR011038 PLUG - BLANKING Blanking, Cooling System Bleed / From: K2000001	$5.13	1
HS1	FS106166	SCREW IN STOCK	FS106166 SCREW Hexagonal Head, M6 X 16MM / From: K2000001 IN STOCK	$1.24	2
3D022A	LR117083	HOSE - COMPRESSED AIR	LR117083 HOSE - COMPRESSED AIR Intercooler To Throttle Body, With Clamps / From: K2000001	$150.62	1
3D022B	LR062410	HOSE - COMPRESSED AIR	LR062410 HOSE - COMPRESSED AIR Intercooler Outlet, With Clamps / From: K2000001	$311.13	1
3F656	LR068879	CONNECTION - TUBE	LR068879 CONNECTION - TUBE From: K2000001	$29.29	1
6A960	LR082425	BRACKET - COOLING HOSE	LR082425 BRACKET - COOLING HOSE Air Intake Hose / From: K2000001	$37.24	1
6K683A	LR067016	HOSE - COMPRESSED AIR	LR067016 HOSE - COMPRESSED AIR Inlet, Shut Off Valve, With Clamps / From: K2000001	$155.95	1
6K683B	LR109965	TUBE - OUTLET	LR109965 TUBE - OUTLET Turbocharger Outlet, With Clamps / From: K2000001	$303.26	1
6N650	LR088290	HOSE - AIR	LR088290 HOSE - AIR Bottom, Intercooler Inlet, With Clamps / From: K2000001	$122.29	1
8A357	LR036489	BRACKET - TUBE	LR036489 BRACKET - TUBE Turbocharger Outlet / From: K2000001	$11.09	1

Intercooler/Air Ducts And Hoses (Nitra Plant Build) (3.0 V6 D Low Mt Row, 3.0 V6 D Gen2 Mono Turbo)...

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Intercooler/Air Ducts And Hoses (Nitra Plant Build) (3.0 V6 D Low MT ROW, 3.0 V6 D Gen2 Mono Turbo)...
