Name: Intercooler/Air Ducts And Hoses (Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo) ((V) FROMFA000001)
Rating: 4.6 (1 reviews)

Intercooler/Air Ducts And Hoses (Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo) ((V) FROMFA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Intercooler/Air Ducts And Hoses (Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo) ((V) FROMFA000001)

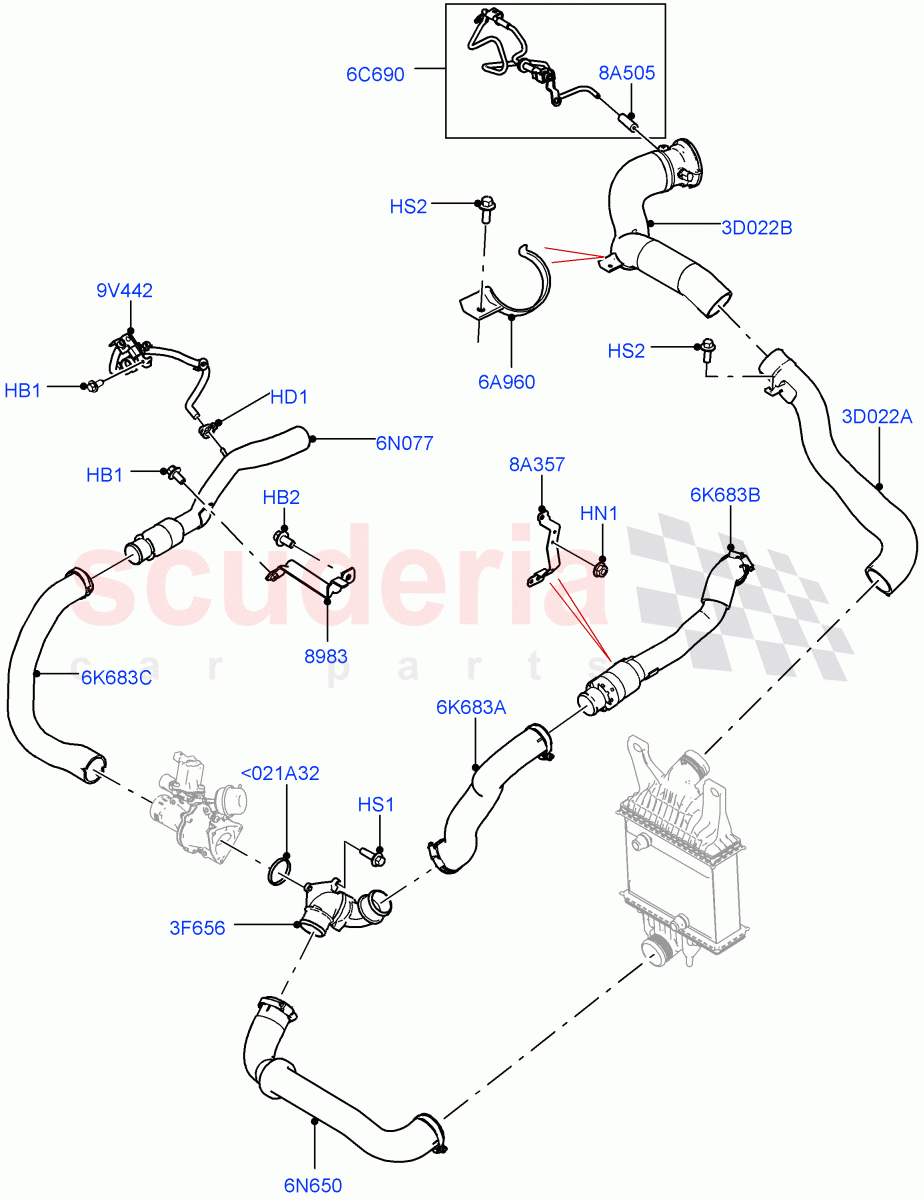

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS106126	BOLT	$0.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR016628	CLAMP - TUBE	$2.77	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYP500200	SCREW	$0.95	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	$1.24	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR067037	CONNECTOR - HOSE	$33.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082425	BRACKET - COOLING HOSE	$37.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072995	PIPE - TURBO BOOST	$100.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094281	TUBE - AIR INLET	$341.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088290	HOSE - AIR	$122.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036489	BRACKET - TUBE	$11.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093666	HOSE - SYMPOSER	$125.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014386	SENSOR - AIR CHARGE	$115.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062410	HOSE - COMPRESSED AIR	$311.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117083	HOSE - COMPRESSED AIR	$150.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062463	TUBE - OUTLET	$215.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR109964	TUBE - OUTLET	$264.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062500	HOSE - COMPRESSED AIR	$202.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036414	SEAL - H-PIECE - HP AIR DUCTS	$35.34	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<021A32	LR036414	SEAL - H-PIECE - HP AIR DUCTS	LR036414 SEAL - H-PIECE - HP AIR DUCTS T-Connector / From: KA000001	$35.34	1
HB1	FS106126	BOLT IN STOCK	FS106126 BOLT Hexagonal Head, M6 x 12MM / From: KA000001 IN STOCK	$0.52	2
HD1	LR016628	CLAMP - TUBE	LR016628 CLAMP - TUBE Hose Clamp / From: KA000001	$2.77	1
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 / From: KA000001 IN STOCK	$1.47	1
HS1	RYP500200	SCREW	RYP500200 SCREW Hexagonal Head, M6 X 20MM / From: KA000001	$0.95	3
HS2	FS106166	SCREW IN STOCK	FS106166 SCREW Hexagonal Head, M6 X 16MM / From: KA000001 IN STOCK	$1.24	2
3D022A	LR062410	HOSE - COMPRESSED AIR	LR062410 HOSE - COMPRESSED AIR Intercooler Outlet, With Clamps / From: KA000001	$311.16	1
3D022B	LR117083	HOSE - COMPRESSED AIR	LR117083 HOSE - COMPRESSED AIR Intercooler To Throttle Body, With Clamps / From: KA000001	$150.63	1
3F656	LR067037	CONNECTOR - HOSE	LR067037 CONNECTOR - HOSE T-Connector / From: KA000001	$33.70	1
6A960	LR082425	BRACKET - COOLING HOSE	LR082425 BRACKET - COOLING HOSE Air Intake Hose / From: KA000001	$37.25	1
6C690	LR072995	PIPE - TURBO BOOST	LR072995 PIPE - TURBO BOOST From: KA000001	$100.42	1
6K683A	LR062463	TUBE - OUTLET	LR062463 TUBE - OUTLET LH, Inlet, T-Connector, With Clamps / From: KA000001	$215.50	1
6K683B	LR109964	TUBE - OUTLET	LR109964 TUBE - OUTLET LH, Turbocharger Outlet, With Clamps / From: KA000001	$264.06	1
6K683C	LR062500	HOSE - COMPRESSED AIR	LR062500 HOSE - COMPRESSED AIR RH, Inlet, Shut Off Valve, With Clamps / From: KA000001	$202.99	1
6N077	LR094281	TUBE - AIR INLET	LR094281 TUBE - AIR INLET RH, Turbocharger Outlet, With Clamps / From: KA000001	$341.89	1
6N650	LR088290	HOSE - AIR	LR088290 HOSE - AIR Bottom, Intercooler Inlet, With Clamps / From: KA000001	$122.30	1
8A357	LR036489	BRACKET - TUBE	LR036489 BRACKET - TUBE Turbocharger Outlet / From: KA000001	$11.09	1
8A505	LR093666	HOSE - SYMPOSER	LR093666 HOSE - SYMPOSER Boost Pipe / From: KA000001	$125.40	1
9V442	LR014386	SENSOR - AIR CHARGE	LR014386 SENSOR - AIR CHARGE Secondary Compressor Outlet Pressure Sensor / From: KA000001	$115.87	1

Intercooler/Air Ducts And Hoses (Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo) ((V) Fromfa000001)

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Intercooler/Air Ducts And Hoses (Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo) ((V) FROMFA000001)
