Name: Exhaust Manifold (Solihull Plant Build) (3.0L 24V V6 Turbo Diesel Std Flow, 3.0 V6 Diesel Electric Hybrid Eng, 3.0 V6 D Low MT ROW, 3.0L 24V DOHC V6 TC Diesel, 3.0 V6 D Gen2 Mono Turbo) ((V) FROMAA000001)
Rating: 4.3 (1 reviews)

Exhaust Manifold (Solihull Plant Build) (3.0L 24V V6 Turbo Diesel Std Flow, 3.0 V6 Diesel Electric Hybrid Eng, 3.0 V6 D Low MT ROW, 3.0L 24V DOHC V6 TC Diesel, 3.0 V6 D Gen2 Mono Turbo) ((V) FROMAA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Exhaust Manifold (Solihull Plant Build) (3.0L 24V V6 Turbo Diesel Std Flow, 3.0 V6 Diesel Electric...

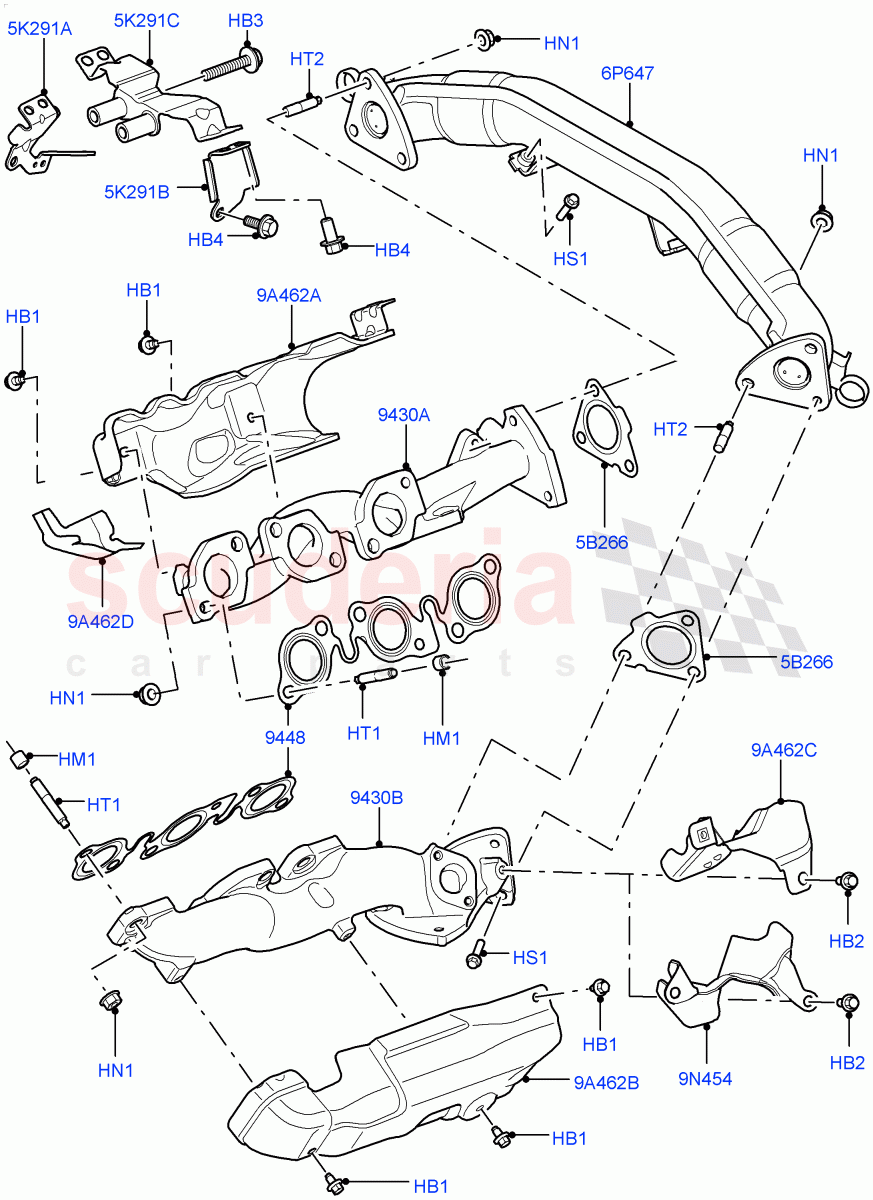

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR014200	BOLT - HEX.HEAD	$1.09	To Order

Photo	Part No	Description	Price (each)	Stock
	1316028	BOLT	$1.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LYG500220	BOLT	$1.40	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108166	BOLT	$0.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1003736	SPACER	$4.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106277	NUT - HEX. - FLANGED	$2.17	IN STOCK
	LR105433	NUT - HEX. - FLANGED	$2.95	To Order
	LR106277	NUT - HEX. - FLANGED	$2.17	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR122427	BOLT	$4.73	IN STOCK
	LR122427	BOLT	$4.73	IN STOCK
	LR122427	BOLT	$4.73	IN STOCK

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1357627	STUD	$2.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR113358	STUD	$4.44	To Order

Photo	Part No	Description	Price (each)	Stock
	1336543	GASKET - EXHAUST MANIFOLD	$19.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072304	GASKET - EXHAUST MANIFOLD	$15.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038751	PIPE - EXHAUST CROSSOVER	$694.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062603	MANIFOLD - EXHAUST	$385.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061960	MANIFOLD - EXHAUST	$447.72	To Order
	LR061961	MANIFOLD - EXHAUST	$458.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061965	HEAT SHIELD - EXHAUST MANIFOLD	$21.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR080309	BRACKET - EXHAUST PIPE MOUNTING	$24.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029737	BRACKET - EXHAUST PIPE MOUNTING	$23.84	To Order

Photo	Part No	Description	Price (each)	Stock
	WCU500130	BRACKET - EXHAUST PIPE MOUNTING	$87.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031387	HEAT SHIELD - EXHAUST MANIFOLD	$67.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061963	HEAT SHIELD - EXHAUST MANIFOLD	$163.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR069682	HEAT SHIELD - EXHAUST MANIFOLD	$225.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038672	HEAT SHIELD - EXHAUST MANIFOLD	$20.05	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR014200	BOLT - HEX.HEAD	LR014200 BOLT - HEX.HEAD Heat Shield, Hexagonal Head, M6 X 10MM	$1.09	4
HB2	1316028	BOLT	1316028 BOLT Heat Shield, M6 X 16MM	$1.31	1
HB3	LYG500220	BOLT	LYG500220 BOLT Hexagonal Head, M8 X 56MM	$1.40	2
HB4	FS108166	BOLT IN STOCK	FS108166 BOLT Hexagonal Head, M8 X 16MM IN STOCK	$0.68	6
HM1	1003736	SPACER	1003736 SPACER 8.5 x 10MM, Spacer For Exhaust Manifold Bolt	$4.27	2
HN1	LR106277	NUT - HEX. - FLANGED IN STOCK	LR106277 NUT - HEX. - FLANGED M8 / To: HA010936 IN STOCK	$2.17	18
HN1	LR105433	NUT - HEX. - FLANGED	LR105433 NUT - HEX. - FLANGED M8 / From: HA010937 / To: JA059933	$2.95	18
HN1	LR106277	NUT - HEX. - FLANGED IN STOCK	LR106277 NUT - HEX. - FLANGED M8 / From: JA059934 IN STOCK	$2.17	18
HS1	LR122427	BOLT IN STOCK	LR122427 BOLT For Exhaust Crossover Pipe, Hi temp, M8 X 25MM / To: KA083551 IN STOCK	$4.73	4
HS1	LR122427	BOLT IN STOCK	LR122427 BOLT From Crossover Tube, M8 X 25MM / To: KA083551 IN STOCK	$4.73	1
HS1	LR122427	BOLT IN STOCK	LR122427 BOLT For Exhaust Crossover Pipe, Hi temp, M8 X 25MM / From: KA083552 IN STOCK	$4.73	4
HS1	LR122427	BOLT IN STOCK	LR122427 BOLT From Crossover Tube, M8 X 25MM / From: KA083552 IN STOCK	$4.73	1
HT1	1357627	STUD IN STOCK	1357627 STUD M8 X 17 + M8 X 19, Manifold To Cylinder Head IN STOCK	$2.53	12
HT2	LR113358	STUD	LR113358 STUD For Exhaust Crossover Pipe, M8 X 16MM, M8 x 8MM	$4.44	5
5B266	LR072304	GASKET - EXHAUST MANIFOLD	LR072304 GASKET - EXHAUST MANIFOLD Cross Over Pipe To Exhaust Manifold	$15.13	2
5K291A	LR080309	BRACKET - EXHAUST PIPE MOUNTING	LR080309 BRACKET - EXHAUST PIPE MOUNTING 3.0 V6 D Gen2 Mono Turbo / RH	$24.50	1
5K291B	LR029737	BRACKET - EXHAUST PIPE MOUNTING	LR029737 BRACKET - EXHAUST PIPE MOUNTING 3.0 V6 D Gen2 Mono Turbo / LH	$23.84	1
5K291C	WCU500130	BRACKET - EXHAUST PIPE MOUNTING	WCU500130 BRACKET - EXHAUST PIPE MOUNTING Centre, For Exhaust Crossover Pipe	$87.95	1
6P647	LR038751	PIPE - EXHAUST CROSSOVER	LR038751 PIPE - EXHAUST CROSSOVER Pipe - Exhaust Crossover	$694.23	1
9A462A	LR031387	HEAT SHIELD - EXHAUST MANIFOLD	LR031387 HEAT SHIELD - EXHAUST MANIFOLD RH, Exhaust Manifold	$67.46	1
9A462B	LR061963	HEAT SHIELD - EXHAUST MANIFOLD	LR061963 HEAT SHIELD - EXHAUST MANIFOLD LH, Exhaust Manifold	$163.43	1
9A462C	LR069682	HEAT SHIELD - EXHAUST MANIFOLD	LR069682 HEAT SHIELD - EXHAUST MANIFOLD 3.0 V6 D Gen2 Mono Turbo / LH, Cross Over Pipe To Exhaust Manifold	$225.42	1
9A462D	LR038672	HEAT SHIELD - EXHAUST MANIFOLD	LR038672 HEAT SHIELD - EXHAUST MANIFOLD Exhaust Manifold, RH Front	$20.05	1
9N454	LR061965	HEAT SHIELD - EXHAUST MANIFOLD	LR061965 HEAT SHIELD - EXHAUST MANIFOLD 3.0 V6 D Low MT ROW / LH, Cross Over Pipe To Exhaust Manifold	$21.91	1
9430A	LR062603	MANIFOLD - EXHAUST	LR062603 MANIFOLD - EXHAUST 3.0 V6 D Gen2 Mono Turbo / RH	$385.30	1
9430B	LR061960	MANIFOLD - EXHAUST	LR061960 MANIFOLD - EXHAUST 3.0 V6 D Gen2 Mono Turbo / LH	$447.72	1
9430B	LR061961	MANIFOLD - EXHAUST	LR061961 MANIFOLD - EXHAUST 3.0 V6 D Low MT ROW / LH	$458.97	1
9448	1336543	GASKET - EXHAUST MANIFOLD	1336543 GASKET - EXHAUST MANIFOLD Exhaust Manifold	$19.93	2
