Cylinder Head (Solihull Plant Build) (3.0 V6 D Low Mt Row, 3.0 V6 D Gen2 Mono Turbo, 3.0 V6 D Gen2...

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Cylinder Head (Solihull Plant Build) (3.0 V6 D Low MT ROW, 3.0 V6 D Gen2 Mono Turbo, 3.0 V6 D Gen2...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1102774 PLUG - ENGINE $6.55 To Order
Photo Part No Description Price (each) Stock
LR000780 PLUG - ENGINE $1.13 To Order
Photo Part No Description Price (each) Stock
LR003600 RIVET - BLIND $1.24 To Order
Photo Part No Description Price (each) Stock
LR018831 SCREW $3.26 IN STOCK
Photo Part No Description Price (each) Stock
RYG500220 SCREW $3.46 IN STOCK
Photo Part No Description Price (each) Stock
LR014249 CYLINDER HEAD $2,602.24 To Order
LR083672 CYLINDER HEAD $2,538.39 To Order
Photo Part No Description Price (each) Stock
LR013063 GASKET-CYLINDER HEAD $101.47 To Order
LR013066 GASKET - CYLINDER HEAD $101.47 To Order
LR013070 GASKET - CYLINDER HEAD $101.47 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1331316 BOLT - CYLINDER HEAD $4.48 To Order
Photo Part No Description Price (each) Stock
LR008130 VALVE - EXHAUST $32.51 To Order
Photo Part No Description Price (each) Stock
1311281 VALVE - INLET $21.65 To Order
Photo Part No Description Price (each) Stock
LR071681 SPRING - VALVE $12.56 To Order
Photo Part No Description Price (each) Stock
1311283 RETAINER - VALVE SPRING $3.89 To Order
Photo Part No Description Price (each) Stock
1041831 COLLET - VALVE SPRING RETAINER $7.26 To Order
Photo Part No Description Price (each) Stock
1336545 ARM - FOLLOWER $33.71 To Order
Photo Part No Description Price (each) Stock
1311285 SEAL - VALVE STEM $14.00 To Order
Photo Part No Description Price (each) Stock
1316119 SWITCH - OIL PRESSURE $28.82 To Order
Photo Part No Description Price (each) Stock
LR063057 SENSOR - CYLINDER HEAD TEMPERATURE $77.50 To Order
Photo Part No Description Price (each) Stock
LR013458 SENSOR - CAMSHAFT POSITION $309.53 To Order
View All

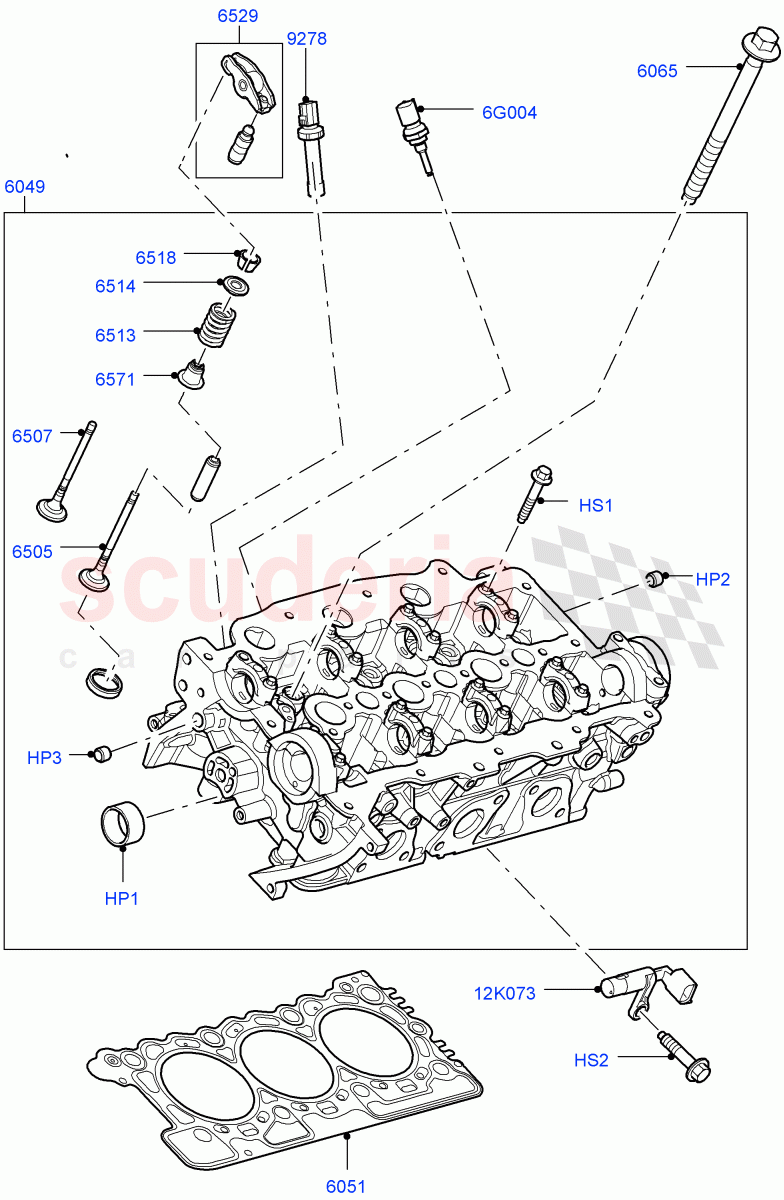

Cylinder Head (Solihull Plant Build) (3.0 V6 D Low MT ROW, 3.0 V6 D Gen2 Mono Turbo, 3.0 V6 D Gen2 Twin Turbo) ((V) FROMFA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HP1 1102774
PLUG - ENGINE
22MM 		$6.55 4
HP2 LR000780
PLUG - ENGINE
10 MM 		$1.13 2
HP3 LR003600
RIVET - BLIND
Blanking, 		$1.24 1
HS1 LR018831
SCREW
M6 x 35MM
IN STOCK 		$3.26 36
HS2 RYG500220
SCREW
Hexagonal Head, M6 X 20MM
IN STOCK 		$3.46 2
6G004 LR063057
SENSOR - CYLINDER HEAD TEMPERATURE
Sensor - Cylinder Head Temperature 		$77.50 1
12K073 LR013458
SENSOR - CAMSHAFT POSITION
Camshaft Position Sensor 		$309.53 1
6049 LR014249
CYLINDER HEAD
RH 		$2,602.24 1
6049 LR083672
CYLINDER HEAD
LH 		$2,538.39 1
6051 LR013063
GASKET-CYLINDER HEAD
Grade 2 		$101.47 -
6051 LR013066
GASKET - CYLINDER HEAD
Grade 3 		$101.47 -
6051 LR013070
GASKET - CYLINDER HEAD
Grade 4 		$101.47 -
6051 LR013073
GASKET-CYLINDER HEAD
Grade 5 		$101.47 -
6065 1331316
BOLT - CYLINDER HEAD
M13 X 155 		$4.48 16
6505 LR008130
VALVE - EXHAUST 		$32.51 12
6507 1311281
VALVE - INLET 		$21.65 12
6513 LR071681
SPRING - VALVE 		$12.56 24
6514 1311283
RETAINER - VALVE SPRING 		$3.89 24
6518 1041831
COLLET - VALVE SPRING RETAINER 		$7.26 48
6529 1336545
ARM - FOLLOWER 		$33.71 24
6571 1311285
SEAL - VALVE STEM 		$14.00 24
9278 1316119
SWITCH - OIL PRESSURE 		$28.82 1
