Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] - Fuel Lines (Nitra Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, Fuel Tank-Diesel With Filters) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR049397 CLIP - SPECIAL $2.71 To Order
Photo Part No Description Price (each) Stock
LR105597 CLIP $5.94 To Order
LR138371 CLIP $16.29 To Order
Photo Part No Description Price (each) Stock
LR004596 CLIP $1.69 To Order
Photo Part No Description Price (each) Stock
LR087242 NUT - HEX. $1.47 To Order
Photo Part No Description Price (each) Stock
RYG500900 SCREW $4.21 To Order
Photo Part No Description Price (each) Stock
LR071774 SCREW $2.31 To Order
Photo Part No Description Price (each) Stock
LR052757 STUD $2.29 To Order
Photo Part No Description Price (each) Stock
LR082756 TUBE - FUEL $58.50 To Order
Photo Part No Description Price (each) Stock
LR032034 CAP - PROTECTIVE $1.56 To Order
Photo Part No Description Price (each) Stock
LR101802 FILTER - FUEL $99.60 To Order
Photo Part No Description Price (each) Stock
LR103234 FILTER - FUEL - PRIMARY $86.23 To Order
Photo Part No Description Price (each) Stock
LR040125 CLIP - FUEL PIPE SECURING $4.68 To Order
Photo Part No Description Price (each) Stock
LR087240 PIPE - FUEL $82.46 To Order
Photo Part No Description Price (each) Stock
LR113243 FUEL PUMP AND FILTER $503.08 To Order
LR124294 FUEL PUMP AND FILTER $662.55 To Order
Photo Part No Description Price (each) Stock
LR087239 BRACKET - FUEL TUBE SUPPORT $15.86 To Order
Photo Part No Description Price (each) Stock
LR082269 PIPE - FUEL $72.53 To Order
Photo Part No Description Price (each) Stock
LR100566 TUBE - FUEL FEED $57.58 To Order
Photo Part No Description Price (each) Stock
LR087238 BRACKET - FUEL TUBE SUPPORT $11.81 To Order
Photo Part No Description Price (each) Stock
LR137955 PUMP $295.70 To Order
Photo Part No Description Price (each) Stock
LR086433 RETAINER - TUBE $6.56 To Order
Photo Part No Description Price (each) Stock
LR087241 PIPE - FUEL $131.21 To Order
Photo Part No Description Price (each) Stock
LR113714 TUBE - FUEL FILTER TO FUEL PUMP $147.77 To Order
Photo Part No Description Price (each) Stock
LR086377 TUBE - FUEL SUPPLY AND VAPOUR $213.50 To Order
Photo Part No Description Price (each) Stock
LR112628 FILTER - FUEL - PRIMARY $238.38 To Order
LR124281 FILTER - FUEL - PRIMARY $270.89 To Order
LR138375 FILTER - FUEL - PRIMARY $222.07 To Order
Photo Part No Description Price (each) Stock
LR081530 GROMMET - FUEL FILTER $11.05 To Order
Photo Part No Description Price (each) Stock
MTC7458 PAD - FOAM $35.65 To Order
Photo Part No Description Price (each) Stock
LR082765 TUBE - FUEL $38.49 To Order
Photo Part No Description Price (each) Stock
LR101809 PIPE - FUEL $91.15 To Order
Photo Part No Description Price (each) Stock
LR082761 PIPE - FUEL $223.86 To Order
Photo Part No Description Price (each) Stock
LR118214 PIPE - FUEL $286.50 To Order
Photo Part No Description Price (each) Stock
LR044464 PAD - FOAM $29.44 To Order
View All

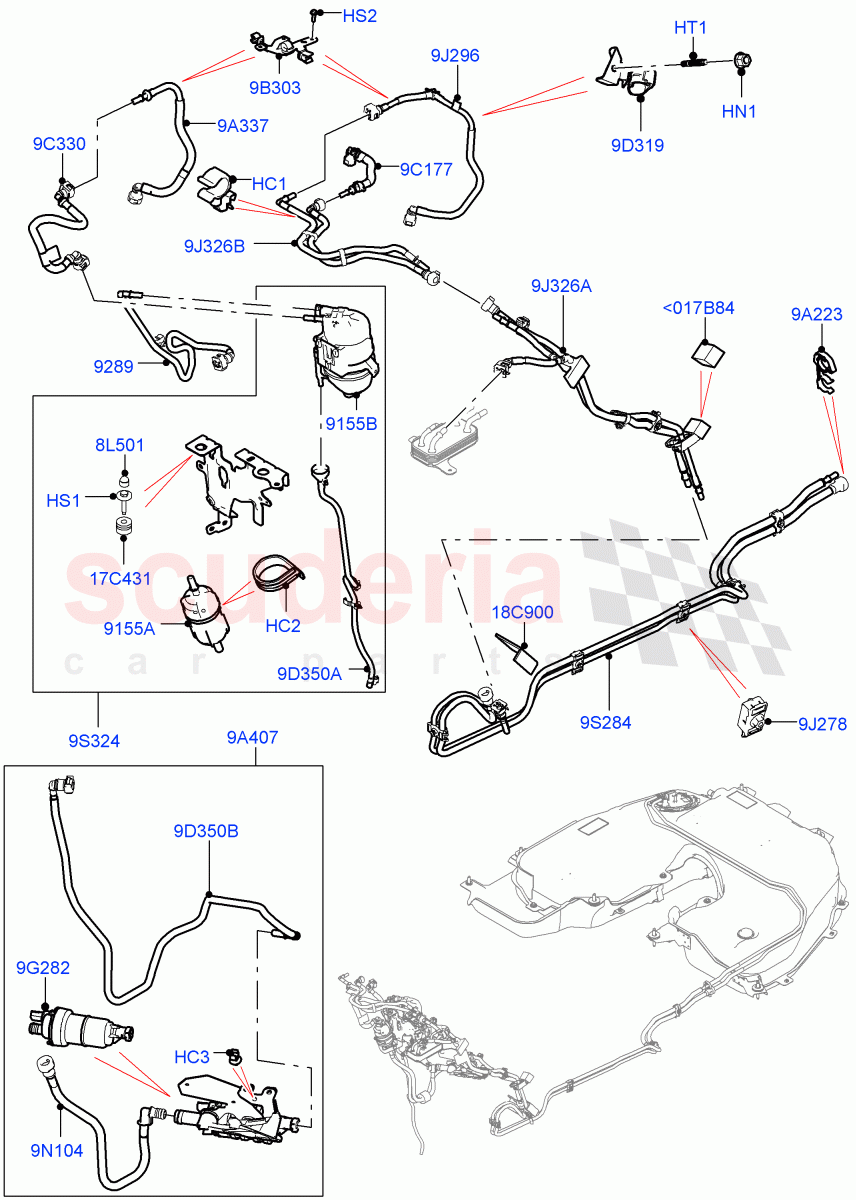

Fuel Lines (Nitra Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, Fuel Tank-Diesel With Filters) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<017B84 LR044464
PAD - FOAM
From: K2000001 		$29.44 1
HC1 LR049397
CLIP - SPECIAL
11 - 13 x 1.0 - 3.5 / From: K2000001 		$2.71 1
HC2 LR105597
CLIP
From: K2000001 / To: L2005330 		$5.94 1
HC2 LR138371
CLIP
From: L2005331 		$16.29 1
HC3 LR004596
CLIP
12 x 7.8X.8/4, Plastic / From: K2000001 		$1.69 1
HN1 LR087242
NUT - HEX.
M6 / From: K2000001 		$1.47 1
HS1 RYG500900
SCREW
Bolt And Washer, Hexagonal Head, M6X30 / From: K2000001 		$4.21 2
HS2 LR071774
SCREW
Hexagonal Head, M6 X 20MM / From: K2000001 		$2.31 2
HT1 LR052757
STUD
M6 X 25 / M6 X 15 / From: K2000001 		$2.29 1
8L501 LR032034
CAP - PROTECTIVE
Protective / From: K2000001 		$1.56 1
9A223 LR040125
CLIP - FUEL PIPE SECURING
From: K2000001 		$4.68 1
9A337 LR087240
PIPE - FUEL
From Fuel Filter To Fuel Pump / From: K2000001 		$82.46 1
9A407 LR113243
FUEL PUMP AND FILTER
Assembly / From: K2000001 / To: K2402669 		$503.08 1
9A407 LR124294
FUEL PUMP AND FILTER
Assembly / From: K2402670 		$662.55 1
9B303 LR087239
BRACKET - FUEL TUBE SUPPORT
From: K2000001 		$15.86 1
9C177 LR082269
PIPE - FUEL
From: K2000001 		$72.53 1
9C330 LR100566
TUBE - FUEL FEED
Front, Single / From: K2000001 		$57.58 1
9D319 LR087238
BRACKET - FUEL TUBE SUPPORT
From: K2000001 		$11.81 1
9D350A LR082765
TUBE - FUEL
Drain / From: K2000001 		$38.49 1
9D350B LR101809
PIPE - FUEL
From: K2000001 		$91.15 1
9G282 LR137955
PUMP
From: K2000001 		$295.70 1
9J278 LR086433
RETAINER - TUBE
From: K2000001 		$6.56 5
9J296 LR087241
PIPE - FUEL
From: K2000001 		$131.21 1
9J326A LR082761
PIPE - FUEL
Centre / From: K2000001 		$223.86 1
9J326B LR118214
PIPE - FUEL
Double, Front / From: K2000001 		$286.50 1
9N104 LR113714
TUBE - FUEL FILTER TO FUEL PUMP
From: K2000001 		$147.77 1
9S284 LR086377
TUBE - FUEL SUPPLY AND VAPOUR
Rear / From: K2000001 		$213.50 1
9S324 LR112628
FILTER - FUEL - PRIMARY
Assembly / From: K2000001 / To: L2001695 		$238.38 1
9S324 LR124281
FILTER - FUEL - PRIMARY
Assembly / From: L2001696 / To: L2005330 		$270.89 1
9S324 LR138375
FILTER - FUEL - PRIMARY
Assembly / From: L2005331 		$222.07 1
17C431 LR081530
GROMMET - FUEL FILTER
Rear / From: K2000001 		$11.05 2
18C900 MTC7458
PAD - FOAM
From: K2000001 		$35.65 2
9155A LR101802
FILTER - FUEL
From: K2000001 		$99.60 1
9155B LR103234
FILTER - FUEL - PRIMARY
With Bracket / From: K2000001 		$86.23 1
9289 LR082756
TUBE - FUEL
Fuel Cooler To Filter Tube / From: K2000001 		$58.50 1
