Name: Fuel Lines (Nitra Plant Build, Front) (2.0L I4 DSL MID DOHC AJ200, 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMK2000001)
Rating: 5.0 (1 reviews)

Fuel Lines (Nitra Plant Build, Front) (2.0L I4 DSL MID DOHC AJ200, 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel]

View All

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] - Fuel Lines (Nitra Plant Build, Front) (2.0L I4 DSL MID DOHC AJ200, 2.0L I4 DSL HIGH DOHC AJ200)...

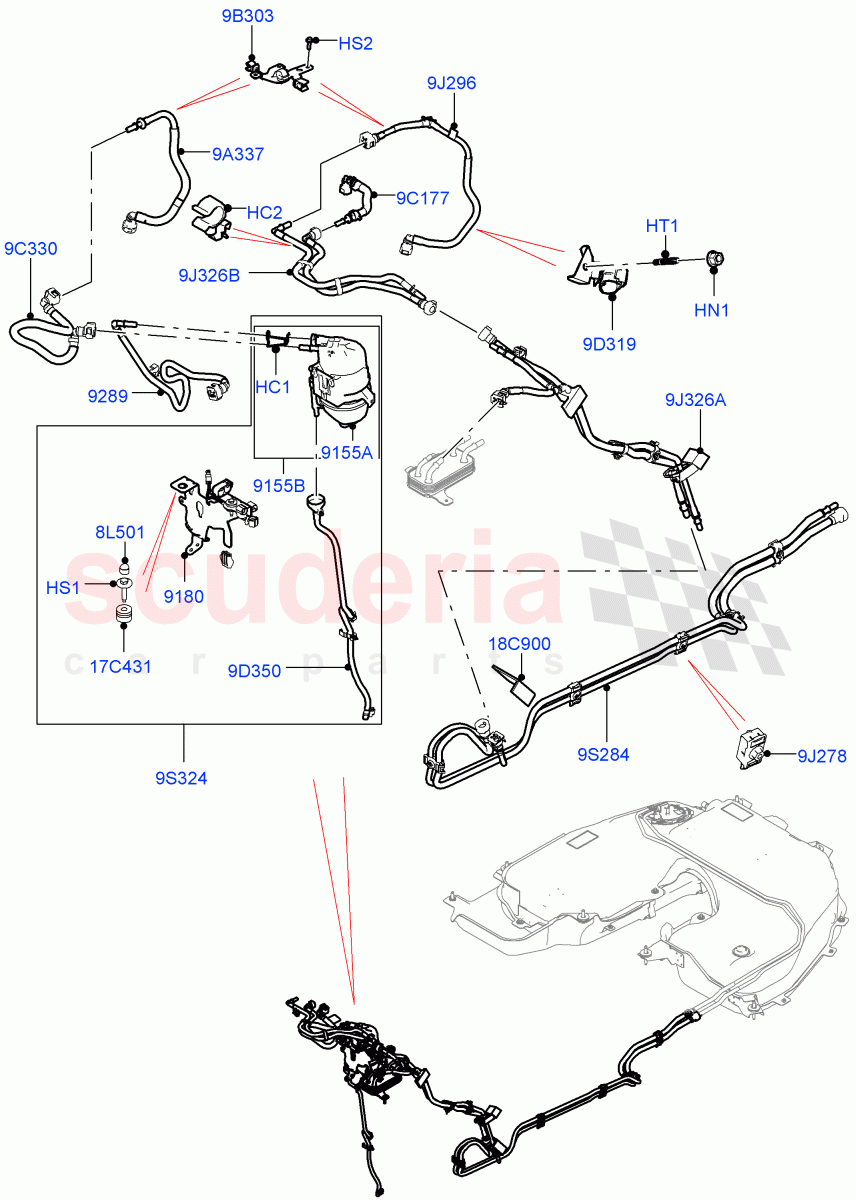

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR093522	CLIP - SPECIAL	$9.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049397	CLIP - SPECIAL	$2.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087242	NUT - HEX.	$1.46	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052757	STUD	$2.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082754	BRACKET	$51.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082756	TUBE - FUEL	$58.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032034	CAP - PROTECTIVE	$1.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR103234	FILTER - FUEL - PRIMARY	$86.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094156	KIT - FUEL FILTER ELEMENT	$99.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087240	PIPE - FUEL	$82.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087239	BRACKET - FUEL TUBE SUPPORT	$15.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082269	PIPE - FUEL	$72.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082758	TUBE - FUEL FEED	$136.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087238	BRACKET - FUEL TUBE SUPPORT	$11.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082765	TUBE - FUEL	$38.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086433	RETAINER - TUBE	$6.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087241	PIPE - FUEL	$130.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086377	TUBE - FUEL SUPPLY AND VAPOUR	$213.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113370	FILTER - FUEL - PRIMARY	$300.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081530	GROMMET - FUEL FILTER	$11.02	To Order

Photo	Part No	Description	Price (each)	Stock
	MTC7458	PAD - FOAM	$35.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082761	PIPE - FUEL	$223.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR097166	PIPE - FUEL	$170.22	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR093522	CLIP - SPECIAL	LR093522 CLIP - SPECIAL From: K2000001	$9.44	1
HC2	LR049397	CLIP - SPECIAL	LR049397 CLIP - SPECIAL 11 - 13 x 1.0 - 3.5 / From: K2000001	$2.70	1
HN1	LR087242	NUT - HEX.	LR087242 NUT - HEX. M6 / From: K2000001	$1.46	1
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30 / From: K2000001	$4.20	2
HS2	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM / From: K2000001	$2.30	2
HT1	LR052757	STUD	LR052757 STUD M6 X 25 / M6 X 15 / From: K2000001	$2.29	1
8L501	LR032034	CAP - PROTECTIVE	LR032034 CAP - PROTECTIVE Protective / From: K2000001	$1.56	1
9A337	LR087240	PIPE - FUEL	LR087240 PIPE - FUEL From Fuel Filter To Fuel Pump / From: K2000001	$82.27	1
9B303	LR087239	BRACKET - FUEL TUBE SUPPORT	LR087239 BRACKET - FUEL TUBE SUPPORT From: K2000001	$15.82	1
9C177	LR082269	PIPE - FUEL	LR082269 PIPE - FUEL From: K2000001	$72.36	1
9C330	LR082758	TUBE - FUEL FEED	LR082758 TUBE - FUEL FEED Front, Single / From: K2000001	$136.93	1
9D319	LR087238	BRACKET - FUEL TUBE SUPPORT	LR087238 BRACKET - FUEL TUBE SUPPORT From: K2000001	$11.78	1
9D350	LR082765	TUBE - FUEL	LR082765 TUBE - FUEL Drain / From: K2000001	$38.40	1
9J278	LR086433	RETAINER - TUBE	LR086433 RETAINER - TUBE From: K2000001	$6.54	5
9J296	LR087241	PIPE - FUEL	LR087241 PIPE - FUEL From: K2000001	$130.90	1
9J326A	LR082761	PIPE - FUEL	LR082761 PIPE - FUEL Centre / From: K2000001	$223.33	1
9J326B	LR097166	PIPE - FUEL	LR097166 PIPE - FUEL Double, Front / From: K2000001	$170.22	1
9S284	LR086377	TUBE - FUEL SUPPLY AND VAPOUR	LR086377 TUBE - FUEL SUPPLY AND VAPOUR Rear / From: K2000001	$213.00	1
9S324	LR113370	FILTER - FUEL - PRIMARY	LR113370 FILTER - FUEL - PRIMARY From: K2000001	$300.26	1
17C431	LR081530	GROMMET - FUEL FILTER	LR081530 GROMMET - FUEL FILTER Rear / From: K2000001	$11.02	2
18C900	MTC7458	PAD - FOAM	MTC7458 PAD - FOAM From: K2000001	$35.57	2
9155A	LR103234	FILTER - FUEL - PRIMARY	LR103234 FILTER - FUEL - PRIMARY With Bracket / From: K2000001	$86.03	1
9155B	LR094156	KIT - FUEL FILTER ELEMENT	LR094156 KIT - FUEL FILTER ELEMENT With Bracket, With Clip / From: K2000001	$99.36	1
9180	LR082754	BRACKET	LR082754 BRACKET From: K2000001	$51.94	1
9289	LR082756	TUBE - FUEL	LR082756 TUBE - FUEL Fuel Cooler To Filter Tube / From: K2000001	$58.36	1
