Vacuum Control And Air Injection (Solihull Plant Build) (2.0L I4 Dsl Mid Dohc Aj200, Lhd) ((V)...

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] - Vacuum Control And Air Injection (Solihull Plant Build) (2.0L I4 DSL MID DOHC AJ200, LHD) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR049401 CLIP - DOUBLE $2.36 To Order
Photo Part No Description Price (each) Stock
LR073649 SCREW $2.52 To Order
Photo Part No Description Price (each) Stock
LR073666 SCREW $1.43 To Order
Photo Part No Description Price (each) Stock
LR087668 PUMP - OIL & VACUUM $555.96 To Order
LR110501 PUMP - OIL & VACUUM $607.24 To Order
Photo Part No Description Price (each) Stock
LR081604 GROMMET - BRAKE PIPE $5.98 To Order
Photo Part No Description Price (each) Stock
LR082321 HOSE - VACUUM CONTROL HARNESS $87.97 To Order
Photo Part No Description Price (each) Stock
LR081631 SENSOR - VACUUM $89.18 To Order
Photo Part No Description Price (each) Stock
LR087511 HOSE - VACUUM $229.66 To Order
LR099160 HOSE - VACUUM $193.79 To Order
Photo Part No Description Price (each) Stock
LR148195 CONNECTOR - VACUUM TUBE $27.92 To Order
View All

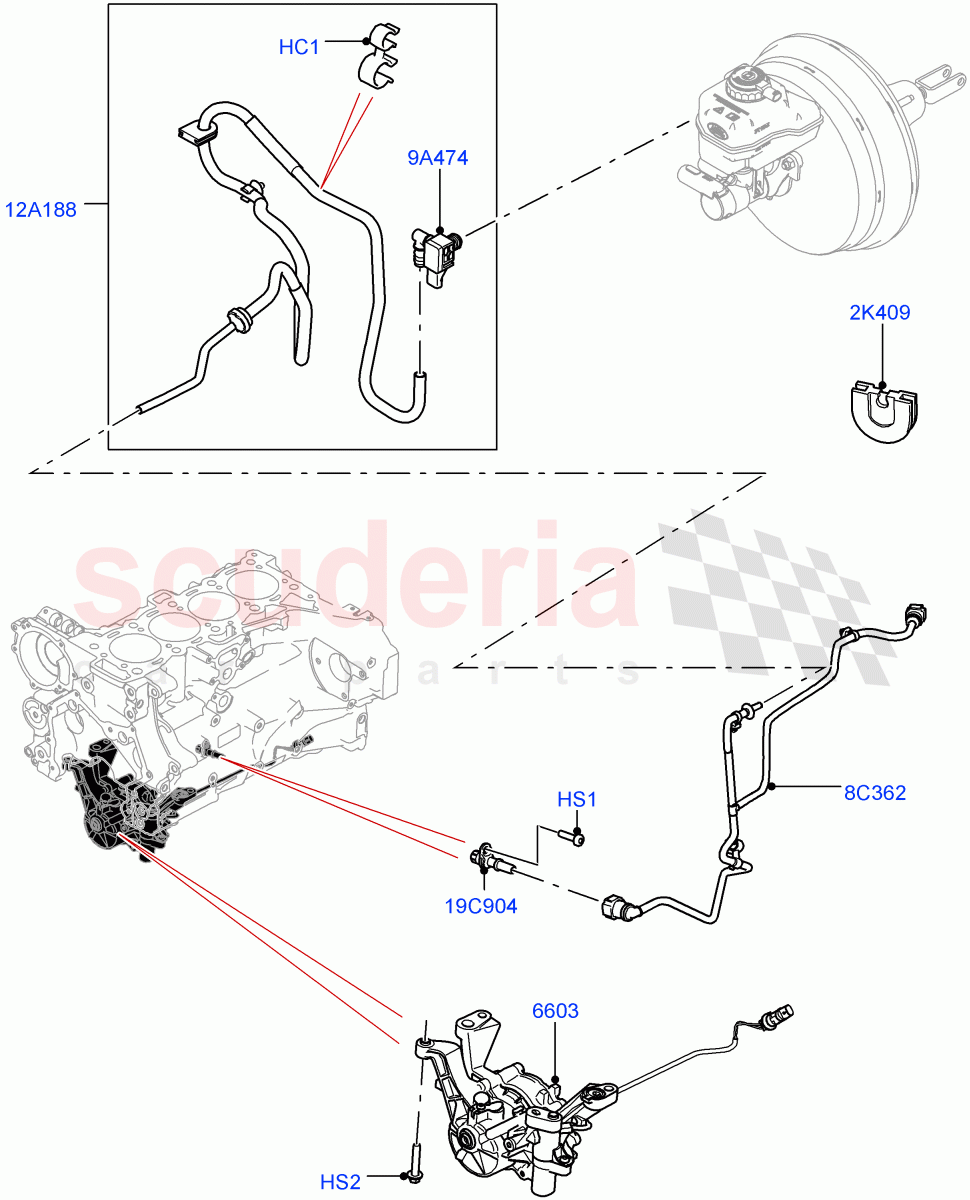

Vacuum Control And Air Injection (Solihull Plant Build) (2.0L I4 DSL MID DOHC AJ200, LHD) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR049401
CLIP - DOUBLE
Double, To Vacuum Hose 		$2.36 1
HS1 LR073649
SCREW
M8 x 40MM, Pump - Vacuum 		$2.52 4
HS2 LR073666
SCREW
M5 x 20MM, Vacuum Connector 		$1.43 1
2K409 LR081604
GROMMET - BRAKE PIPE
Blanking 		$5.98 1
8C362 LR082321
HOSE - VACUUM CONTROL HARNESS
Vacuum Control Harness 		$87.97 1
9A474 LR081631
SENSOR - VACUUM 		$89.18 1
12A188 LR087511
HOSE - VACUUM
To Brake Booster / To: HA999999 		$229.66 1
12A188 LR099160
HOSE - VACUUM
To Brake Booster / From: JA000001 		$193.79 1
19C904 LR148195
CONNECTOR - VACUUM TUBE 		$27.92 1
6603 LR087668
PUMP - OIL & VACUUM
To: JA049645 		$555.96 1
6603 LR110501
PUMP - OIL & VACUUM
From: JA049646 		$607.24 1
