Name: Exhaust Gas Recirculation (LH Side, Solihull Plant Build) (2.0L I4 DSL MID DOHC AJ200, LEV 160, 2.0L I4 DSL HIGH DOHC AJ200, Euro Stage 4 Emissions) ((V) FROMHA000001, (V) TOJA999999)
Rating: 4.4 (1 reviews)

Exhaust Gas Recirculation (LH Side, Solihull Plant Build) (2.0L I4 DSL MID DOHC AJ200, LEV 160, 2.0L I4 DSL HIGH DOHC AJ200, Euro Stage 4 Emissions) ((V) FROMHA000001, (V) TOJA999999) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel]

View All

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] - Exhaust Gas Recirculation (LH Side, Solihull Plant Build) (2.0L I4 DSL MID DOHC AJ200, LEV 160,...

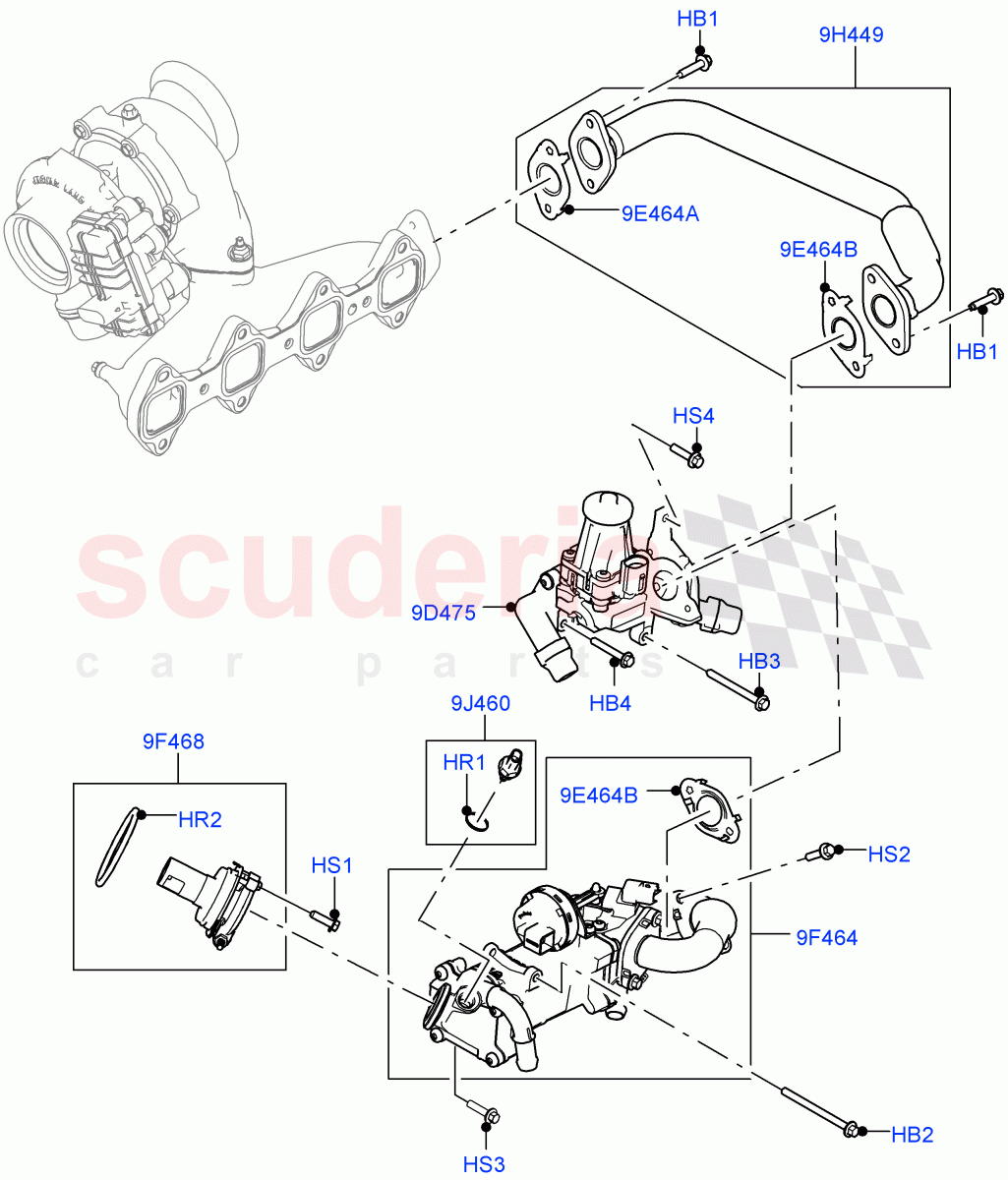

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073739	BOLT	$1.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091635	BOLT	$2.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082322	SCREW	$2.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079931	SCREW	$5.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095785	O-RING	$5.13	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR083963	O-RING	$10.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	$1.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101686	SCREW	$2.47	To Order
	LR116270	SCREW	$2.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR110290	VALVE - EXHAUST GAS RECIRCULATION	$491.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091626	COOLER - EGR	$508.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR111575	TUBE - EXHAUST GAS RECIRCULATION	$86.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR111572	TUBE - EXHAUST GAS RECIRCULATION	$132.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075629	SENSOR - TEMPERATURE	$48.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095556	GASKET - EGR OUTLET	$12.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082314	GASKET - EXHAUST MANIFOLD	$12.77	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR073739	BOLT	LR073739 BOLT M6 X 25MM / From: JA000001 / To: JA999999	$1.35	4
HB2	LR091635	BOLT	LR091635 BOLT M6 x 80MM / From: JA000001 / To: JA999999	$2.97	1
HB3	LR082322	SCREW	LR082322 SCREW M6 X 115 / From: JA000001 / To: JA999999	$2.05	1
HB4	LR079931	SCREW	LR079931 SCREW M6 X 40MM, Stud / From: JA000001 / To: JA999999	$5.33	1
HR1	LR095785	O-RING IN STOCK	LR095785 O-RING 11.3 x 2.5MM, Sensor / From: JA000001 / To: JA999999 IN STOCK	$5.13	1
HR2	LR083963	O-RING	LR083963 O-RING EGR Valve To Inlet Manifold / From: JA000001 / To: JA999999	$10.42	1
HS1	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM / From: JA000001 / To: JA999999	$2.31	2
HS2	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM / From: JA000001 / To: JA999999	$1.35	2
HS3	LR101686	SCREW	LR101686 SCREW M6 X 25MM / From: JA000001 / To: JA057902	$2.47	2
HS3	LR116270	SCREW	LR116270 SCREW M6 X 25MM / From: JA057903 / To: JA999999	$2.52	2
HS4	LR073655	SCREW IN STOCK	LR073655 SCREW Hexagonal Head, M6 X 20MM / From: JA000001 / To: JA999999 IN STOCK	$1.60	1
9D475	LR110290	VALVE - EXHAUST GAS RECIRCULATION	LR110290 VALVE - EXHAUST GAS RECIRCULATION With Cooler / From: JA000001 / To: JA999999	$491.92	1
9E464A	LR095556	GASKET - EGR OUTLET	LR095556 GASKET - EGR OUTLET RH, Pipe - Exhaust Crossover / From: JA000001 / To: JA999999	$12.77	1
9E464B	LR082314	GASKET - EXHAUST MANIFOLD	LR082314 GASKET - EXHAUST MANIFOLD LH, Pipe - Exhaust Crossover / From: JA000001 / To: JA999999	$12.77	1
9F464	LR091626	COOLER - EGR	LR091626 COOLER - EGR Superseded To New Cooler Design Complete With Tube LR111575, Which Will Need To Be Removed For Older Cars / From: JA000001 / To: JA999999	$508.45	1
9F468	LR111575	TUBE - EXHAUST GAS RECIRCULATION	LR111575 TUBE - EXHAUST GAS RECIRCULATION From: JA000001 / To: JA999999	$86.64	1
9H449	LR111572	TUBE - EXHAUST GAS RECIRCULATION	LR111572 TUBE - EXHAUST GAS RECIRCULATION Pipe - Exhaust Crossover / From: JA000001 / To: JA999999	$132.33	1
9J460	LR075629	SENSOR - TEMPERATURE	LR075629 SENSOR - TEMPERATURE Temperature / From: JA000001 / To: JA999999	$48.15	1
