Side Trim (Luggage Compartment) (Changsu (China), 60/40 Load Through With Slide, Climate Control - Chiller Unit, Less Chiller Unit) ((V) FROMFG000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Side Trim (Luggage Compartment) (Changsu (China), 60/40 Load Through With Slide, Climate Control -...

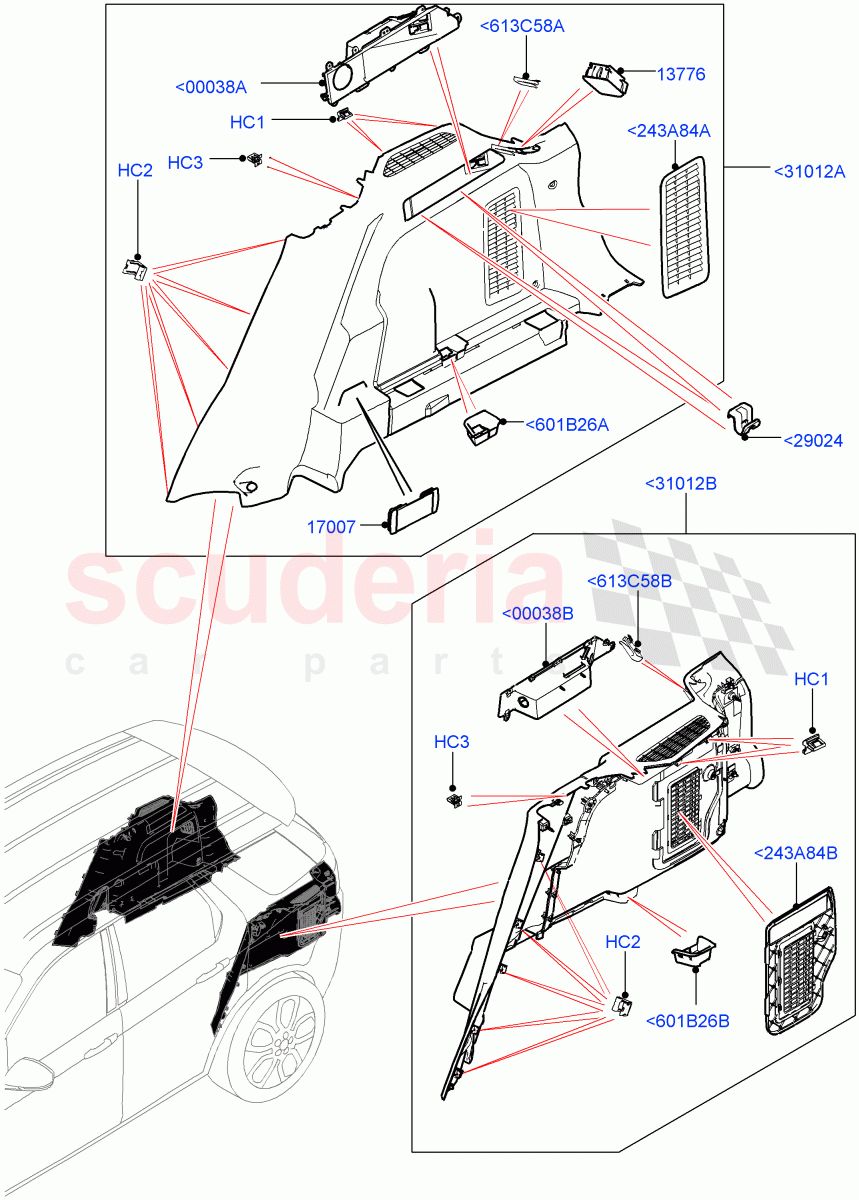

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR036129	CLIP - TRIM	$0.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031782	CLIP - TRIM	$1.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038293	CLIP - CENTRE CONSOLE	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034050	LAMP - INTERIOR	$41.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133851	STRAP - RETENSION	$46.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066322	HOOK - LOADING COMPARTMENT	$8.99	To Order
	LR066324	HOOK - LOADING COMPARTMENT	$8.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074784	POCKET - LOAD COMPARTMENT	$29.40	To Order
	LR074785	POCKET - LOAD COMPARTMENT	$29.40	To Order
	LR074783	POCKET - LOAD COMPARTMENT	$29.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074790	POCKET - LOAD COMPARTMENT	$37.79	To Order
	LR074791	POCKET - LOAD COMPARTMENT	$37.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR076957	TRIM - LOAD COMPARTMENT - SIDE	$855.38	To Order
	LR076958	TRIM - LOAD COMPARTMENT - SIDE	$786.65	To Order
	LR076959	TRIM - LOAD COMPARTMENT - SIDE	$822.96	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR076980	TRIM - LOAD COMPARTMENT - SIDE	$853.53	To Order
	LR076981	TRIM - LOAD COMPARTMENT - SIDE	$662.35	To Order
	LR076978	TRIM - LOAD COMPARTMENT - SIDE	$821.15	To Order

...and 8 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR062343	COVER - VENT AIR	$23.24	To Order
	LR062344	COVER - VENT AIR	$23.24	To Order
	LR062339	COVER - VENT AIR	$16.89	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR074788	COVER - VENT AIR	$46.26	To Order
	LR074789	COVER - VENT AIR	$48.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075122	COVER - SEAT BELT MOUNTING	$12.62	To Order
	LR075123	COVER - SEAT BELT MOUNTING	$12.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075124	COVER - SEAT BELT MOUNTING	$12.62	To Order
	LR075125	COVER - SEAT BELT MOUNTING	$12.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075128	CLIP - SEAT BELT STOWAGE	$9.87	To Order
	LR075129	CLIP - SEAT BELT STOWAGE	$9.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075126	CLIP - SEAT BELT STOWAGE	$9.87	To Order
	LR075127	CLIP - SEAT BELT STOWAGE	$9.87	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<243A84A	LR062343	COVER - VENT AIR	LR062343 COVER - VENT AIR Climate Control - Chiller Unit, I/P Facia Contrast - Cirrus/Lunar / From: FG000001	$23.24	1
<243A84A	LR062344	COVER - VENT AIR	LR062344 COVER - VENT AIR Climate Control - Chiller Unit, I/P Facia Contrast - Ebony/Ivory / From: FG000001	$23.24	1
<243A84A	LR062339	COVER - VENT AIR	LR062339 COVER - VENT AIR I/P Facia Contrast - Lunar/Glacia, Less Chiller Unit / From: FG000001	$16.89	1
<243A84A	LR062340	COVER - VENT AIR	LR062340 COVER - VENT AIR I/P Facia Cntr-Ebony Black/Almond, Less Chiller Unit / From: FG000001	$17.54	1
<243A84B	LR074788	COVER - VENT AIR	LR074788 COVER - VENT AIR I/P Facia Contrast - Lunar/Glacia / From: FG000001	$46.26	1
<243A84B	LR074789	COVER - VENT AIR	LR074789 COVER - VENT AIR I/P Facia Contrast - Ebony/Ivory / From: FG000001	$48.32	1
<601B26A	LR075122	COVER - SEAT BELT MOUNTING	LR075122 COVER - SEAT BELT MOUNTING I/P Facia Contrast - Lunar/Glacia / RH / From: FG000001	$12.62	1
<601B26A	LR075123	COVER - SEAT BELT MOUNTING	LR075123 COVER - SEAT BELT MOUNTING I/P Facia Contrast - Ebony/Ivory / RH / From: FG000001	$12.62	1
<601B26B	LR075124	COVER - SEAT BELT MOUNTING	LR075124 COVER - SEAT BELT MOUNTING I/P Facia Contrast - Lunar/Glacia / LH / From: FG000001	$12.62	1
<601B26B	LR075125	COVER - SEAT BELT MOUNTING	LR075125 COVER - SEAT BELT MOUNTING I/P Facia Contrast - Ebony/Ivory / LH / From: FG000001	$12.62	1
<613C58A	LR075128	CLIP - SEAT BELT STOWAGE	LR075128 CLIP - SEAT BELT STOWAGE I/P Facia Contrast - Lunar/Glacia / RH / From: FG000001	$9.87	1
<613C58A	LR075129	CLIP - SEAT BELT STOWAGE	LR075129 CLIP - SEAT BELT STOWAGE I/P Facia Contrast - Ebony/Ivory / RH / From: FG000001	$9.87	1
<613C58B	LR075126	CLIP - SEAT BELT STOWAGE	LR075126 CLIP - SEAT BELT STOWAGE I/P Facia Contrast - Lunar/Glacia / LH / From: FG000001	$9.87	1
<613C58B	LR075127	CLIP - SEAT BELT STOWAGE	LR075127 CLIP - SEAT BELT STOWAGE I/P Facia Contrast - Ebony/Ivory / LH / From: FG000001	$9.87	1
<00038A	LR074784	POCKET - LOAD COMPARTMENT	LR074784 POCKET - LOAD COMPARTMENT Climate Control - Chiller Unit, I/P Facia Contrast - Cirrus/Lunar / RH / From: FG000001	$29.40	1
<00038A	LR074785	POCKET - LOAD COMPARTMENT	LR074785 POCKET - LOAD COMPARTMENT Climate Control - Chiller Unit, I/P Facia Cntr-Ebony Black/Almond / RH / From: FG000001	$29.40	1
<00038A	LR074783	POCKET - LOAD COMPARTMENT	LR074783 POCKET - LOAD COMPARTMENT I/P Facia Cntr-Ebony Black/Almond, Less Chiller Unit, Less Power Point Plug / RH / From: FG000001	$29.40	1
<00038B	LR074790	POCKET - LOAD COMPARTMENT	LR074790 POCKET - LOAD COMPARTMENT I/P Facia Contrast - Lunar/Glacia / LH / From: FG000001	$37.79	1
<00038B	LR074791	POCKET - LOAD COMPARTMENT	LR074791 POCKET - LOAD COMPARTMENT I/P Facia Contrast - Ebony/Ivory / LH / From: FG000001	$37.79	1
<29024	LR066322	HOOK - LOADING COMPARTMENT	LR066322 HOOK - LOADING COMPARTMENT I/P Facia Contrast - Lunar/Glacia / RH/LH / From: FG000001	$8.99	4
<29024	LR066324	HOOK - LOADING COMPARTMENT	LR066324 HOOK - LOADING COMPARTMENT I/P Facia Contrast - Ebony/Ivory / RH/LH / From: FG000001	$8.99	4
<31012A	LR076957	TRIM - LOAD COMPARTMENT - SIDE	LR076957 TRIM - LOAD COMPARTMENT - SIDE Climate Control - Chiller Unit, I/P Facia Contrast - Cirrus/Lunar, With Ambient Lighting-Interior / RH / From: FG000001 / To: KG446856	$855.38	1
<31012A	LR076958	TRIM - LOAD COMPARTMENT - SIDE	LR076958 TRIM - LOAD COMPARTMENT - SIDE Ambient Lighting-High Line Interior, Climate Control - Chiller Unit, I/P Facia Contrast - Ebony Black / RH / From: FG000001 / To: KG446856	$786.65	1
<31012A	LR076959	TRIM - LOAD COMPARTMENT - SIDE	LR076959 TRIM - LOAD COMPARTMENT - SIDE Configurable Ambient Lighting, I/P Facia Contrast - Lunar/Glacia / RH / From: FG000001 / To: KG446856	$822.96	1
<31012A	LR076961	TRIM - LOAD COMPARTMENT - SIDE	LR076961 TRIM - LOAD COMPARTMENT - SIDE Climate Control - Chiller Unit, Configurable Ambient Lighting, I/P Facia Contrast - Ebony Black / RH / From: FG000001 / To: KG446856	$756.82	1
<31012A	LR127226	TRIM - QUARTER	LR127226 TRIM - QUARTER Climate Control - Chiller Unit / RH / From: KG446857	$574.61	1
<31012A	LR127219	TRIM - QUARTER	LR127219 TRIM - QUARTER Less Chiller Unit / RH / From: KG446857	$512.67	1
<31012B	LR076980	TRIM - LOAD COMPARTMENT - SIDE	LR076980 TRIM - LOAD COMPARTMENT - SIDE Configurable Ambient Lighting, I/P Facia Contrast - Cirrus/Lunar / LH / From: FG000001 / To: HG347883	$853.53	1
<31012B	LR076981	TRIM - LOAD COMPARTMENT - SIDE	LR076981 TRIM - LOAD COMPARTMENT - SIDE Configurable Ambient Lighting, I/P Facia Contrast - Ebony/Ivory / LH / From: FG000001 / To: HG347883	$662.35	1
<31012B	LR076978	TRIM - LOAD COMPARTMENT - SIDE	LR076978 TRIM - LOAD COMPARTMENT - SIDE Ambient Lighting-High Line Interior, I/P Facia Contrast - Cirrus/Lunar, USB Power Socket Row 3, With Power Point Plug - Rear / LH / From: FG000001 / To: HG347883	$821.15	1
<31012B	LR076979	TRIM - LOAD COMPARTMENT - SIDE	LR076979 TRIM - LOAD COMPARTMENT - SIDE Ambient Lighting-High Line Interior, I/P Facia Contrast - Ebony Black, USB Power Socket Row 3, With Power Point Plug - Rear / LH / From: FG000001 / To: HG347883	$483.98	1
<31012B	LR083724	TRIM - LOAD COMPARTMENT - SIDE	LR083724 TRIM - LOAD COMPARTMENT - SIDE I/P Facia Contrast - Lunar/Glacia, With Ambient Lighting-Interior, With Power Point Plug - Rear / LH / From: HG347884 / To: KG446856	$772.71	1
<31012B	LR083723	TRIM - LOAD COMPARTMENT - SIDE	LR083723 TRIM - LOAD COMPARTMENT - SIDE Ambient Lighting-High Line Interior, I/P Facia Contrast - Ebony/Ivory, With Power Point Plug - Rear / LH / From: HG347884 / To: KG446856	$682.52	1
<31012B	LR083726	TRIM - LOAD COMPARTMENT - SIDE	LR083726 TRIM - LOAD COMPARTMENT - SIDE Configurable Ambient Lighting, I/P Facia Contrast - Lunar/Glacia, With Power Point Plug - Rear / LH / From: HG347884 / To: KG446856	$772.71	1
<31012B	LR083725	TRIM - LOAD COMPARTMENT - SIDE	LR083725 TRIM - LOAD COMPARTMENT - SIDE Configurable Ambient Lighting, I/P Facia Contrast - Ebony Black, With Power Point Plug - Rear / LH / From: HG347884 / To: KG446856	$696.20	1
<31012B	LR083739	TRIM - LOAD COMPARTMENT - SIDE	LR083739 TRIM - LOAD COMPARTMENT - SIDE I/P Facia Contrast - Lunar/Glacia, Less Power Point Plug, Less Power Point Plug - Rear, Less Power Point Plug-Luggage / LH / From: HG347884 / To: KG446856	$616.88	1
<31012B	LR083738	TRIM - LOAD COMPARTMENT - SIDE	LR083738 TRIM - LOAD COMPARTMENT - SIDE I/P Facia Contrast - Ebony Black, Less Power Point Plug, Less Power Point Plug - Rear, Less Power Point Plug-Luggage / LH / From: HG347884 / To: KG446856	$555.81	1
<31012B	LR127236	TRIM - QUARTER	LR127236 TRIM - QUARTER Less Trailer Towing Hitch, Power Pack 2(Row2,Row3 USB) / LH / From: KG446857	$479.26	1
HC1	LR036129	CLIP - TRIM	LR036129 CLIP - TRIM Clip 0.8 + 18.4 X 4.5 X 1.25 Push In Steel / From: FG000001	$0.97	4
HC2	LR031782	CLIP - TRIM	LR031782 CLIP - TRIM 0.8-1.4 / From: FG000001	$1.64	10
HC3	LR038293	CLIP - CENTRE CONSOLE	LR038293 CLIP - CENTRE CONSOLE 1.35 X 6 X 22 X 0.7 - 1.2 / From: FG000001	$1.10	2
13776	LR034050	LAMP - INTERIOR	LR034050 LAMP - INTERIOR Lamp - Ambient Lighting / From: FG000001	$41.86	1
17007	LR133851	STRAP - RETENSION	LR133851 STRAP - RETENSION RH/LH / From: KG446857	$46.60	1
