Name: Load Compartment Trim (Floor) (Halewood (UK))
Rating: 4.4 (1 reviews)

Load Compartment Trim (Floor) (Halewood (UK)) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Load Compartment Trim (Floor) (Halewood (UK))

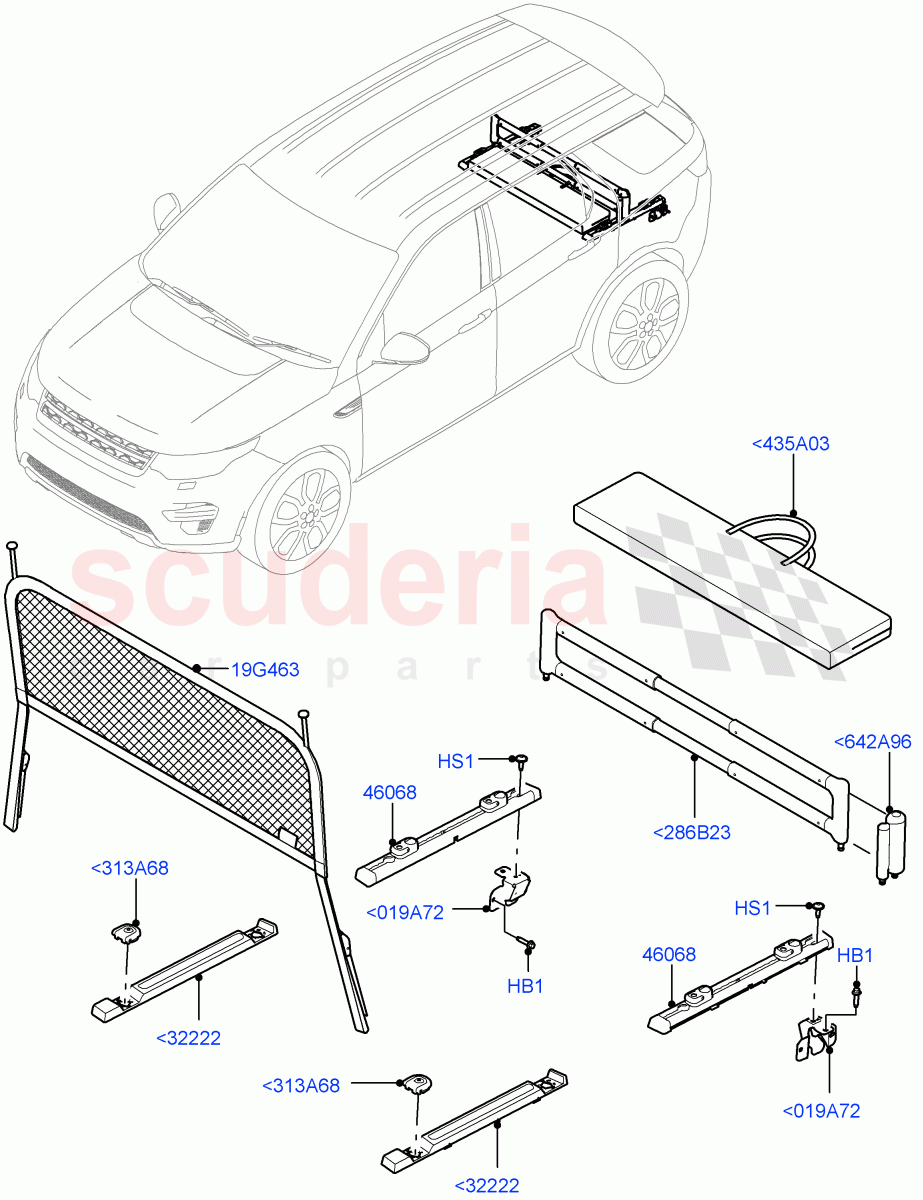

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000300	BOLT	$6.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028301	SCREW	$1.24	To Order
	LR028301	SCREW	$1.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060512	LUGGAGE RAILS	$233.20	To Order
	LR060513	LUGGAGE RAILS	$233.20	To Order
	LR076175	LUGGAGE RAILS	$204.29	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR060502	RAIL - LUGGAGE COMPARTMENT - INSERT	$173.98	To Order
	LR060507	RAIL - LUGGAGE COMPARTMENT - INSERT	$173.98	To Order
	LR060506	RAIL - LUGGAGE COMPARTMENT - INSERT	$173.98	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR127265	PARTITION - NET TYPE	$64.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060508	BRACKET - LUGGAGE RAILS SUPPORT	$29.41	To Order
	LR060509	BRACKET - LUGGAGE RAILS SUPPORT	$24.64	To Order
	LR161938	BRACKET - LUGGAGE RAILS SUPPORT	$24.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038146	SUPPORT - LUGGAGE NET	$327.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031907	HOOK-LUGGAGE COMPARTMENT-TIE DOWN	$30.07	To Order
	LR071806	HOOK-LUGGAGE COMPARTMENT-TIE DOWN	$65.04	To Order
	LR088865	HOOK-LUGGAGE COMPARTMENT-TIE DOWN	$52.55	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR038144	BAG - LUGGAGE HOLD DOWN	$177.10	To Order
	LR095903	BAG - LUGGAGE HOLD DOWN	$177.10	To Order
	LR095903	BAG - LUGGAGE HOLD DOWN	$177.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038145	STRAP - LUGGAGE HOLD DOWN	$183.57	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<019A72	LR060508	BRACKET - LUGGAGE RAILS SUPPORT	LR060508 BRACKET - LUGGAGE RAILS SUPPORT RH	$29.41	1
<019A72	LR060509	BRACKET - LUGGAGE RAILS SUPPORT	LR060509 BRACKET - LUGGAGE RAILS SUPPORT LH / To: NH911590	$24.64	1
<019A72	LR161938	BRACKET - LUGGAGE RAILS SUPPORT	LR161938 BRACKET - LUGGAGE RAILS SUPPORT LH / From: NH911591	$24.08	1
<286B23	LR038146	SUPPORT - LUGGAGE NET	LR038146 SUPPORT - LUGGAGE NET Luggage Hold Down	$327.00	1
<313A68	LR031907	HOOK-LUGGAGE COMPARTMENT-TIE DOWN	LR031907 HOOK-LUGGAGE COMPARTMENT-TIE DOWN Less Load Retainer Luggage, With Load Space Tie Down Loop / To: FH543611	$30.07	4
<313A68	LR071806	HOOK-LUGGAGE COMPARTMENT-TIE DOWN	LR071806 HOOK-LUGGAGE COMPARTMENT-TIE DOWN Less Load Retainer Luggage / From: FH543612 / To: HH655199	$65.04	4
<313A68	LR088865	HOOK-LUGGAGE COMPARTMENT-TIE DOWN	LR088865 HOOK-LUGGAGE COMPARTMENT-TIE DOWN Less Load Retainer Luggage / From: HH655262 / To: MH999999	$52.55	4
<313A68	LR084370	HOOK-LUGGAGE COMPARTMENT-TIE DOWN	LR084370 HOOK-LUGGAGE COMPARTMENT-TIE DOWN Less Load Retainer Luggage / From: HH655200 / To: HH655261	$56.14	4
<313A68	LR088865	HOOK-LUGGAGE COMPARTMENT-TIE DOWN	LR088865 HOOK-LUGGAGE COMPARTMENT-TIE DOWN From: NH000001	$52.55	4
<435A03	LR038144	BAG - LUGGAGE HOLD DOWN	LR038144 BAG - LUGGAGE HOLD DOWN Luggage Hold Down / To: HH688576	$177.10	1
<435A03	LR095903	BAG - LUGGAGE HOLD DOWN	LR095903 BAG - LUGGAGE HOLD DOWN Luggage Hold Down / From: HH688577 / To: KH999999	$177.10	1
<435A03	LR095903	BAG - LUGGAGE HOLD DOWN	LR095903 BAG - LUGGAGE HOLD DOWN Load Retainer Lugg Rail With Ret Kt / Luggage Hold Down / From: LH000001	$177.10	1
<642A96	LR038145	STRAP - LUGGAGE HOLD DOWN	LR038145 STRAP - LUGGAGE HOLD DOWN Luggage Hold Down	$183.57	1
<32222	LR060502	RAIL - LUGGAGE COMPARTMENT - INSERT	LR060502 RAIL - LUGGAGE COMPARTMENT - INSERT I/P Facia Contrast - Lunar/Glacia, Less Load Retainer Luggage, With Load Space Tie Down Loop / RH / To: KH999999	$173.98	1
<32222	LR060507	RAIL - LUGGAGE COMPARTMENT - INSERT	LR060507 RAIL - LUGGAGE COMPARTMENT - INSERT I/P Facia Contrast - Ebony/Lunar, Less Load Retainer Luggage, With Load Space Tie Down Loop / LH / To: KH999999	$173.98	1
<32222	LR060506	RAIL - LUGGAGE COMPARTMENT - INSERT	LR060506 RAIL - LUGGAGE COMPARTMENT - INSERT I/P Facia Contrast - Cirrus/Lunar, Less Load Retainer Luggage, With Load Space Tie Down Loop / LH / To: KH999999	$173.98	1
<32222	LR060503	RAIL - LUGGAGE COMPARTMENT - INSERT	LR060503 RAIL - LUGGAGE COMPARTMENT - INSERT I/P Facia Cntr-Ebony Black/Almond, Less Load Retainer Luggage, With Load Space Tie Down Loop / RH / To: KH999999	$173.98	1
<32222	LR060507	RAIL - LUGGAGE COMPARTMENT - INSERT	LR060507 RAIL - LUGGAGE COMPARTMENT - INSERT Less Load Retainer Luggage / LH / From: LH000001 / To: MH999999	$173.98	1
<32222	LR060503	RAIL - LUGGAGE COMPARTMENT - INSERT	LR060503 RAIL - LUGGAGE COMPARTMENT - INSERT Less Load Retainer Luggage / RH / From: LH000001 / To: MH999999	$173.98	1
<32222	LR060507	RAIL - LUGGAGE COMPARTMENT - INSERT	LR060507 RAIL - LUGGAGE COMPARTMENT - INSERT LH / From: NH000001	$173.98	1
<32222	LR060503	RAIL - LUGGAGE COMPARTMENT - INSERT	LR060503 RAIL - LUGGAGE COMPARTMENT - INSERT RH / From: NH000001	$173.98	1
HB1	LR000300	BOLT	LR000300 BOLT M8 X 30	$6.52	6
HS1	LR028301	SCREW	LR028301 SCREW Load Retainer Luggage Rails / M8 X 21MM, Pan Head / To: KH999999	$1.24	4
HS1	LR028301	SCREW	LR028301 SCREW Load Retainer Lugg Rail With Ret Kt / M8 X 21MM, Pan Head / From: LH000001	$1.24	4
19G463	LR127265	PARTITION - NET TYPE	LR127265 PARTITION - NET TYPE With Luggage Net / From: LH000001	$64.96	1
46068	LR060512	LUGGAGE RAILS	LR060512 LUGGAGE RAILS Load Retainer Luggage Rails / RH / To: FH508708	$233.20	1
46068	LR060513	LUGGAGE RAILS	LR060513 LUGGAGE RAILS Load Retainer Luggage Rails / LH / To: FH508708	$233.20	1
46068	LR076175	LUGGAGE RAILS	LR076175 LUGGAGE RAILS Load Retainer Luggage Rails / RH / From: FH508709 / To: KH999999	$204.29	1
46068	LR076176	LUGGAGE RAILS	LR076176 LUGGAGE RAILS Load Retainer Luggage Rails / LH / From: FH508709 / To: KH999999	$208.38	1
46068	LR076175	LUGGAGE RAILS	LR076175 LUGGAGE RAILS Load Retainer Lugg Rail With Ret Kt / RH / From: LH000001	$204.29	1
46068	LR076176	LUGGAGE RAILS	LR076176 LUGGAGE RAILS Load Retainer Lugg Rail With Ret Kt / LH / From: LH000001	$208.38	1
