Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Rear Suspension Arms (Halewood (UK))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR060782 BOLT - FLANGED HEX. $6.09 To Order
LR060782 BOLT - FLANGED HEX. $6.09 To Order
LR072613 BOLT - FLANGED HEX. $5.88 IN STOCK
Photo Part No Description Price (each) Stock
LR060781 BOLT - FLANGED HEX. $3.70 To Order
LR139259 BOLT - FLANGED HEX. $11.28 To Order
Photo Part No Description Price (each) Stock
LR065396 BOLT - FLANGED HEX. $3.94 To Order
Photo Part No Description Price (each) Stock
LR065710 BOLT $15.35 To Order
Photo Part No Description Price (each) Stock
LR033244 NUT $2.99 To Order
LR033244 NUT $2.99 To Order
Photo Part No Description Price (each) Stock
FY110056 NUT $4.29 IN STOCK
Photo Part No Description Price (each) Stock
FY114056 NUT - HEX. $1.26 IN STOCK
Photo Part No Description Price (each) Stock
LR090533 NUT - FLAG TYPE $12.09 To Order
Photo Part No Description Price (each) Stock
LR090556 SCREW $0.99 To Order
Photo Part No Description Price (each) Stock
LR140095 NUT - FLAG TYPE $4.09 To Order
LR145207 NUT - FLAG TYPE $3.78 To Order
Photo Part No Description Price (each) Stock
LR060780 WASHER - ADJUSTING $5.42 To Order
Photo Part No Description Price (each) Stock
LR068229 COVER - SUSPENSION ARM $27.39 To Order
Photo Part No Description Price (each) Stock
LR060768 ARM - REAR SUSPENSION $227.53 To Order
LR060763 ARM - REAR SUSPENSION $227.53 To Order
LR073525 ARM - REAR SUSPENSION $198.93 To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR060775 ARM - REAR SUSPENSION $401.96 To Order
LR060774 ARM - REAR SUSPENSION $389.03 To Order
LR076679 ARM - REAR SUSPENSION $541.31 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR068167 ARM - REAR SUSPENSION $237.71 To Order
LR068166 ARM - REAR SUSPENSION $201.50 To Order
LR113740 ARM - REAR SUSPENSION $171.94 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR060773 LINK - SUSPENSION ARM $13.11 To Order
View All

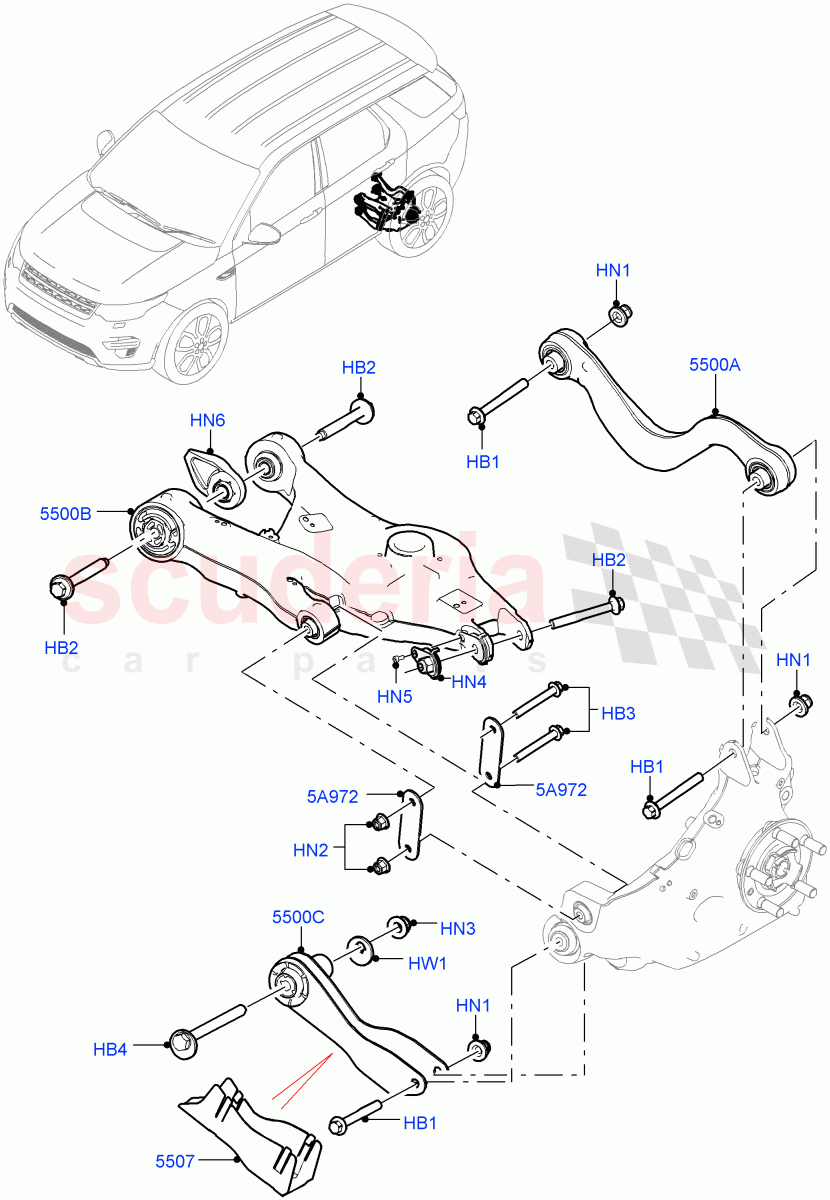

Rear Suspension Arms (Halewood (UK)) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR060782
BOLT - FLANGED HEX.
M12 x 100MM, Upper Arm 		$6.09 4
HB1 LR060782
BOLT - FLANGED HEX.
Lower Arm, M12 x 100MM / To: GH562598 		$6.09 2
HB1 LR072613
BOLT - FLANGED HEX.
Lower Arm, M12 x 100MM / From: GH562599
IN STOCK 		$5.88 2
HB2 LR060781
BOLT - FLANGED HEX.
M14 x 110MM / To: KH999999 		$3.70 6
HB2 LR139259
BOLT - FLANGED HEX.
Hexagonal Head, M14 x 115 / From: LH000001 		$11.28 6
HB3 LR065396
BOLT - FLANGED HEX.
M10 x 70MM 		$3.94 4
HB4 LR065710
BOLT
Adjusting, Hexagonal Head, M14 X 130MM 		$15.35 2
HN1 LR033244
NUT
Hexagonal Head, Lower Arm, M12 		$2.99 2
HN1 LR033244
NUT
Hexagonal Head, M12, Upper Arm 		$2.99 4
HN2 FY110056
NUT
M10
IN STOCK 		$4.29 4
HN3 FY114056
NUT - HEX.
Hexagonal Head, M14
IN STOCK 		$1.26 2
HN4 LR090533
NUT - FLAG TYPE
Flag Type, Hexagonal Head, M14X2.0 		$12.09 2
HN5 LR090556
SCREW
M5X0.8X10 		$0.99 2
HN6 LR140095
NUT - FLAG TYPE
Electric Engine Battery-PHEV / From: LH000001 / To: LH999999 		$4.09 4
HN6 LR145207
NUT - FLAG TYPE
Electric Engine Battery-PHEV / Flag Type / From: MH000001 		$3.78 4
HW1 LR060780
WASHER - ADJUSTING
Adjusting 		$5.42 2
5A972 LR060773
LINK - SUSPENSION ARM
Suspension Arm To Knuckle 		$13.11 4
5500A LR060768
ARM - REAR SUSPENSION
LH Upper / To: FH511118 		$227.53 1
5500A LR060763
ARM - REAR SUSPENSION
RH Upper / To: FH511118 		$227.53 1
5500A LR073525
ARM - REAR SUSPENSION
RH Upper / From: FH511119 / To: FH543634 		$198.93 1
5500A LR073526
ARM - REAR SUSPENSION
LH Upper / From: FH511119 / To: FH543634 		$240.06 1
5500A LR078519
ARM - REAR SUSPENSION
RH Upper / From: FH543635 / To: KH999999
IN STOCK 		$134.63 1
5500A LR078520
ARM - REAR SUSPENSION
LH Upper / From: FH543635 / To: KH999999
IN STOCK 		$134.63 1
5500A LR078519
ARM - REAR SUSPENSION
Less 3rd Row Rear Seat, Less Electric Engine Battery / RH Upper / From: LH000001
IN STOCK 		$134.63 1
5500A LR078520
ARM - REAR SUSPENSION
Less 3rd Row Rear Seat, Less Electric Engine Battery / LH Upper / From: LH000001
IN STOCK 		$134.63 1
5500A LR137509
ARM - REAR SUSPENSION
Less Adaptive Damping, With 3rd Row Double Seat / RH Upper / From: LH000001 		$217.05 1
5500A LR137510
ARM - REAR SUSPENSION
Less Adaptive Damping, With 3rd Row Double Seat / LH Upper / From: LH000001 		$217.05 1
5500B LR060775
ARM - REAR SUSPENSION
LH Lower, Rear / To: FH535143 		$401.96 1
5500B LR060774
ARM - REAR SUSPENSION
Rear, RH Lower / To: FH533971 		$389.03 1
5500B LR076679
ARM - REAR SUSPENSION
LH Lower, Rear / From: FH535144 / To: GH635151 		$541.31 1
5500B LR076678
ARM - REAR SUSPENSION
Rear, RH Lower / From: FH533972 / To: GH635151 		$482.20 1
5500B LR088530
ARM - REAR SUSPENSION
LH Lower, Rear / From: GH635152 / To: HH705952 		$541.31 1
5500B LR088535
M - REAR SUSPENSION
Rear, RH Lower / From: GH635152 / To: HH705952 		$482.20 1
5500B LR098947
ARM - REAR SUSPENSION
Rear, RH Lower / From: HH705953 / To: KH999999
IN STOCK 		$279.88 1
5500B LR098947
ARM - REAR SUSPENSION
Less 3rd Row Rear Seat, Less Electric Engine Battery / Rear, RH Lower / From: LH000001
IN STOCK 		$279.88 1
5500B LR098944
ARM - REAR SUSPENSION
LH Lower, Rear / From: HH705953 / To: KH999999 		$496.76 1
5500B LR098944
ARM - REAR SUSPENSION
Less 3rd Row Rear Seat, Less Electric Engine Battery / LH Lower, Rear / From: LH000001 		$496.76 1
5500B LR137507
ARM - REAR SUSPENSION
Less Adaptive Damping, With 3rd Row Double Seat / Rear, RH Lower / From: LH000001 		$417.49 1
5500B LR137508
ARM - REAR SUSPENSION
Less Adaptive Damping, With 3rd Row Double Seat / LH Lower, Rear / From: LH000001 		$417.49 1
5500C LR068167
ARM - REAR SUSPENSION
(-)"CDN/MEX/USA" / (+) ROW, Front, LH Lower / To: HH670157 		$237.71 1
5500C LR068166
ARM - REAR SUSPENSION
(-)"CDN/MEX/USA" / (+) ROW, Front, RH Lower / To: HH670157 		$201.50 1
5500C LR113740
ARM - REAR SUSPENSION
(+)"CDN/MEX/USA", With Standard Suspension / Front, LH Lower / To: KH826835 		$171.94 1
5500C LR113739
ARM - REAR SUSPENSION
(+)"CDN/MEX/USA", With Standard Suspension / Front, RH Lower / To: KH826835 		$171.94 1
5500C LR097279
ARM - REAR SUSPENSION
(-)"CDN/MEX/USA", With Standard Suspension / (+) ROW, Front, RH Lower / From: HH670158 / To: KH999999 		$230.14 1
5500C LR095330
ARM - REAR SUSPENSION
Heavy Duty Suspension / Front, RH Lower / From: HH670158 / To: KH999999 		$174.31 1
5500C LR097278
ARM - REAR SUSPENSION
(-)"CDN/MEX/USA", With Standard Suspension / (+) ROW, Front, LH Lower / From: HH670158 / To: KH999999 		$230.14 1
5500C LR095329
ARM - REAR SUSPENSION
Heavy Duty Suspension / Front, LH Lower / From: HH670158 / To: KH999999 		$186.65 1
5500C LR124618
ARM - REAR SUSPENSION
Front, LH Lower / From: LH000001 		$191.58 1
5500C LR124617
ARM - REAR SUSPENSION
Front, RH Lower / From: LH000001
IN STOCK 		$191.60 1
5500C LR125868
ARM - REAR SUSPENSION
(+)"CDN/MEX/USA", With Standard Suspension / Front, LH Lower / From: KH826836 / To: KH999999 		$178.16 1
5500C LR125871
ARM - REAR SUSPENSION
(+)"CDN/MEX/USA", With Standard Suspension / Front, RH Lower / From: KH826836 / To: KH999999 		$178.16 1
5507 LR068229
COVER - SUSPENSION ARM 		$27.39 2
