Front Axle Case (Halewood (Uk), Efficient Driveline) ((V) Tokh999999)

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Front Axle Case (Halewood (UK), Efficient Driveline) ((V) TOKH999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR001192 BOLT $0.83 To Order
Photo Part No Description Price (each) Stock
RYG500800 BOLT $0.52 To Order
Photo Part No Description Price (each) Stock
LR051077 NUT $13.19 To Order
Photo Part No Description Price (each) Stock
LR001949 WASHER - DRAIN PLUG $3.61 IN STOCK
Photo Part No Description Price (each) Stock
LR051083 PIPE - CONNECTING $11.59 To Order
LR095326 PIPE - CONNECTING $19.56 To Order
Photo Part No Description Price (each) Stock
LR065709 TUBE - BREATHER $28.06 To Order
LR065708 TUBE - BREATHER $46.41 To Order
LR065707 TUBE - BREATHER $53.38 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR051289 FLANGE - DIFFERENTIAL $277.62 To Order
Photo Part No Description Price (each) Stock
LR051288 SEAL - POWER TRANSFER UNIT $22.64 To Order
Photo Part No Description Price (each) Stock
LR051075 POWER TRANSFER UNIT $2,883.17 To Order
LR066501 POWER TRANSFER UNIT $2,096.84 To Order
Photo Part No Description Price (each) Stock
LR002877 PLUG - FILLER $10.84 To Order
LR076677 PLUG - FILLER $11.36 To Order
Photo Part No Description Price (each) Stock
LR051294 PLUG - DRAIN $11.96 To Order
Photo Part No Description Price (each) Stock
LR068975 HEAT SHIELD - TRANSFER CASE $24.41 To Order
Photo Part No Description Price (each) Stock
LR054809 HEAT SHIELD - TRANSFER CASE $98.29 To Order
Photo Part No Description Price (each) Stock
LR003153 RING - SEALING $17.26 To Order
Photo Part No Description Price (each) Stock
LR003154 RING - SEALING $20.47 IN STOCK
Photo Part No Description Price (each) Stock
LR001950 RING - SEALING $17.30 To Order
Photo Part No Description Price (each) Stock
LR003155 RING - SEALING $33.30 To Order
View All

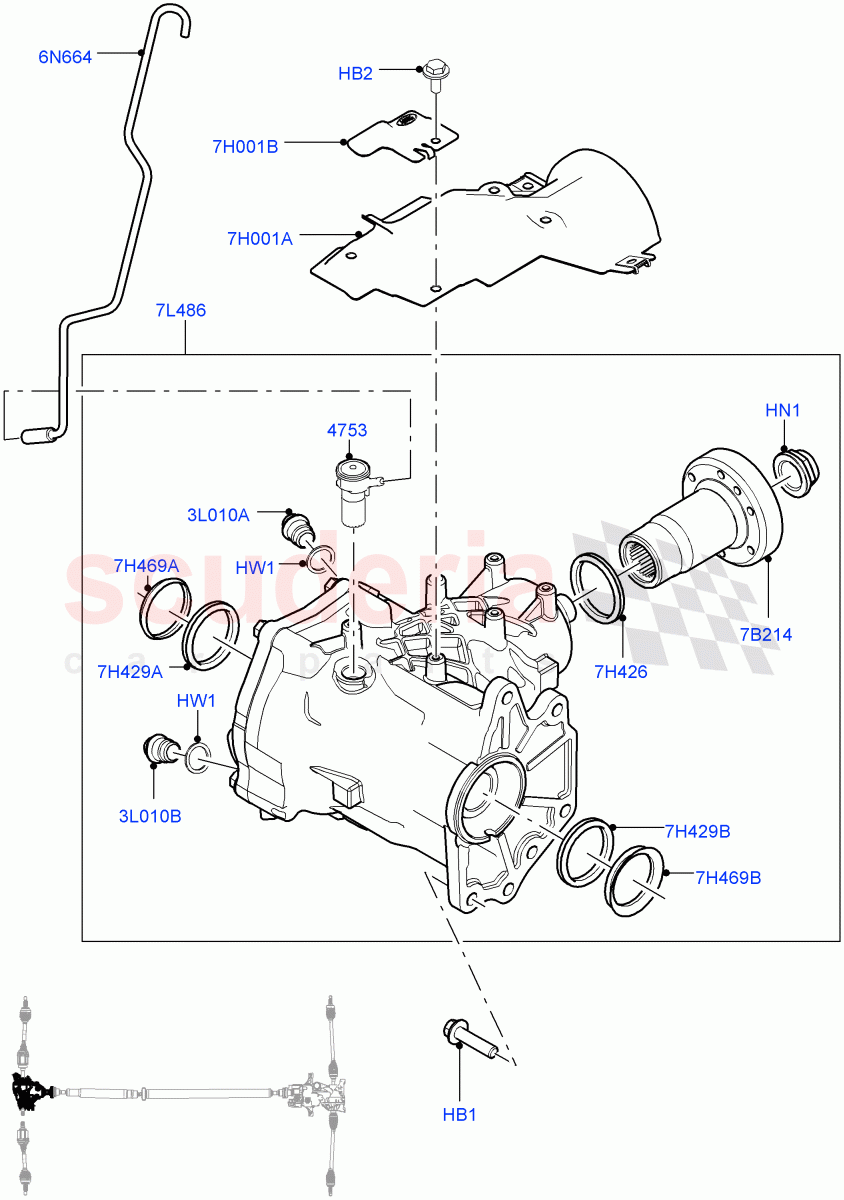

Front Axle Case (Halewood (UK), Efficient Driveline) ((V) TOKH999999) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR001192
BOLT
Hexagonal Head, M10 x 40MM, PTU To Gearbox 		$0.83 6
HB2 RYG500800
BOLT
Heat Shield, Hexagonal Head, M6 X 16MM 		$0.52 4
HN1 LR051077
NUT
PTU Flange 		$13.19 1
HW1 LR001949
WASHER - DRAIN PLUG
18 X 24 X 1.5, Sealing Washer
IN STOCK 		$3.61 2
3L010A LR002877
PLUG - FILLER
Filler Plug / To: FH533161 		$10.84 1
3L010A LR076677
PLUG - FILLER
Filler Plug / From: FH533162 		$11.36 1
3L010B LR051294
PLUG - DRAIN
Drain Plug 		$11.96 1
6N664 LR065709
TUBE - BREATHER
2.2L CR DI 16V Diesel, 9 Speed Auto AWD / Breather Pipe / To: FH515565 		$28.06 1
6N664 LR065708
TUBE - BREATHER
2.2L CR DI 16V Diesel, 6 Speed Manual Trans M66 - AWD / Breather Pipe 		$46.41 1
6N664 LR065707
TUBE - BREATHER
2.0L 16V TIVCT T/C 240PS Petrol / Breather Pipe 		$53.38 1
6N664 LR072224
TUBE
2.0L I4 DSL MID DOHC AJ200 / Breather Pipe / From: GH000001 		$45.73 1
6N664 LR072630
TUBE - BREATHER
2.2L CR DI 16V Diesel, 9 Speed Auto AWD / Breather Pipe / From: FH515566 		$38.69 1
6N664 LR094079
TUBE - BREATHER
2.0L I4 High DOHC AJ200 Petrol / Breather Pipe / From: JH000001 		$38.42 1
7B214 LR051289
FLANGE - DIFFERENTIAL
PTU Flange 		$277.62 1
7H001A LR068975
HEAT SHIELD - TRANSFER CASE
2.0L 16V TIVCT T/C 240PS Petrol / Main 		$24.41 1
7H001B LR054809
HEAT SHIELD - TRANSFER CASE
2.0L 16V TIVCT T/C 240PS Petrol / Additional 		$98.29 1
7H426 LR051288
SEAL - POWER TRANSFER UNIT
For Differential Flange 		$22.64 1
7H429A LR003153
RING - SEALING
RH, Driveshaft, Inner 		$17.26 1
7H429B LR003154
RING - SEALING
LH, Driveshaft, Inner
IN STOCK 		$20.47 1
7H469A LR001950
RING - SEALING
RH, Driveshaft, Outer 		$17.30 1
7H469B LR003155
RING - SEALING
LH, Driveshaft, Outer 		$33.30 1
7L486 LR051075
POWER TRANSFER UNIT
New Part-Please Check For Reman Version 		$2,883.17 1
7L486 LR066501
POWER TRANSFER UNIT
Remanufactured Part 		$2,096.84 1
4753 LR051083
PIPE - CONNECTING
Breather Pipe, Connection / To: HH655127 		$11.59 1
4753 LR095326
PIPE - CONNECTING
Breather Pipe, Connection / From: HH655128 		$19.56 1
