Fuel Tank & Related Parts (2.0L I4 Dsl Mid Dohc Aj200, Itatiaia (Brazil), Less Emission Tank, 2.0L...

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Fuel Tank & Related Parts (2.0L I4 DSL MID DOHC AJ200, Itatiaia (Brazil), Less Emission Tank, 2.0L...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG501020 BOLT $2.00 IN STOCK
Photo Part No Description Price (each) Stock
RYQ500170 RETAINER - RIVET $1.01 To Order
Photo Part No Description Price (each) Stock
LR072675 TANK - FUEL $1,201.85 To Order
Photo Part No Description Price (each) Stock
LR021560 CAP - FUEL TANK FILLER $35.83 To Order
LR053666 CAP - FUEL TANK FILLER $28.16 To Order
Photo Part No Description Price (each) Stock
LR082874 PIPE - FUEL FILLER $155.23 To Order
LR072672 PIPE - FUEL FILLER $148.23 To Order
Photo Part No Description Price (each) Stock
LR061054 HOSE - FILLER PIPE $47.23 To Order
LR061055 HOSE - FILLER PIPE $47.72 To Order
Photo Part No Description Price (each) Stock
LR060352 HOSE - VENT $70.55 To Order
Photo Part No Description Price (each) Stock
LR117476 GASKET $10.61 IN STOCK
Photo Part No Description Price (each) Stock
LR060831 STRAP - FUEL TANK $89.88 To Order
LR094244 STRAP - FUEL TANK $89.88 To Order
LR090627 STRAP - FUEL TANK $224.74 To Order
Photo Part No Description Price (each) Stock
LR063940 STRAP - FUEL TANK $89.88 To Order
LR094242 STRAP - FUEL TANK $89.88 To Order
LR090628 STRAP - FUEL TANK $250.16 To Order
Photo Part No Description Price (each) Stock
LR077096 HEAT SHIELD - PROPSHAFT BEARING $65.87 To Order
Photo Part No Description Price (each) Stock
LR076312 SHIELD - FUEL TANK $194.78 To Order
Photo Part No Description Price (each) Stock
LR036710 RING - RETAINING $30.60 To Order
Photo Part No Description Price (each) Stock
LR079659 MOULDING - FUEL TANK PROTECTION $11.11 To Order
Photo Part No Description Price (each) Stock
LR073691 FUNNEL - FUEL FILLER $6.33 To Order
Photo Part No Description Price (each) Stock
LR014047 RESTRICTOR - FUEL $25.89 To Order
Photo Part No Description Price (each) Stock
LR060825 FOAM PAD - ENERGY ABSORBING $10.32 To Order
Photo Part No Description Price (each) Stock
LR060826 FOAM PAD - ENERGY ABSORBING $10.32 To Order
Photo Part No Description Price (each) Stock
LR025789 FOAM PAD - ENERGY ABSORBING $22.95 To Order
View All

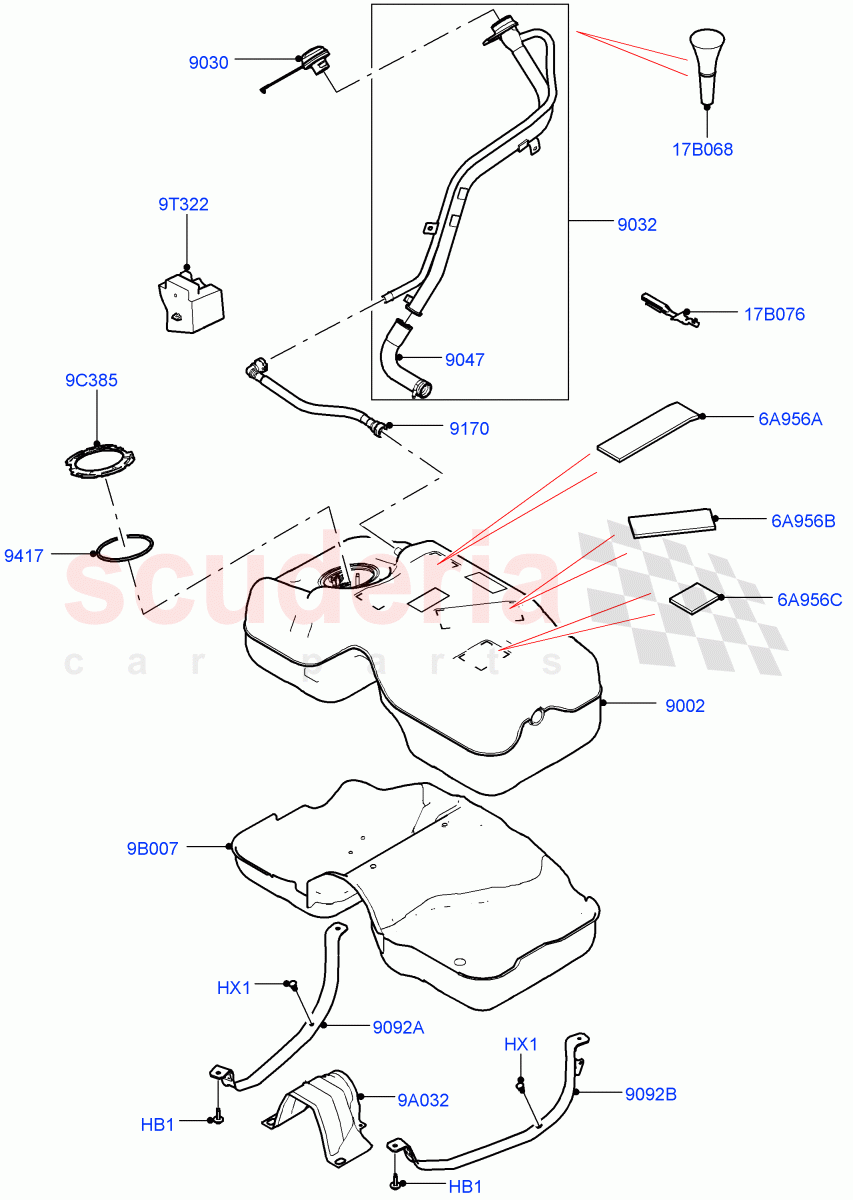

Fuel Tank & Related Parts (2.0L I4 DSL MID DOHC AJ200, Itatiaia (Brazil), Less Emission Tank, 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMGT000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG501020
BOLT
M8 X 30MM / From: GT000001
IN STOCK 		$2.00 4
HX1 RYQ500170
RETAINER - RIVET
Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: GT000001 		$1.01 2
6A956A LR060825
FOAM PAD - ENERGY ABSORBING
From: GT000001 		$10.32 1
6A956B LR060826
FOAM PAD - ENERGY ABSORBING
From: GT000001 		$10.32 1
6A956C LR025789
FOAM PAD - ENERGY ABSORBING
From: GT000001 		$22.95 1
9A032 LR077096
HEAT SHIELD - PROPSHAFT BEARING
From: GT000001 		$65.87 1
9B007 LR076312
SHIELD - FUEL TANK
From: GT000001 		$194.78 1
9C385 LR036710
RING - RETAINING
From: GT000001 		$30.60 1
9T322 LR079659
MOULDING - FUEL TANK PROTECTION
From: GT000001 		$11.11 1
17B068 LR073691
FUNNEL - FUEL FILLER
Fuel Tank Filler Neck With Inhibit / From: GT000001 		$6.33 1
17B076 LR014047
RESTRICTOR - FUEL
From: GT000001 		$25.89 1
9002 LR072675
TANK - FUEL
From: GT000001 		$1,201.85 1
9030 LR021560
CAP - FUEL TANK FILLER
From: GT000001 / To: HT999999 		$35.83 1
9030 LR053666
CAP - FUEL TANK FILLER
From: JT000001 		$28.16 1
9032 LR082874
PIPE - FUEL FILLER
Fuel Tank Filler Neck - Diesel / From: GT000001 		$155.23 1
9032 LR072672
PIPE - FUEL FILLER
Fuel Tank Filler Neck - All Nozzles / From: GT000001 		$148.23 1
9047 LR061054
HOSE - FILLER PIPE
Fuel Tank Filler Neck - DMTL / From: GT000001 		$47.23 1
9047 LR061055
HOSE - FILLER PIPE
Fuel Tank Filler Neck - All Nozzles / From: GT000001 		$47.72 1
9092A LR060831
STRAP - FUEL TANK
Front Disc And Caliper Size 17 / RH / From: GT000001 / To: HT999999 		$89.88 1
9092A LR094244
STRAP - FUEL TANK
RH / From: JT000001 		$89.88 1
9092A LR090627
STRAP - FUEL TANK
Front Disc And Caliper Size 18 / RH / From: HT000001 / To: HT999999 		$224.74 1
9092B LR063940
STRAP - FUEL TANK
Front Disc And Caliper Size 17 / LH / From: GT000001 / To: HT999999 		$89.88 1
9092B LR094242
STRAP - FUEL TANK
LH / From: JT000001 		$89.88 1
9092B LR090628
STRAP - FUEL TANK
Front Disc And Caliper Size 18 / LH / From: HT000001 / To: HT999999 		$250.16 1
9170 LR060352
HOSE - VENT
From: GT000001 		$70.55 1
9417 LR117476
GASKET
O-Ring / From: GT000001
IN STOCK 		$10.61 1
